Features

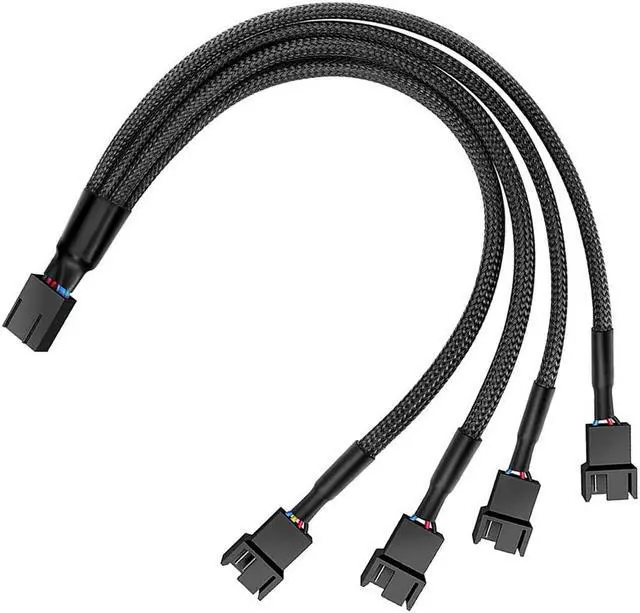

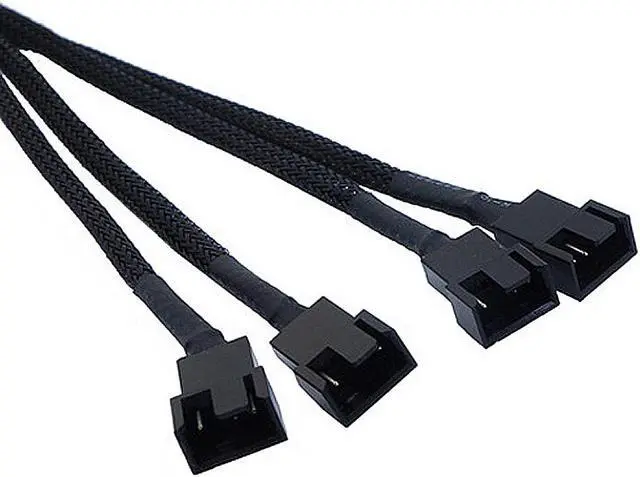

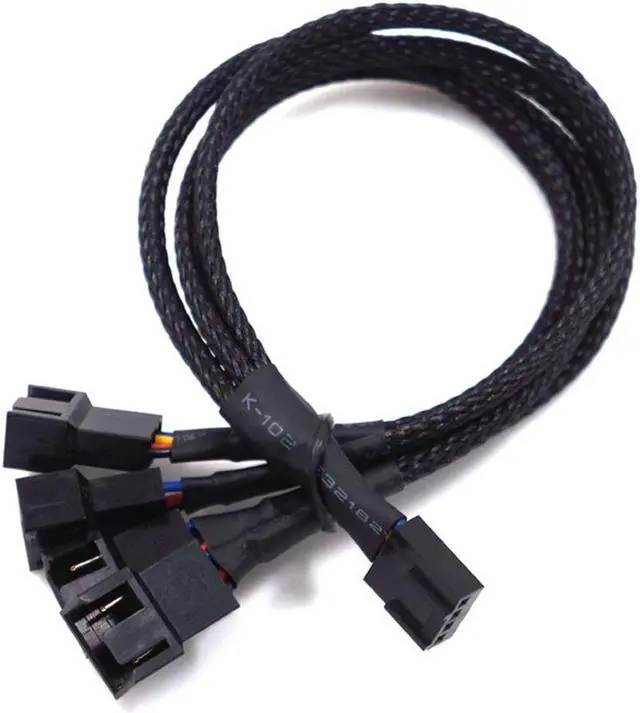

- This TX4 4-pin multi-fan splitter cable connects to your motherboard and controls three PWM fans.
- Since only one RPM signal can be read by one motherboard connector, only one 4 TIPS CONNECTOR of the fan splitter cable carries an RPM signal; thus the motherboard will only read the RPM signal of the PWM device that is connected to full 4-pin connector.
- The other three male connectors are missing the pins of tachometric signal, ensure your fan speed monitor won't bounce all over the place from getting three sense signals. Guarantee motherboard getting an accurate RPM signal.
- Only one of the three fans sends its tach signal (the one with full 4-pin connector) reports its RPM, but the others will still follow the PWM signal.
- Compatible with 4pin PMW fan connector and 3pin fan connector
- Sleeved in a black is enhanced cable management, enclosure to provide a sleeker look that seamlessly integrates into the case's interior
Note:
- Only the fan on 4-pins connector is used for monitoring.
- All connected fans are following the same PWM signa, speed control is the same for all fans when use fan controller software like AI stuite/Xspert FAN and EASY TUNE, etc
- PWM capable connectors must necessarily be 4-pin, but not all 4-pin motherboard connectors implement or enable the PWM signal modulation by default. Please carefully consult your motherboard documentation in this respect.
- 1x4 PWM 4Pin splitter power cable
- 10 inches
- PWM 4pin female header for motherboard CPU_Fan/SYS_Fan connection
- 4 TX4 female headers for fans connection
- Compatible with all 3pin and 4pin fans
- Have a full 4 pin fan connector that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan
- The other headers are 3 pin fan connector, omit the RPM signal pin for tandem fan speeds
- Support PWM function for 4Pin fans
- 2Pin/3Pin fans run in full speed
- Sleeved Black Jacket
- Provide durable long-lasting performance and easy cable management
Specification
| Cable Type | 1x4 PWM 4Pin Power Splitter Cable |
|---|---|
| Connector A | PWM 4pin Female for Motherboard CPU_Fan Header |
| Connector B | PWM 4pin Male - Full 4 Wires for CPU Cooler |
| Connector C | 3x PWM 4pin Male - 3 wires only, missing the pin of tach |
| Cable Length | 10 Inches |
| Power | 12V DC |
| Cable Color | Sleeved Black |
| Package Content | 2 Pieces Splitter Cables |
