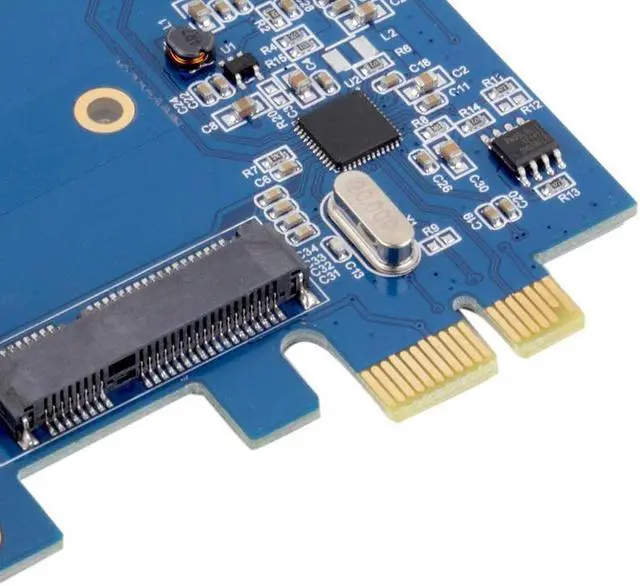

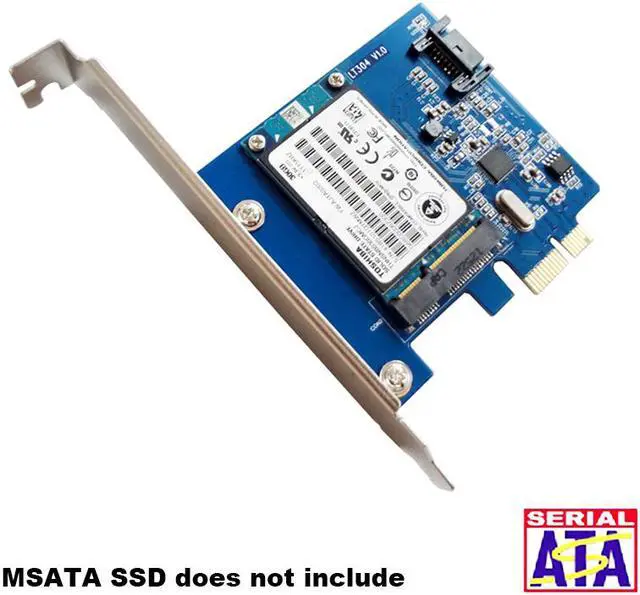

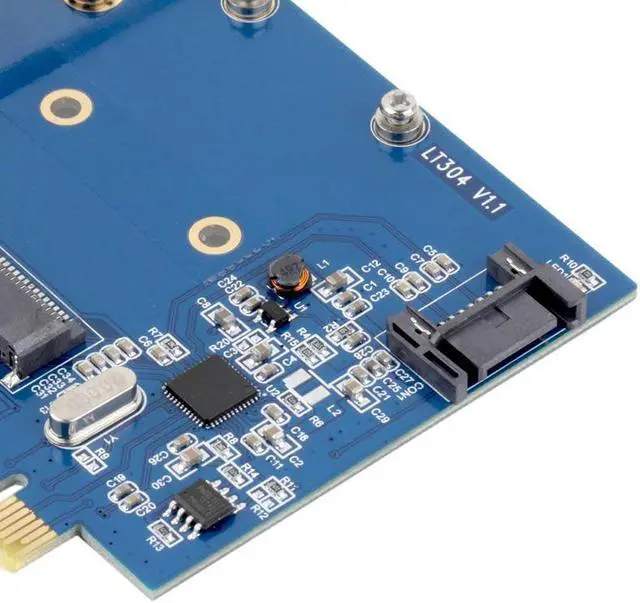

EnLabs PCIe X1 To MSATA SSD & SATA3.0 Combo Expansion Card, ASM1061 Chipset PCI Express Controller Mini SATA SSD Adapter for PC Desktop w/ Standard Profile Bracket
- PCIe X1 to MSATA + SATA III Port
- Simultaneously Connect MSATA and SATA HDD or CD Drive
- Support Mini SATA SSD
- Does not support Mini PCI-E devices
- ASM1061 Chipset
+
+
Overview
Specs
Reviews (2)
Features
Extend SATA 3.0 +mSATA data interfaces, and support more storage devices.
Built with Stable and reliable chipset ASMedia ASM1061.
Compliant for Serial ATA III specification, transfer speed up to 6Gbps, backwards SATA 3Gbps and SATA 1.5G bps
Compliant for Single-Lane (x1) PCI Express specification revision 1.0.
Supports 27mm half-height & 50mm full-height mSATA SATA SSD.
Supports two independent SATA channels.
Supports ATAPI devices: CD-ROM; DVD-ROM; etc.
Supports boot function.
Supports hot swapping.
One 7 pin SATA & one 52 pin mSATA connectors available.
2 screws & 4 holes available for fixing mSATA drive.
Operating System:
Package Content:
1X mSATA & SATA 3.0 Combo PCI-E Card
Specification
PCIe - PCIe-X1, support PCIE X2, X4, X8, X16
Output interface - mSATA + SATA III
OS - Windows10/8/7(32/64?)/ Vista(32/64?)/ XP/2003/2008/linux
Note:
It ONLY supports mSATA SSD.
It DOES NOT supports Mini PCI-E (PATA); 1.8" Micro SATA & Airbook SSD.
Extend SATA 3.0 +mSATA data interfaces, and support more storage devices.
Built with Stable and reliable chipset ASMedia ASM1061.
Compliant for Serial ATA III specification, transfer speed up to 6Gbps, backwards SATA 3Gbps and SATA 1.5G bps
Compliant for Single-Lane (x1) PCI Express specification revision 1.0.
Supports 27mm half-height & 50mm full-height mSATA SATA SSD.
Supports two independent SATA channels.
Supports ATAPI devices: CD-ROM; DVD-ROM; etc.
Supports boot function.
Supports hot swapping.
One 7 pin SATA & one 52 pin mSATA connectors available.
2 screws & 4 holes available for fixing mSATA drive.
Operating System:
Package Content:
1X mSATA & SATA 3.0 Combo PCI-E Card
Specification
PCIe - PCIe-X1, support PCIE X2, X4, X8, X16
Output interface - mSATA + SATA III
OS - Windows10/8/7(32/64?)/ Vista(32/64?)/ XP/2003/2008/linux
Note:
It ONLY supports mSATA SSD.
It DOES NOT supports Mini PCI-E (PATA); 1.8" Micro SATA & Airbook SSD.
