Data Transfer Rates: Up to 12Gb/s SAS 3.0 compliant.

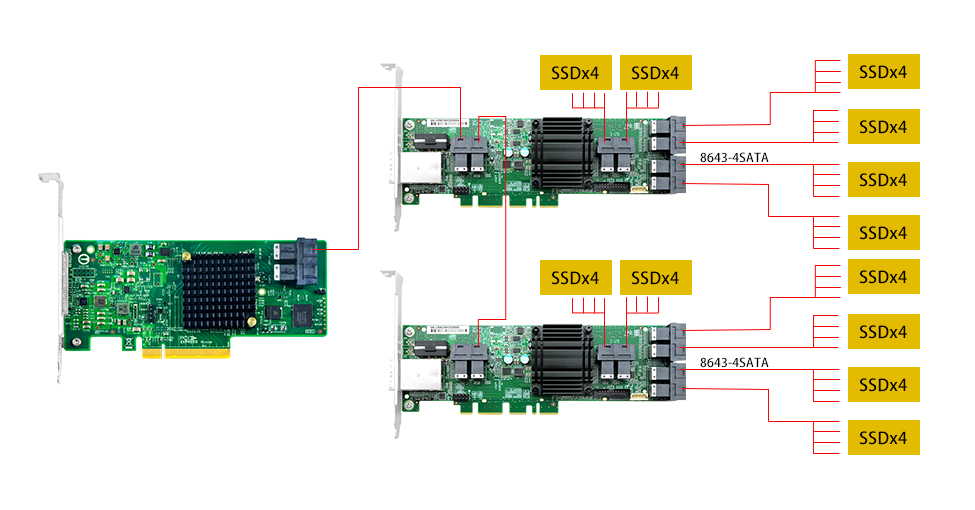

PCI-Express 3.0 interface, supporting up to 1024 devices in non-RAID mode (JBOD mode)
IR Mode, support Raid 0/1/10.
+
+
Overview
Specs
Reviews

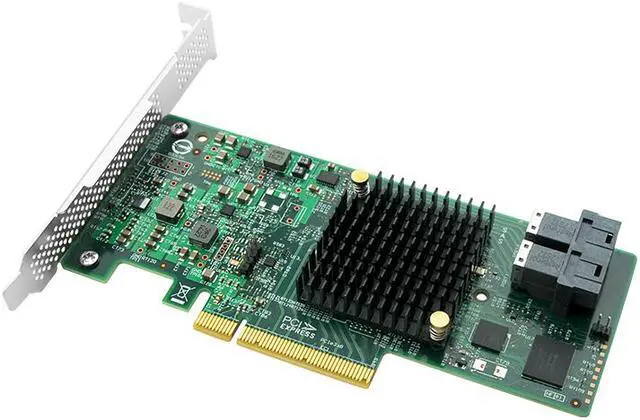

LRSA9C08-8IR provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures. LRSA9C08-8IR Each host bus adapter also supports 8 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The LRSA9C08-8IR supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifications. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane.

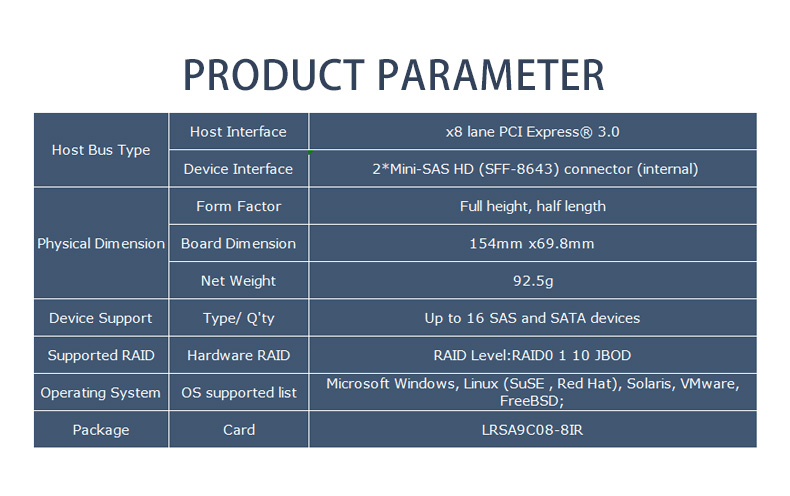

8 internal 12Gb/s SAS+SATA ports 8 lanes, PCI Express 3.0 Support RAID0? 1? 10? JBOD Mini-SAS HD connector Two internal mini-SAS connectors (SFF-8643) 8 internal 12Gb/s SAS and SATA ports. Supports SSDs, HDDs and tape drives

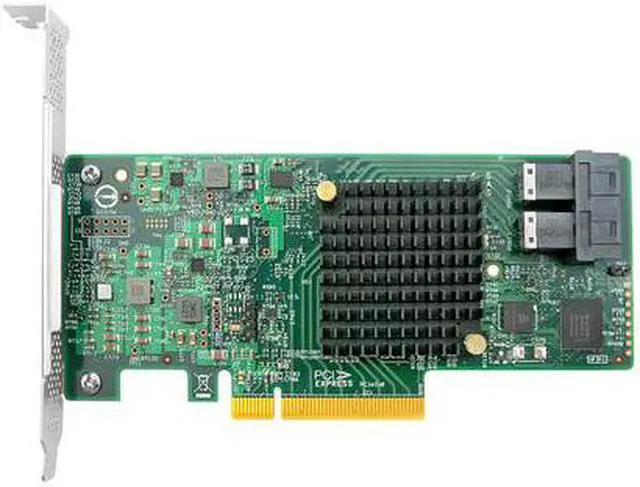

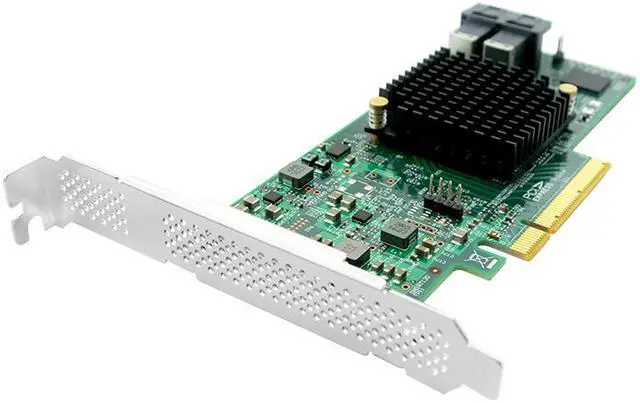

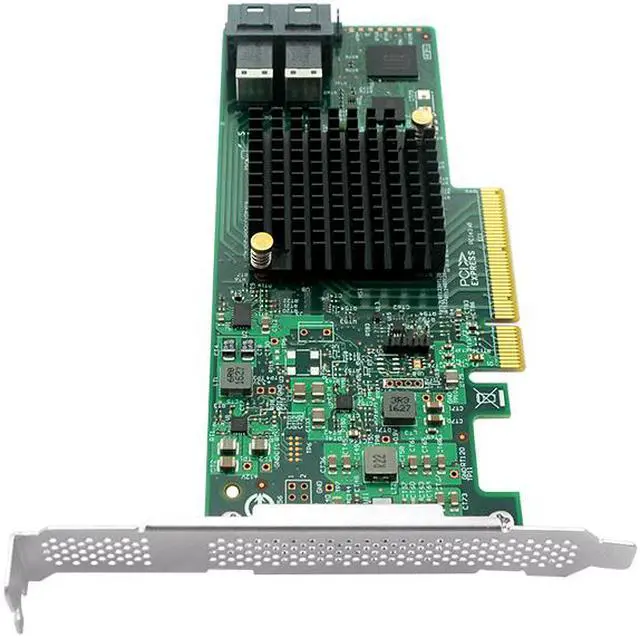

8 Port 12Gb/s SAS 3008 HBA

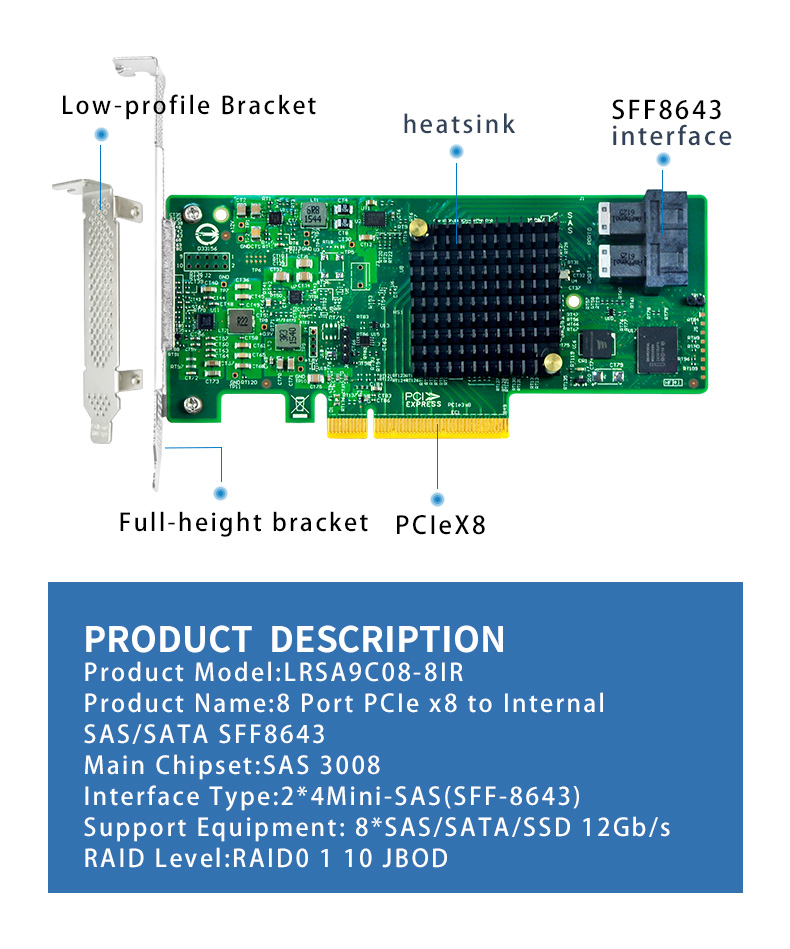

This 12Gb/s SAS HBA provides high-performance internal storage connectivity for servers and workstations. which provides eight lanes of 12Gb/s SAS connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s performance. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that create a universal fit for any server. This 12Gb/s SAS HBA is based on the SAS 3008 controller that integrates the latest enhancements in PCIe 3.0 technology and 12Gb/s SAS technology.
