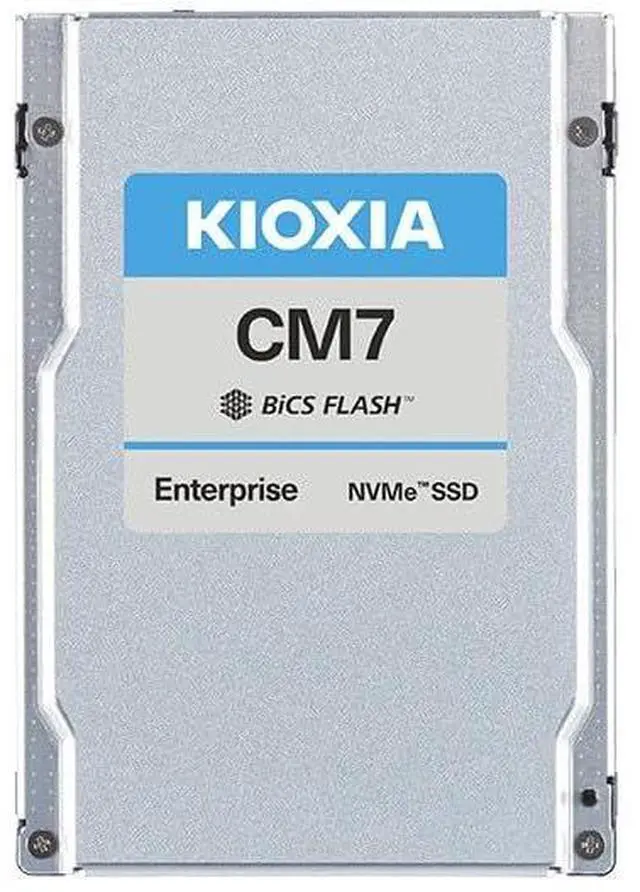

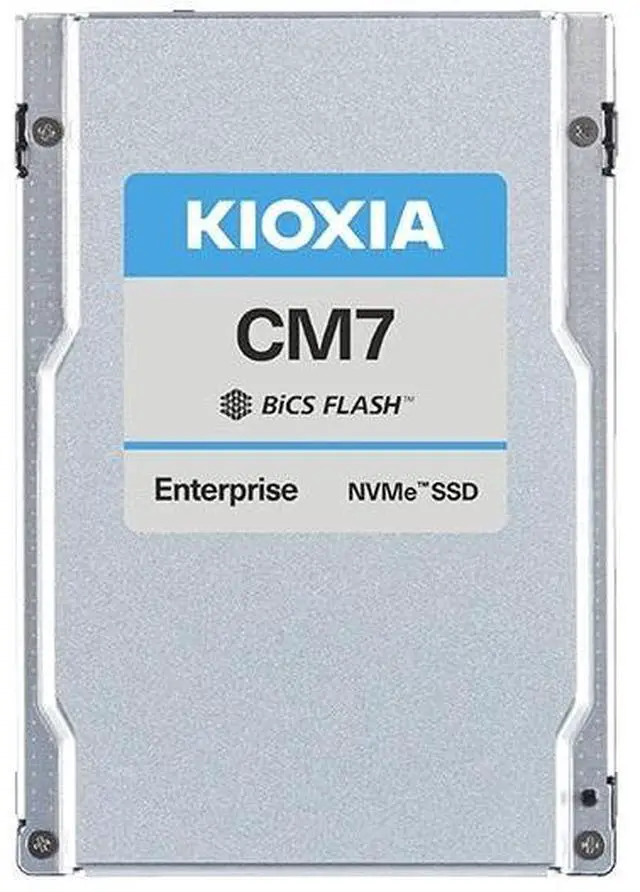

Kioxia 7.68TB 2.5" PCIe5 CM7-R SDF7083GEB SIE 1 DWPD Bare SSD
- Brand KIOXIA,
- Model KCMYXRUG7T68
- SIE Model Number
- KCMYXRUG7T68
- Capacity
- 7,680 GB,
- Basic Specifications
- Form Factor
- 2.5-inch, 15mm thickness,
- lnterface
- PCIe 5.0, NVMeTM 2.0,
- Maximum Interface Speed
- 128 GT/s (PCIe Gen5 single x4, dual x2),
- Flash Memory Type
- BiCS FLASHTM TLC,
- Performance in single port (1x4) mode (Up to),
- Sustained 128 KiB Sequential Read
- 14,000 MB/s,
- Sustained 128 KiB Sequential Write
- 6,750 MB/s,
- Sustained 4 KiB Random Read
- 2,450K IOPS,
- Sustained 4 KiB Random Write
- 300K IOPS,
- Power Requirements
- Supply Voltage
- 12 V +/- 10 %, 3.3 V +/- 15 %,
- Power Consumption (Active)
- 25 W typ.
- Power Consumption (Ready)
- 5 W typ.
- Reliability
- MTTF
- 2,500,000 hours,
- DWPD
- 1,
- Environmental
- Temperature (Operating)
- 0 oC to 73 oC,
- Temperature (Non-operating)
- -40 oC to 85 oC,
- Humidity (Operating)
- 5 % to 95 % R.H.
- Vibration (Operating)
- 21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz ),
- Shock (Operating),
- 9.8 km/s2 ( 1,000 G ) ( 0.5 ms ),
- Item Dimension (L inchxW inchxH inch) 4 x 3 x 1,
+
+
Overview
Specs
Reviews
- Brand KIOXIA,
- Model KCMYXRUG7T68
- SIE Model Number
- KCMYXRUG7T68
- Capacity
- 7,680 GB,
- Basic Specifications
- Form Factor
- 2.5-inch, 15mm thickness,
- lnterface
- PCIe 5.0, NVMeTM 2.0,
- Maximum Interface Speed
- 128 GT/s (PCIe Gen5 single x4, dual x2),
- Flash Memory Type
- BiCS FLASHTM TLC,
- Performance in single port (1x4) mode (Up to),
- Sustained 128 KiB Sequential Read
- 14,000 MB/s,
- Sustained 128 KiB Sequential Write
- 6,750 MB/s,
- Sustained 4 KiB Random Read
- 2,450K IOPS,
- Sustained 4 KiB Random Write
- 300K IOPS,
- Power Requirements
- Supply Voltage
- 12 V +/- 10 %, 3.3 V +/- 15 %,
- Power Consumption (Active)
- 25 W typ.
- Power Consumption (Ready)
- 5 W typ.
- Reliability
- MTTF
- 2,500,000 hours,
- DWPD
- 1,
- Environmental
- Temperature (Operating)
- 0 oC to 73 oC,
- Temperature (Non-operating)
- -40 oC to 85 oC,
- Humidity (Operating)
- 5 % to 95 % R.H.
- Vibration (Operating)
- 21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz ),
- Shock (Operating),
- 9.8 km/s2 ( 1,000 G ) ( 0.5 ms ),
- Item Dimension (L inchxW inchxH inch) 4 x 3 x 1,
- Weight 1 lb,
- Warranty Information 5 Years,
- Enterprise NVMe Read Intensive SSD
- KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
- Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CM7-R Series of enterprise NVMe SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.
