WERLEO Waterproof HD Night Vision 170 Degree Car Rear View Camera Car Reverse Camera Universal Color CMOS Imaging Chip Backup Parking HD Front View Camera

Highlights: New and High Quality 420 TV Lines HD Color Image sensor, effective
Pixels: 720*540 pixels, support NTSC system.

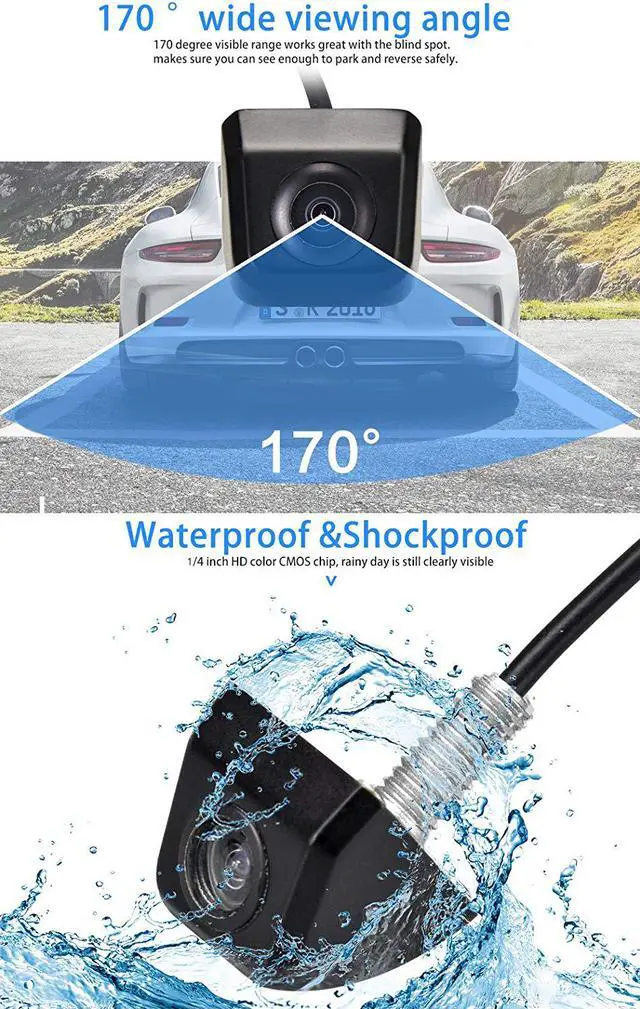

Visual angle lens: 170 degree visible range works great with the blind spot. built in night sensor, clear view even at night. Solid metal housing design. Shockproof /Waterproof and Weather-resistance, fit for all outdoor weather conditions.
Unique Design: You can chose distance scale line or no and can be choosing mirror / non-mirror switcher, it completely depend on your decision. Easy install and small size.

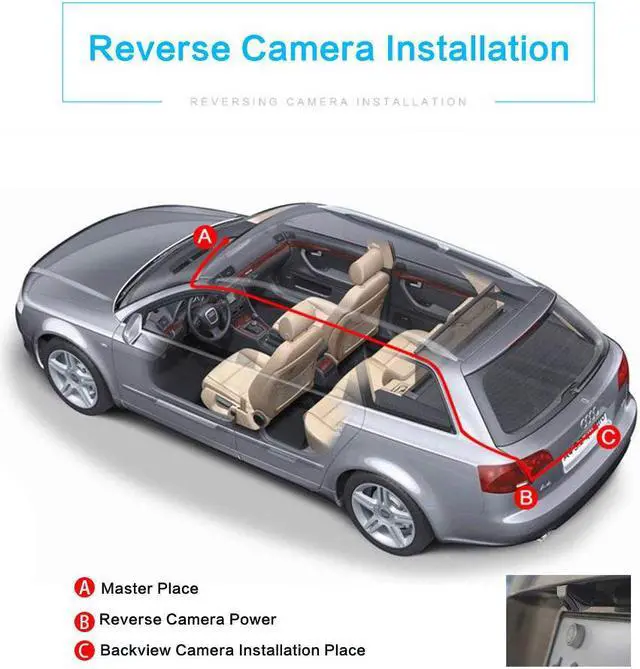

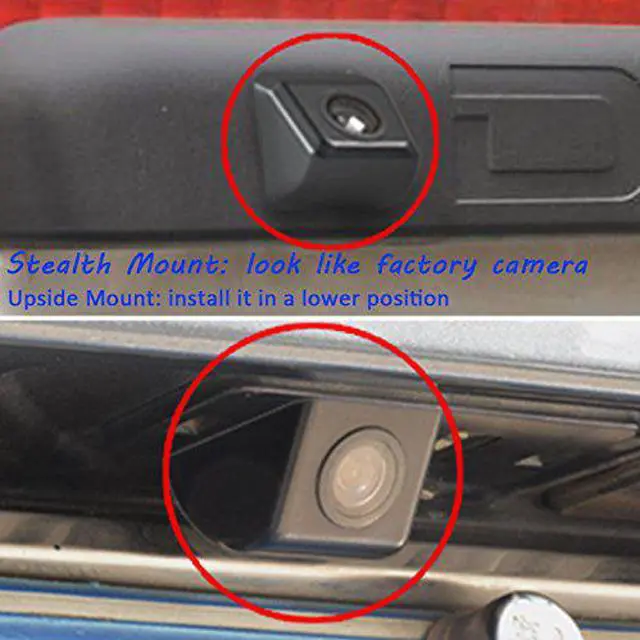

Upside & Stealth Mount: When installing backup camera, suggest that you install it in a lower position. Compatible for most car models including SUV, Pickup, Truck, Mini car, etc. Solid metal housing design & Small size WERLEO aims at bringing high quality products and excellent service to our customers. We believe that only customers have a good shopping experience, we can make better progress. Solid metal housing design Small size backup camera distance scale line White Distance scale Line Switcher Green rear front cam switcher? Unique Design The camera can be used as backup camera, side view camera and front camera, you also can chose distance scale line or no. If you want to switch, the
procedure is as follows: 1. If you need a backup camera without distance scale line, please cut the green wire. 2. If you need a front camera with distance scale line, please cut the white wire. 3. If you need a front camera without distance scale line, please cut the both green and white wire.
Note: this camera is a backup camera with distance scale line as default. Remember to turn off the power before switching
Green Switch Wire: Distance scale Line (Yes/No)
Switcher White Switcher Wire: rear /front (side) camera switcher Correct installation direction
Upside Mount: When installing backup camera, please make sure that the Camera Head is facing to us in positive direction, otherwise, the image will be showed upside-down.
Color: Black
Horizontal Resolution: 420TVL
Power Supply: DC 12V
Operating Temperature: -30? -75?, RH 95% MAX
Storage Temperature: -40? -95?, RH 95%
MAX Daytime Specifications: Image
Sensor: HD Color CMOS Image?
TV System: NTSC
Effective Pixels: 720*540pixels
Scanning System: 2:1 Internet
Minimum Illumination: 0.2L ux/F 1.2 (0Lux with LED)
Lens angle: 170
Degree Waterproof: IP68
White balance: Auto

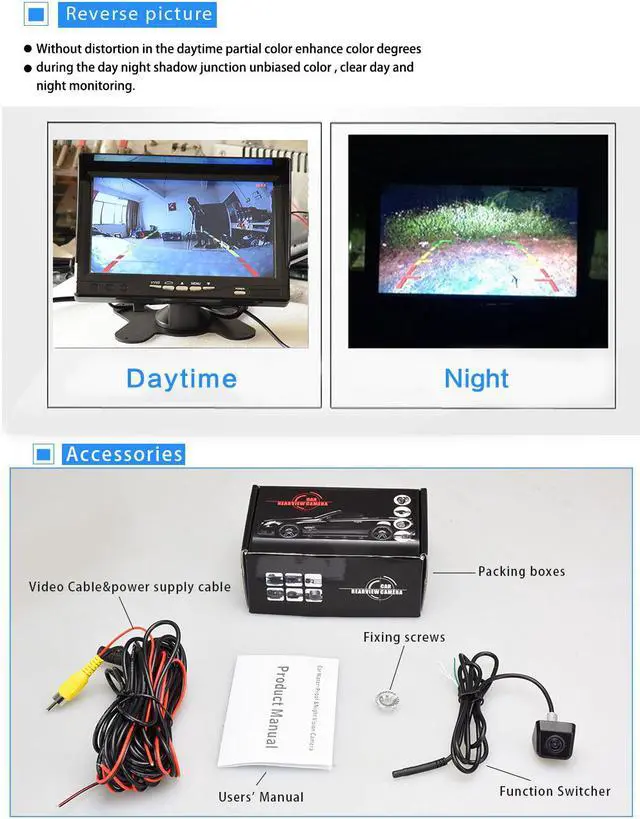

Package Including: 1x rear view Camera (Function Switcher) 1x Power supply Cable 1x Video Cable(19Ft/6M) 1xFixing screws 1x English Users' Manual
