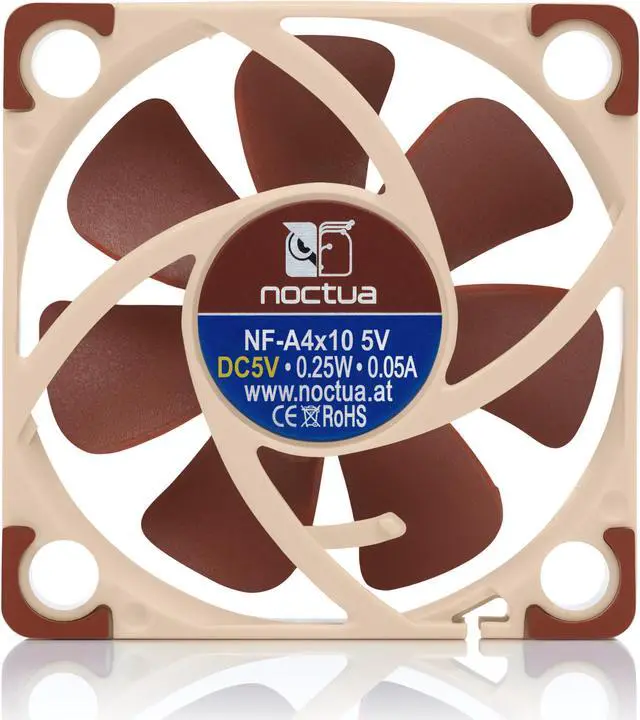

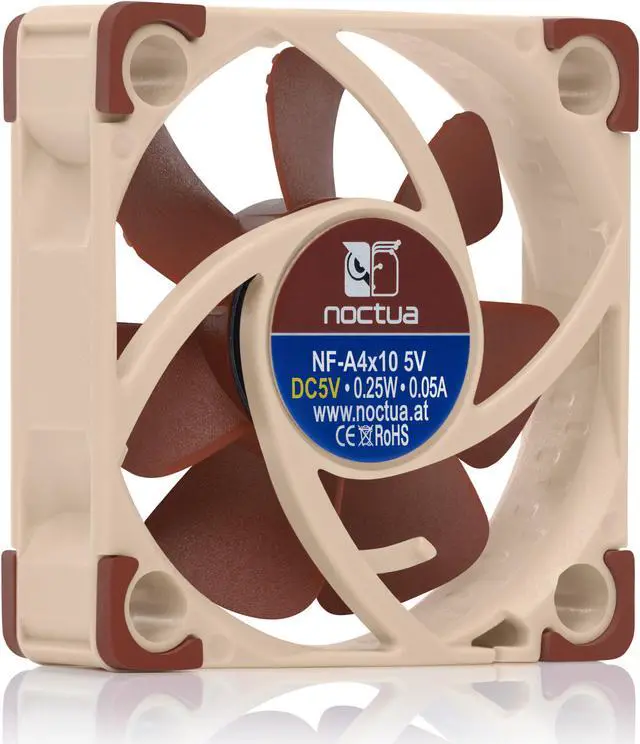

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO standard frame, the NF-A4x10 5V is a dedicated 5V version of Noctua's highly optimised, premium quality quiet 40x10mm fan. Smooth Commutation Drive technology and Noctua's reference class SSO2 bearing ensure superb running smoothness and excellent long-term stability. Topped off with modular cabling and the OmniJoin Adaptor Set, the NF-A4x10 5V is a premium choice for demanding 5V applications.
Many devices such as network or storage solutions use 5 volt 40mm fans. With the same operating voltage and the included OmniJoin adaptor set that makes it compatible with proprietary fan headers, the NF-A4x10 5V is ideal for replacing noisy or broken 5V 40mm fans.

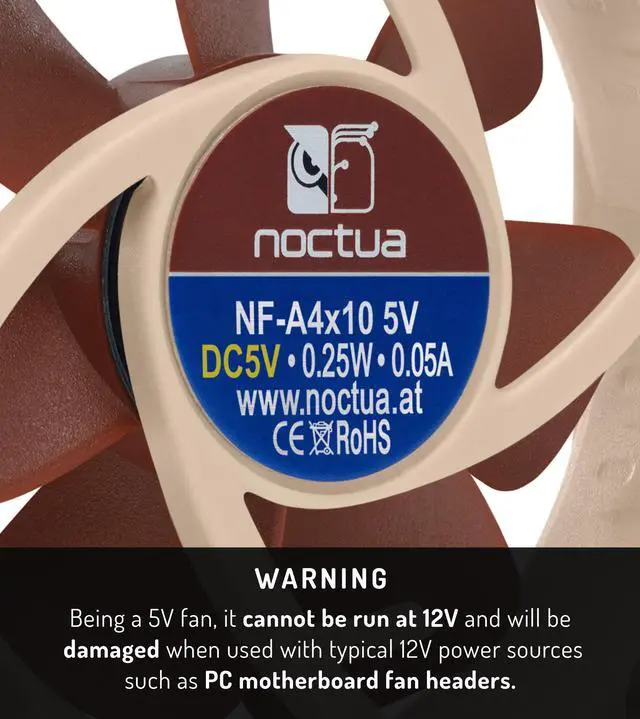

Please Note: Being a 5V fan, the NF-A4x10 5V cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
| The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. |
| The NF-A4x10 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
| Thanks to its streamlined, compact motor design, the NF-A4x10's motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10's superior airflow and pressure performance. |
| With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. |
| Products | ||||
|---|---|---|---|---|
| Connector | 4-pin PWM | 3-pin | 4-pin PWM | 3-pin |
| Voltage | 12V | 12V | 5V | 5V |
| RPM | Max: 5000 / Min: 1000 | 4500 | Max: 5000 / Min: 1000 | 4500 |
| RPM with L.N.A. | 3700 | 3700 | - | - |
| Acoustical Noise | 19,6 dB(A) | 17,9 dB(A) | 19,6 dB(A) | 17,9 dB(A) |
| Acoustical Noise with L.N.A. | 12,9 dB(A) | 12,9 dB(A) | - | - |
| Size | 40x40x10 mm | 40x40x10 mm | 40x40x10 mm | 40x40x10 mm |
