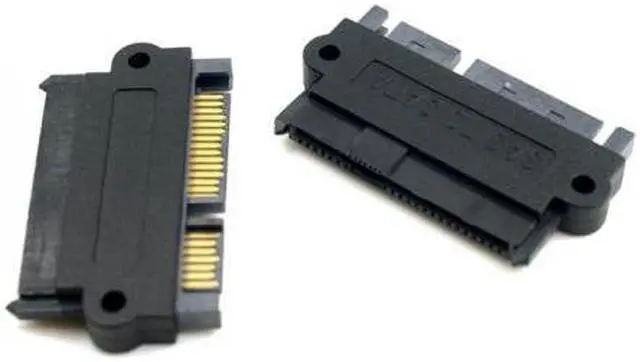

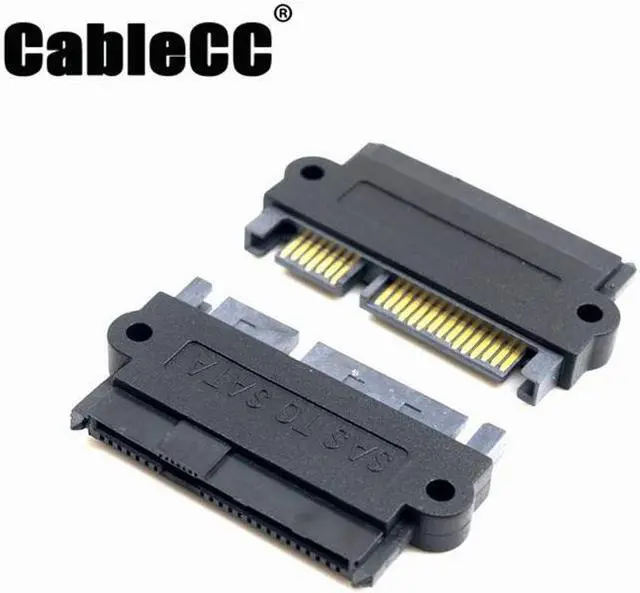

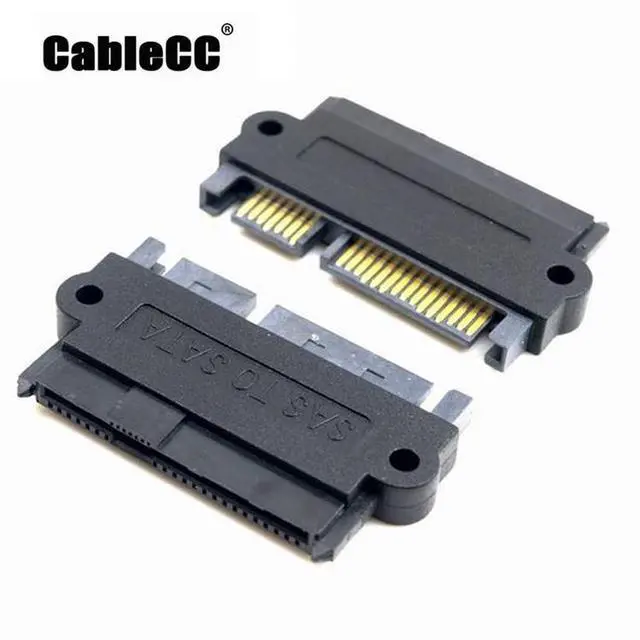

SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port
Note:

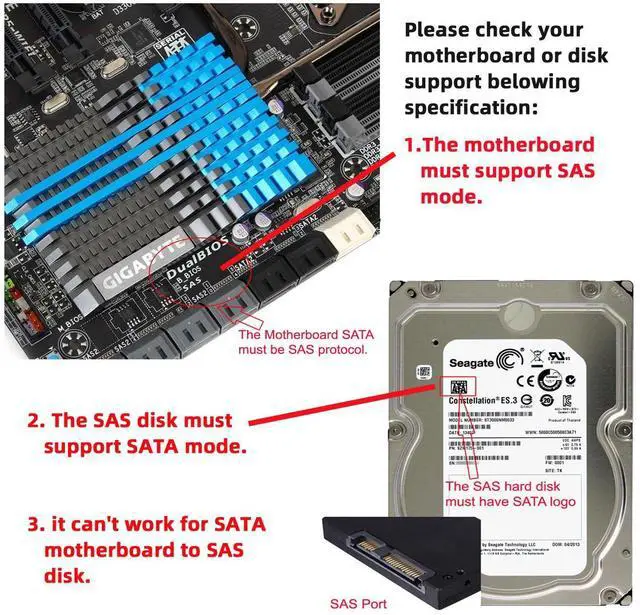

1. It can connect the SATA hard disk to SATA motherboard.
2. It can connect the SAS hard disk to SAS motherboard.
3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipset, Otherwise can't work.)
4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipset, Otherwise can't work.)
This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller).

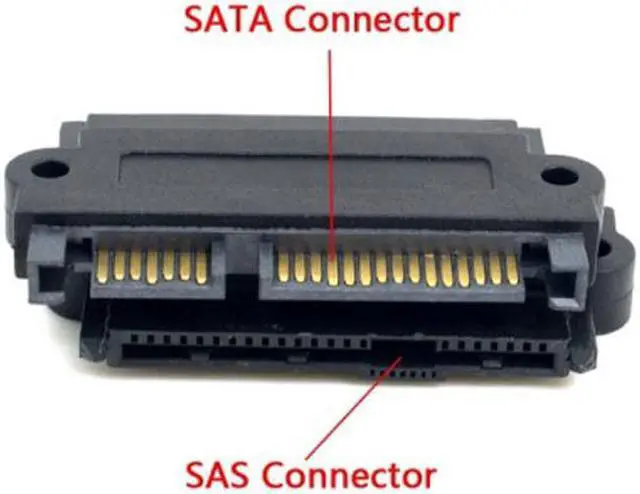

7 Pin SATA Connector to 15 Pin Male Power Connector and SFF-8482 SAS Connector.

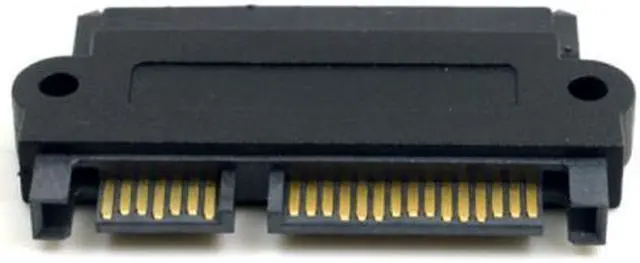

Connector Details: 1 x 7 Pin Serial ATA Male.
Connector Details: 1 x 15Pin Male.

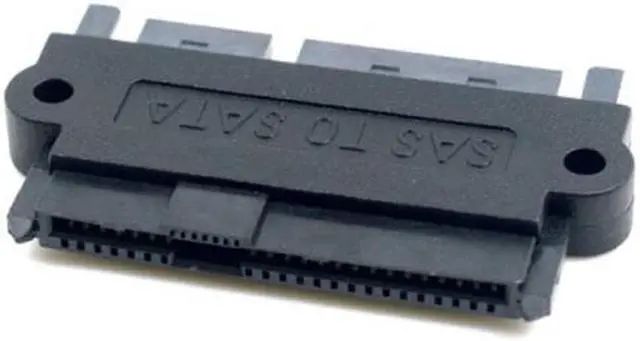

Connector Details: 1 x 22 Pin SAS.
Package:
1 x Adapter
SFF-8482 SAS 22 Pin to 7 Pin + 15 Pin SATA Hard Disk Drive Raid Adapter with 15 Pin Power Port
Note
:
1. It can connect the SATA hard disk to SATA motherboard.
2. It can connect the SAS hard disk to SAS motherboard.
3. It can't connect the SAS hard disk to normal SATA motherboard. (it will be worked if your motherboard has the SAS chipsit, Otherwise can't work. )
4. It can't connect the SATA hard disk to normal SAS motherboard. (it will be worked if your hard disk has the SAS chipsit, Otherwise can't work. )
This SAS adapter to 1x SATA 22pin, enables you to connect a SAS HDD with SFF 8482 port to a SAS compatible SATA controller (hybrid controller).
7 Pin SATA Connector to 15 Pin Male Power Connector and SFF-8482 SAS Connector.
Connector Details
: 1 x 7 Pin Serial ATA Male.
Connector Details
: 1 x 15Pin Male.
Connector Details
: 1 x 22 Pin SAS.
Package
:
1 x Adapter
