Werleo 1080P HDMI Audio Extractor HDMI to HDMI + Optical TOSLINK SPDIF + Analog RCA L/R Stereo Audio Video Splitter Adapter Converter for Apple TV Blu-ray Player Black

Highlights:? 1080P HDMI to HDMI Audio Extractor? HDMI to HDMI + Optical Toslink (SPDIF) + RCA(L/R) Stereo, One HDMI Input Convert to one HDMI + Audio (SPDIF+R/L Audio) Output.

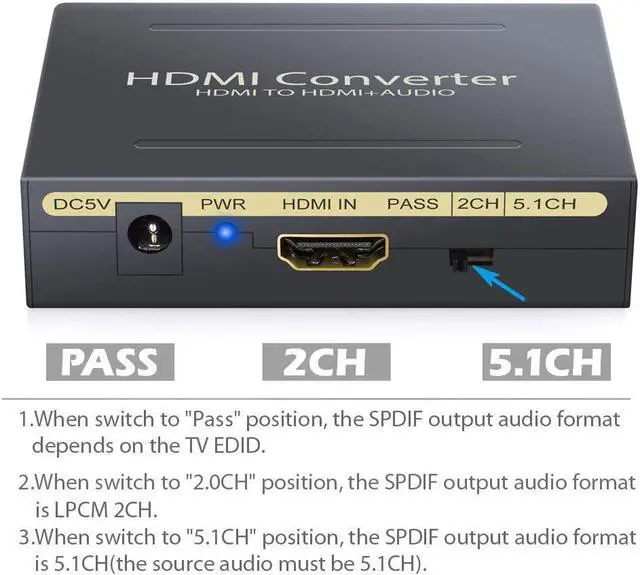

(Powering Advice: using a good quality 5V/1A mobile phone or tablet adapter via the usb power cable to power the converter)? 3 Audio Mode Options? with Pass, 2CH and 5.1CH Three Audio Mode Options, SPDIF Output Supports Pass 2CH PCM, 5.1CH Dolby Digital, DTS (Dolby Digital Plus not Supported); Analog RCA L/R Output Supports 2CH PCM Stereo Audio.? 1080P High HDMI Resolution? Supports HDCP 1.3, Video EDID Pass Through, Up to Full HD 1080P, Compatible with 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i. (Not Compatible with HDCP 1.4 4K and Amazon Fire TV, Fire TV Stick)? Support Video Color Format? Supports 24 bit/Deep Color 30bit, 36bit per Channel (36bit all Channel) Deep Color. Compatible with Blu-ray DVD Player Xbox One SKY HD box
Apple TV PS3 PS4 (Note: 5.1 Channel not Supported on PS3)? Gold-plated Connector? Metal Casing Design, Overall Shielding without Signal Interference, Gold Plated Connector, Enhance HD Video Signals. Plug & Play.
Overview: The HDMI to HDMI+Audio Converter increases the analog stereo audio output on the basis of the HDMI signal transmission. The analog stereo signal can be easily connected to the audio power amplifier. This converter also come with a SPDIF, it can be connected to the stereo audio output for SPDIF function. Full HD 1080P and
3D Support Features:

1. One HDMI input convert to one HDMI + Audio (SPDIF+R/L) output.
2.
One audio support: SPDIF + R/L analog Audio Output.
3.
Input Resolution: Up to 1080P (50/60Hz)/ 720P/ 480P. 4. HDMI to achieve the synchronization of audio signal separation. There are PASS. 5. 2.0CH / 5.1CH there kinds of audio mode options. 6.
LED indication: When source of sink is working, LED relative to is light.

7. Supports Apple TV and various Blu-ray player.

8. No Signal Loss.

9. Need DC5V/ 1A power input (USB Cable Included).
Specification: HDMI
resolution: 24/50/60fs/1080p/1080i/720p/ 576p/576i/480p/480i
Support video color format: 24bit deep color 30bit, 36bit
Audio output: L/R+SPDIF
Max bandwidth: 225MHz
Max baud rate: 6.75G bps
Input/Output TMDS signal: 0.5 ~ 1.5V olts p-p (TTL)
Input/Output DDC signal: 5Volts p-p (TTL)

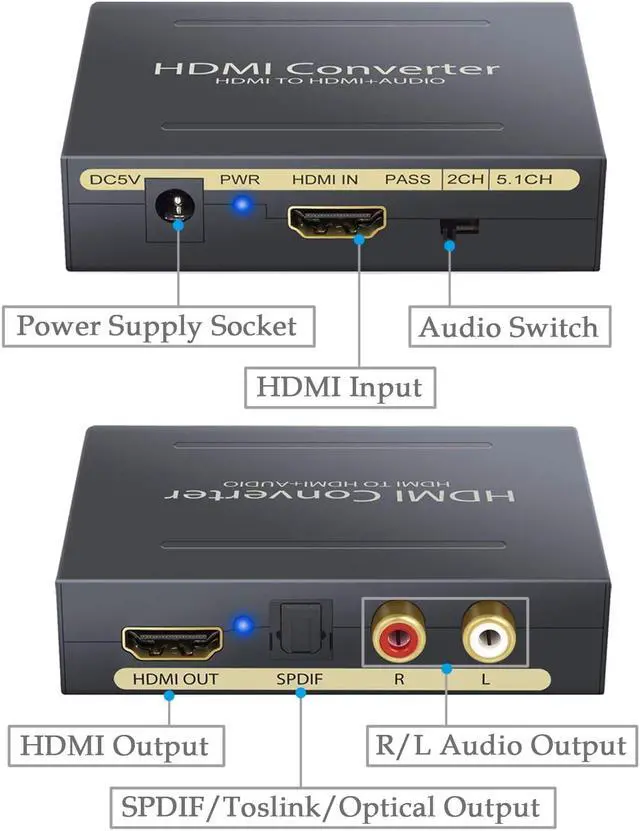

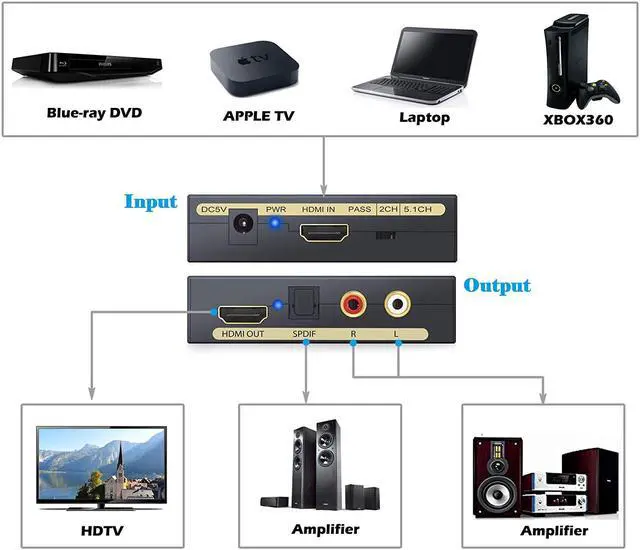

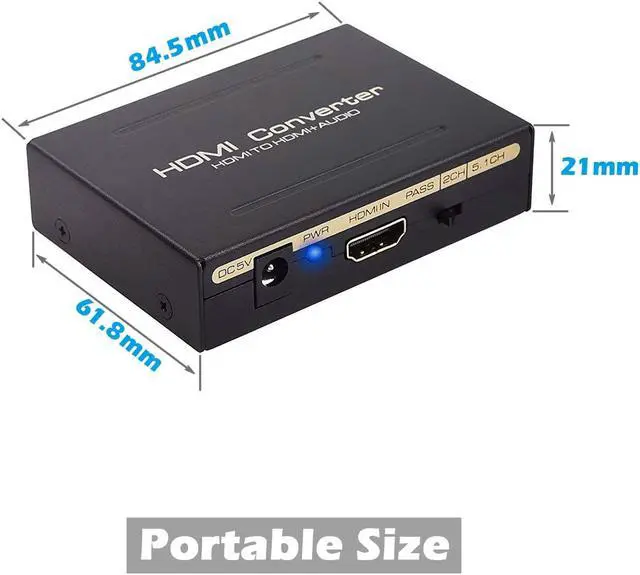

Input cable distance: <15m AWG26 HDMI standard cablecontinuously Output cable distance: <20m AWG26 HDMI standard cable Max working current: 500mA Power adapter format: Input:AC(50/60Hz)100V-240V; Output:DC5V/1A Operating Temperature range: (-15 to +55¡ãC) Operating Humidity Range: 5 to 90%RH(No Condensation) Dimension(LXWXH): 84.5X61.8X21(mm) Weight: 135g Product Details How to Use: 1. HD Source connects to the input HDMI port. 2. HD Display connects to the output HDMI port.

3. Audio equipment connects to the R/L port.

4. The optical cable of Audio equipment connects to the SPDIF port.

5. Plug the 5V DC power adapter.
Package Content: 1 x HDMI Converter 1 x USB
