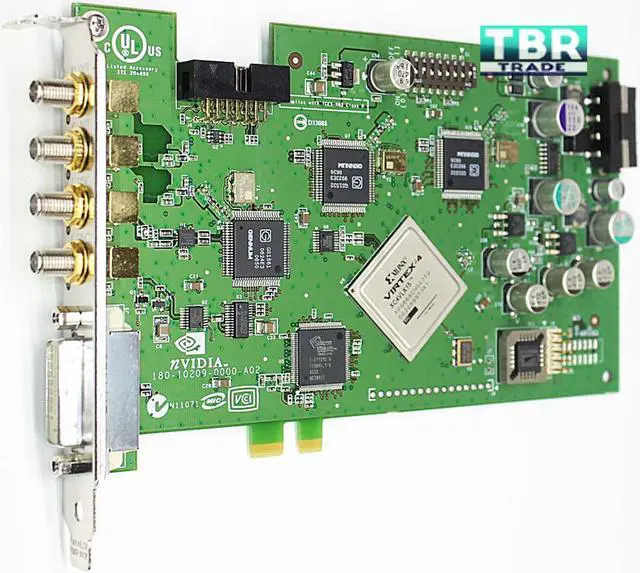

PNY Nvidia Quadro to SDI Option Output Capture Graphics Card VCQFXSDIOPTION

Manufacturer's description: « The Quadro SDI Output card is the ideal solution for digital broadcast professionals, who use various applications such as virtual-sets, sports, and weather news systems to composite live video footage onto virtual backgrounds and send the result to live video for TV broadcast. Quadro SDI Output card also allow film production, post-production, and finishing professionals to preview the results of 3D compositing, editing, and color grading in real time on high definition (HD) broadcast monitors. This graphics-to-video-out solution delivers uncompressed 8-, 10-, or 12-bit SDI from programmable graphics, enabling a direct connection to broadcast monitors, switchers, tape decks, or SDI projectors. » SDI Software Integration Transport Clone and Dualview Modes work on top of existing applications 1 channel fill 8-bit: RGB
4:4: 4
YCrCb 4:2:
2: or
4:4: 4 Extended Mode Integrated into applications using NVIDIA SDI API 2 channel fill or 1 channel fill + 1 channel key 8-, 10-, or
12-bit: RGB
4:4: 4
YCrCb 4:2: 2
or 4:4: 4
2xYCrCb 4:2: 2
+ 4:2: 2
YCrCbA 4:2: 2:4
RGBA 4:4: 4:4 (8 bit only)
