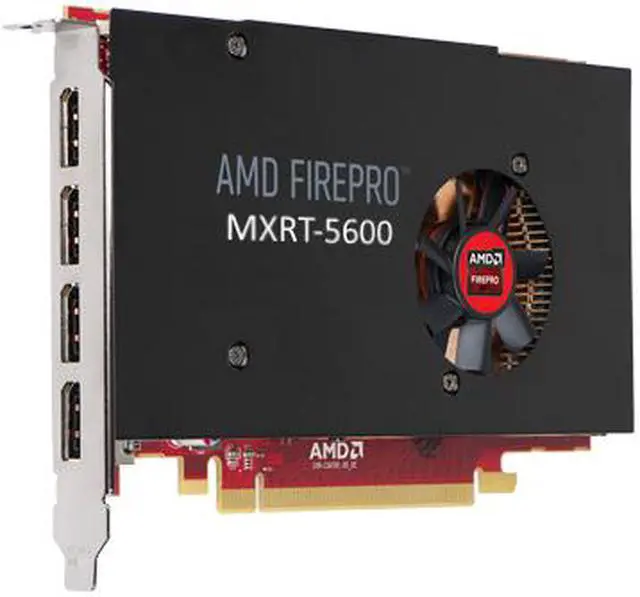

With the high-performance MXRT-5600 display controller, you can drive up to four monitors with just one PCIe slot. This makes it a perfect match for PACS workstations combining two diagnostic displays with additional displays for patient lists or 3D viewing applications. The MXRT-5600 is compatible with the DisplayPort interface standard, which assures easy installation and ultra-fast and reliable data transfers.
Environmental Parameters
Max Operating Temperature:
113 °F
Min Operating Temperature:
32 °F
Header
Brand:
Barco
Compatibility:
PC
Manufacturer:
Barco
Model:
MXRT-5600
Packaged Quantity:
1
Product Line:
Barco
Miscellaneous
Color Category:
Black
Compliant Standards:
BMSI , CISPR 22 , CISPR 24 , CSA C22.2 , EN 55022 Limit B , EN 55024 , FCC Part 15 B , IEC60950-1 , RoHS , UL 60950-1 , VCCI
System Requirements
Min Operating System:
Microsoft Windows 7 (32/64 bits) , Windows 10 (64-bit) , Windows 8.1 64-bit Edition
Video Output
API Supported:
DirectX 11.2 , OpenCL 2.0 , OpenGL 4.4
Graphics Processor Manufacturer:
AMD
Interface Type:
PCI Express 3.0 x16
Max Monitors Supported:
4
Output Ports (for SD):
4 x DisplayPort
Supported Video Signal:
DisplayPort
Type:
Graphics card
Dimensions & Weight
Depth:
7.2 in
Height:
4.4 in
Interfaces
Type:
DisplayPort
Power Device
Power Consumption Operational:
75 Watt
Video Memory
Bandwidth:
96 GBps
Bus Width:
128-bit
Installed Size:
4 GB
Technology:
GDDR5 SDRAM
