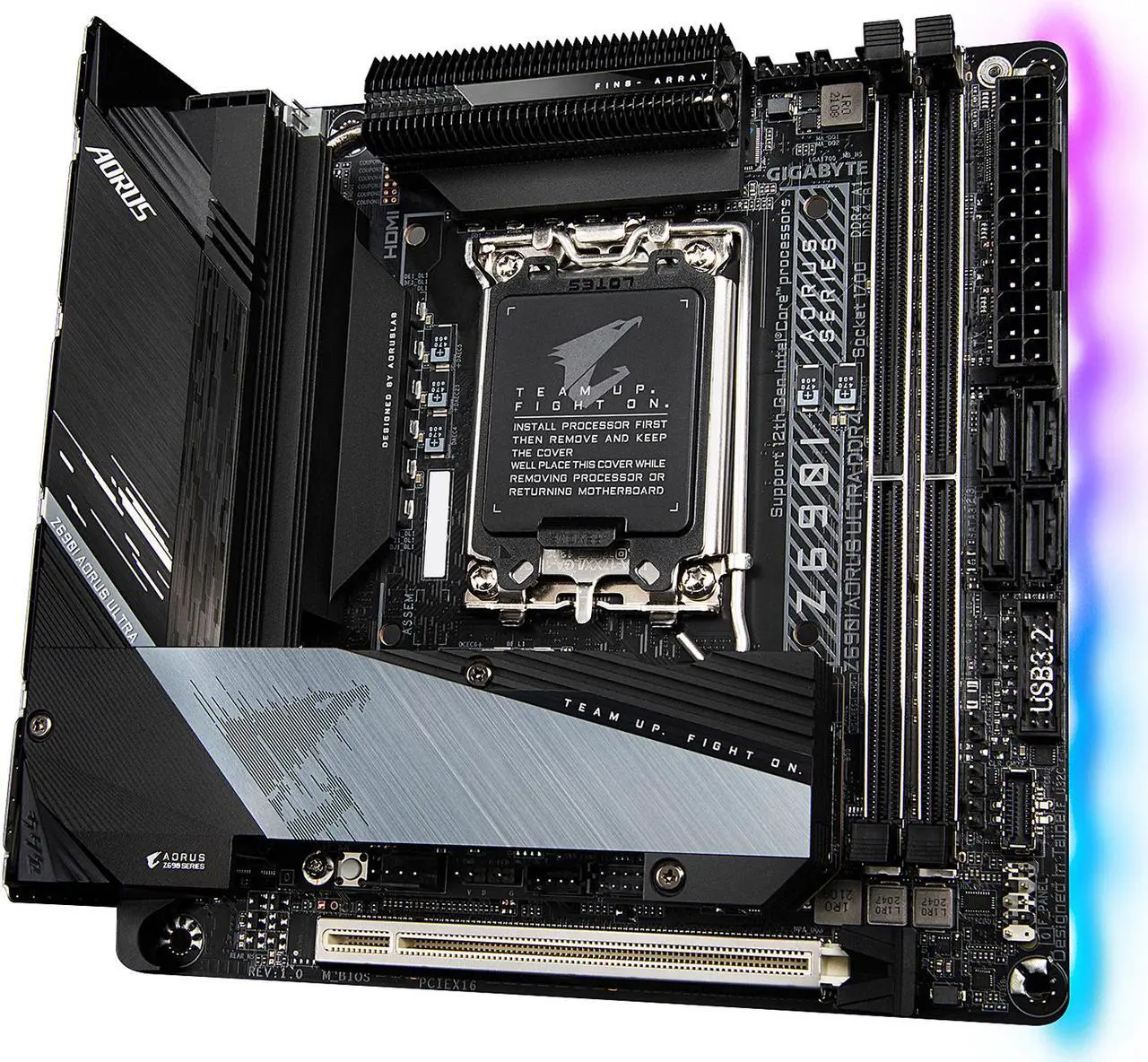

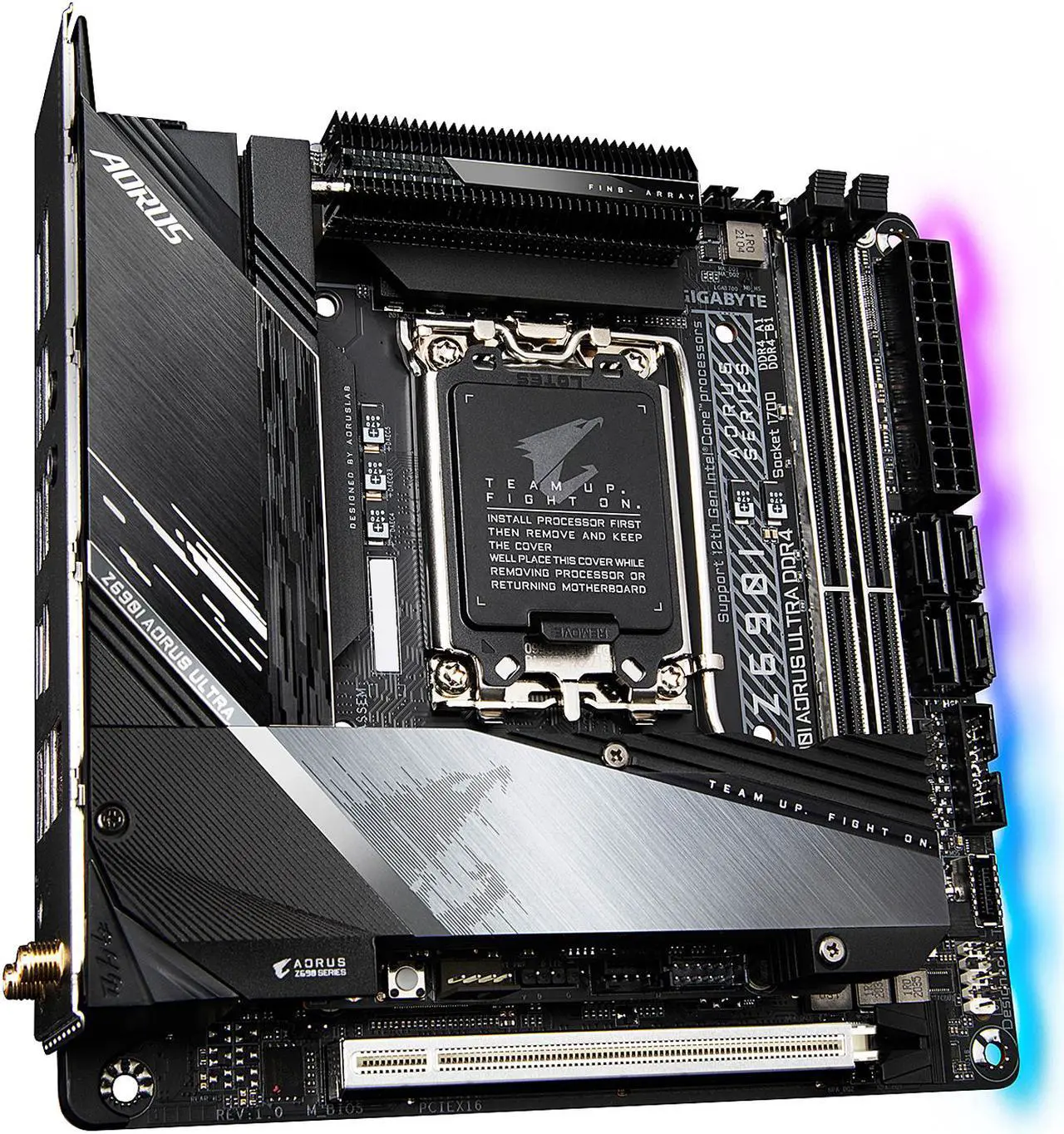

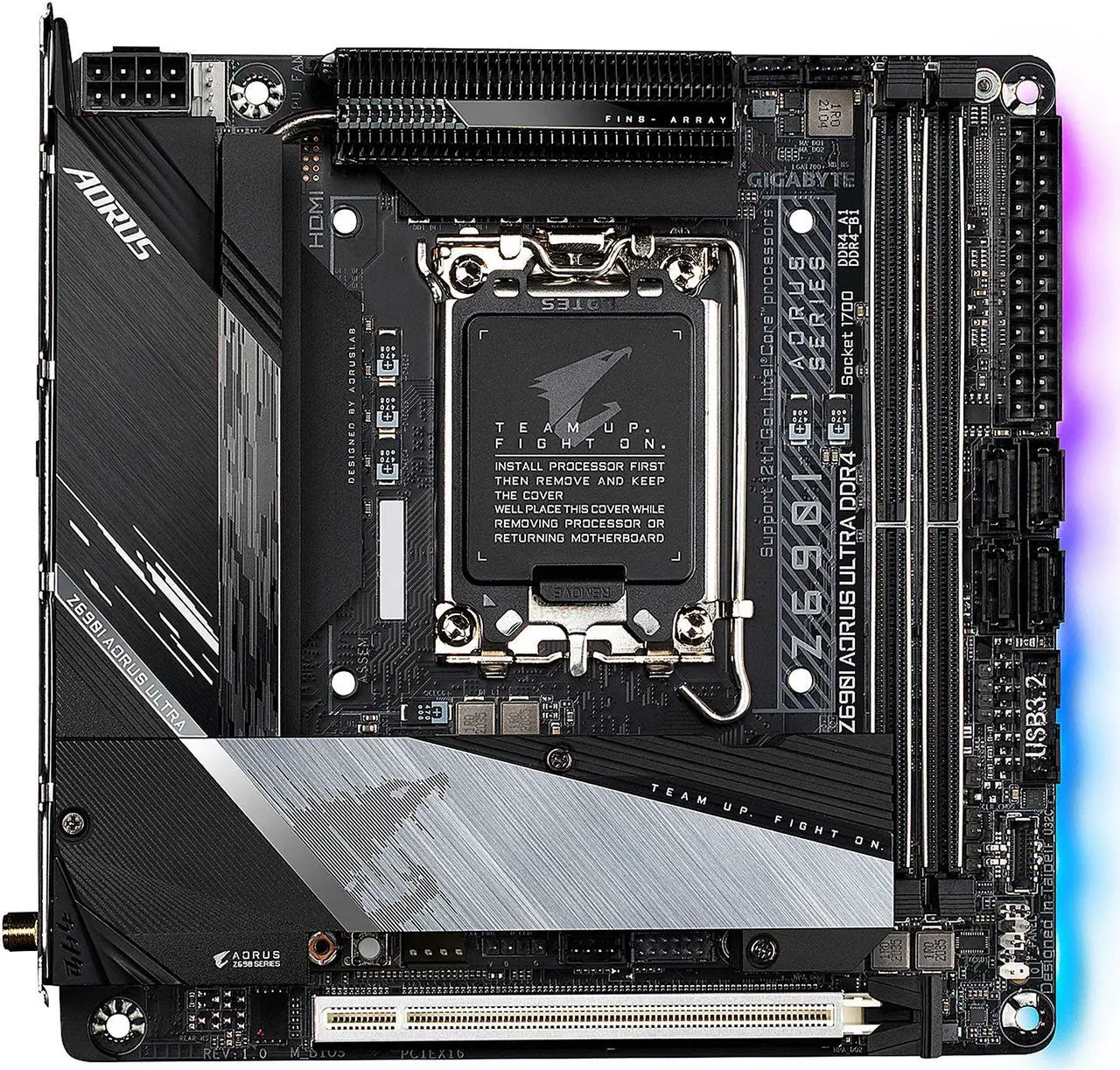

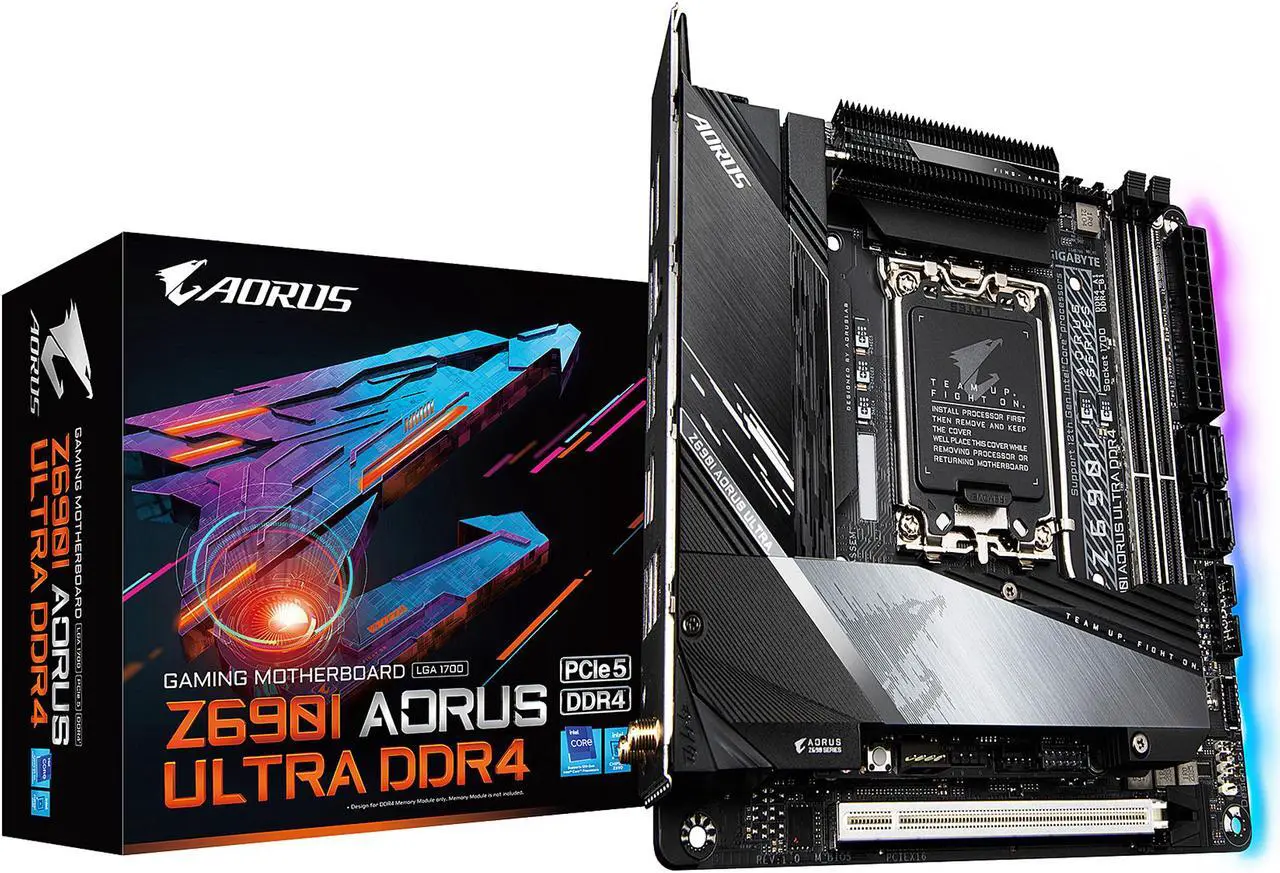

GIGABYTE Z690I AORUS ULTRA DDR4 LGA 1700 Intel Z690 Mini-ITX Motherboard with DDR4, Dual M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, Intel 2.5 GbE LAN

(55)(13) Write a Review

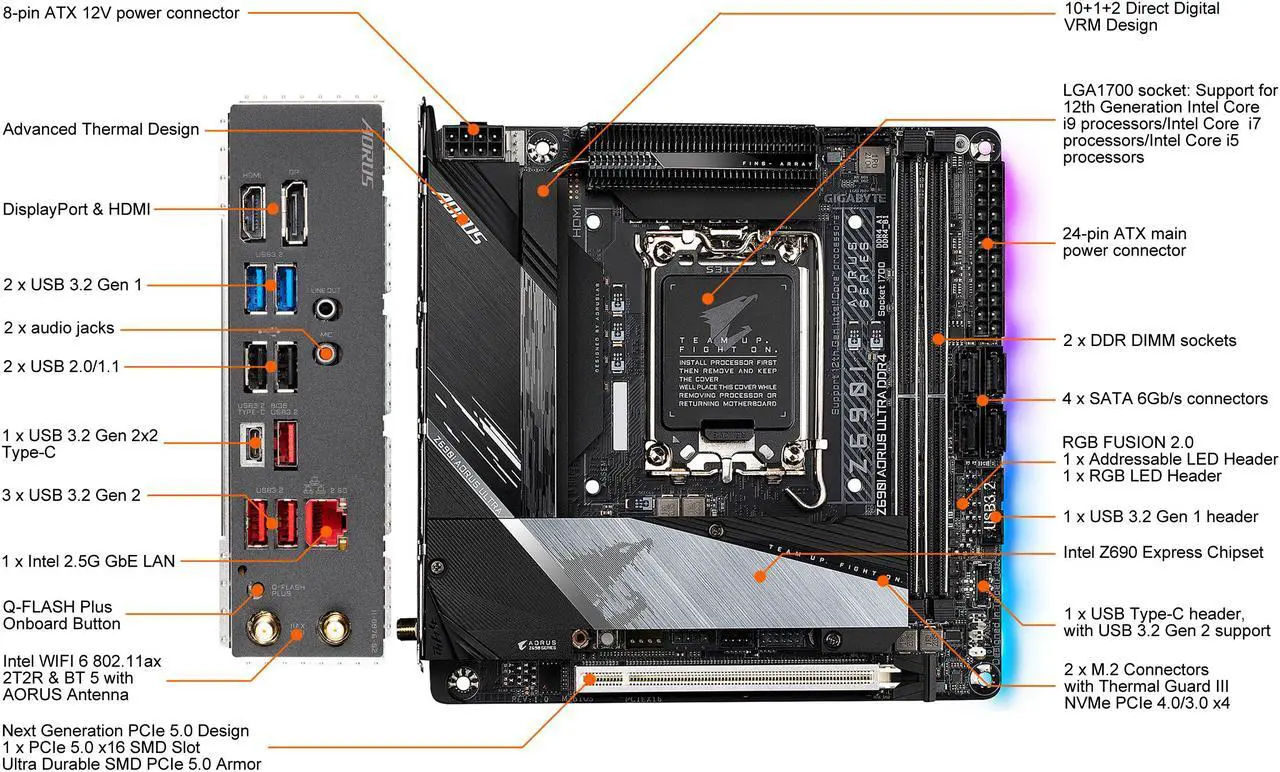

  • Intel Z690
  • Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
  • DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4
  • Commanding Power Design: 10+2+1 Phases Direct VRM Design with 105A Power Stage
  • Cutting-Edge Thermal Design: Advanced Thermal Solution with Fins Array II and Thermal Guards III
  • Next Gen Connectivity: PCIe 5.0, Dual NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
  • Fast Networking: WiFi 6 802.11ax, Intel 2.5GbE LAN
  • Dynamic Audio: AMP-UP Audio with ALC4080 and WIMA
  • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
  • Dedicated LGA1700 mounting bracket is required
Specs
Reviews (55)

Learn more about the GIGABYTE Z690I AORUS ULTRA DDR4

Model
Brand GIGABYTE
Series AORUS
Model Z690I AORUS ULTRA DDR4
Supported CPU
CPU Socket Type LGA 1700

* Dedicated LGA1700 mounting bracket is required.
CPU Type Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipsets
Chipset Intel Z690
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 5333(OC) / DDR4 5133(OC)/DDR4 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Intel Optane Ready Yes

* System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC4080
Audio Channels 2 Channels
Onboard LAN
LAN Chipset Intel 2.5GbE LAN chip
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6 AX201
WIFI a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2
Rear Panel Ports

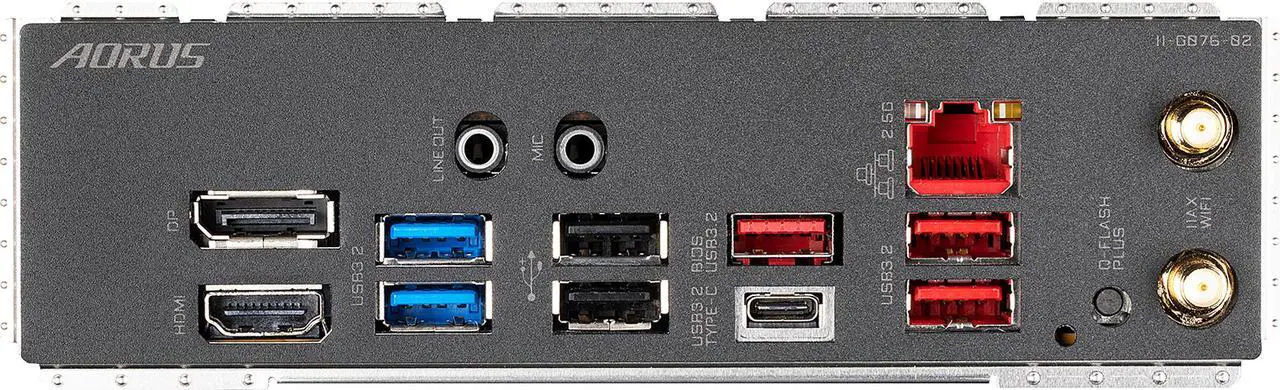

Back I/O Ports 2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x external power connector**
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers(SYS_FAN1/SYS_FAN2**)
1 x addressable LED strip header**
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x reset button**
1 x reset jumper
1 x Clear CMOS jumper

* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
** The connector is on the front of GC-Z690I BTB PLUG.
Software Feature
Windows 11 Supported
Physical Spec
Form Factor Mini ITX
LED Lighting RGB

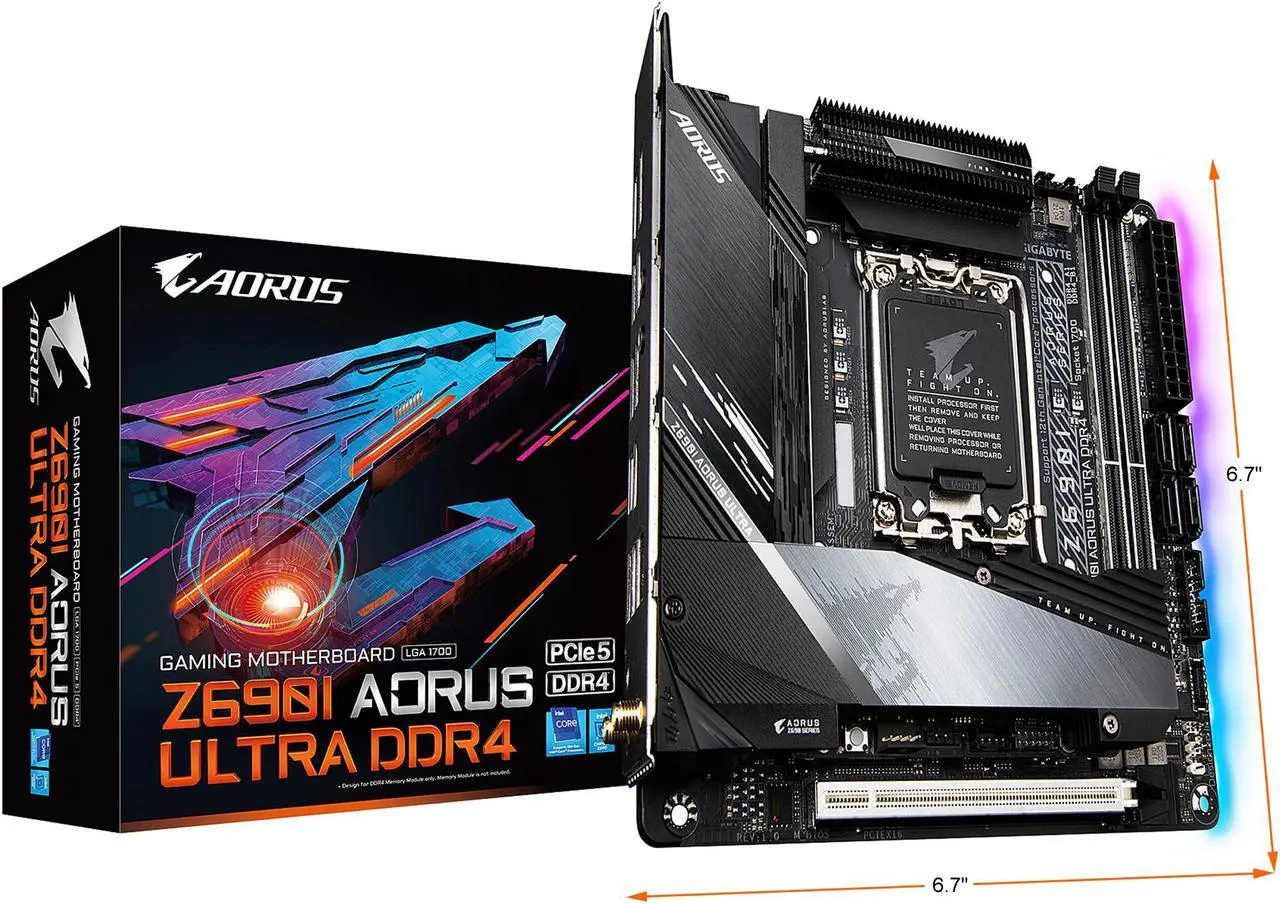

Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
Additional Information
Date First Available October 25, 2021
