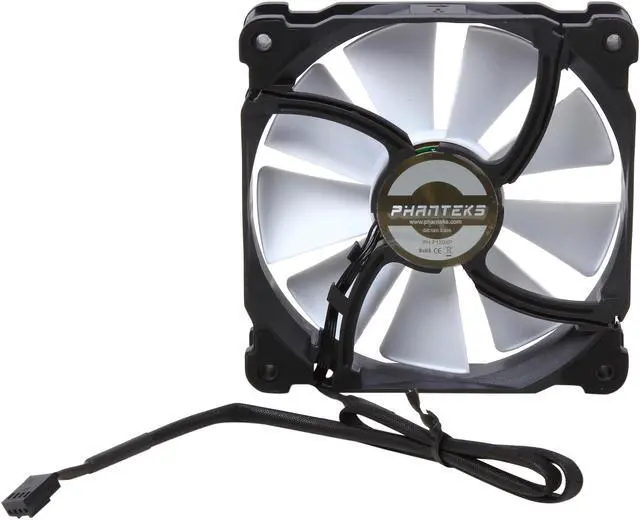

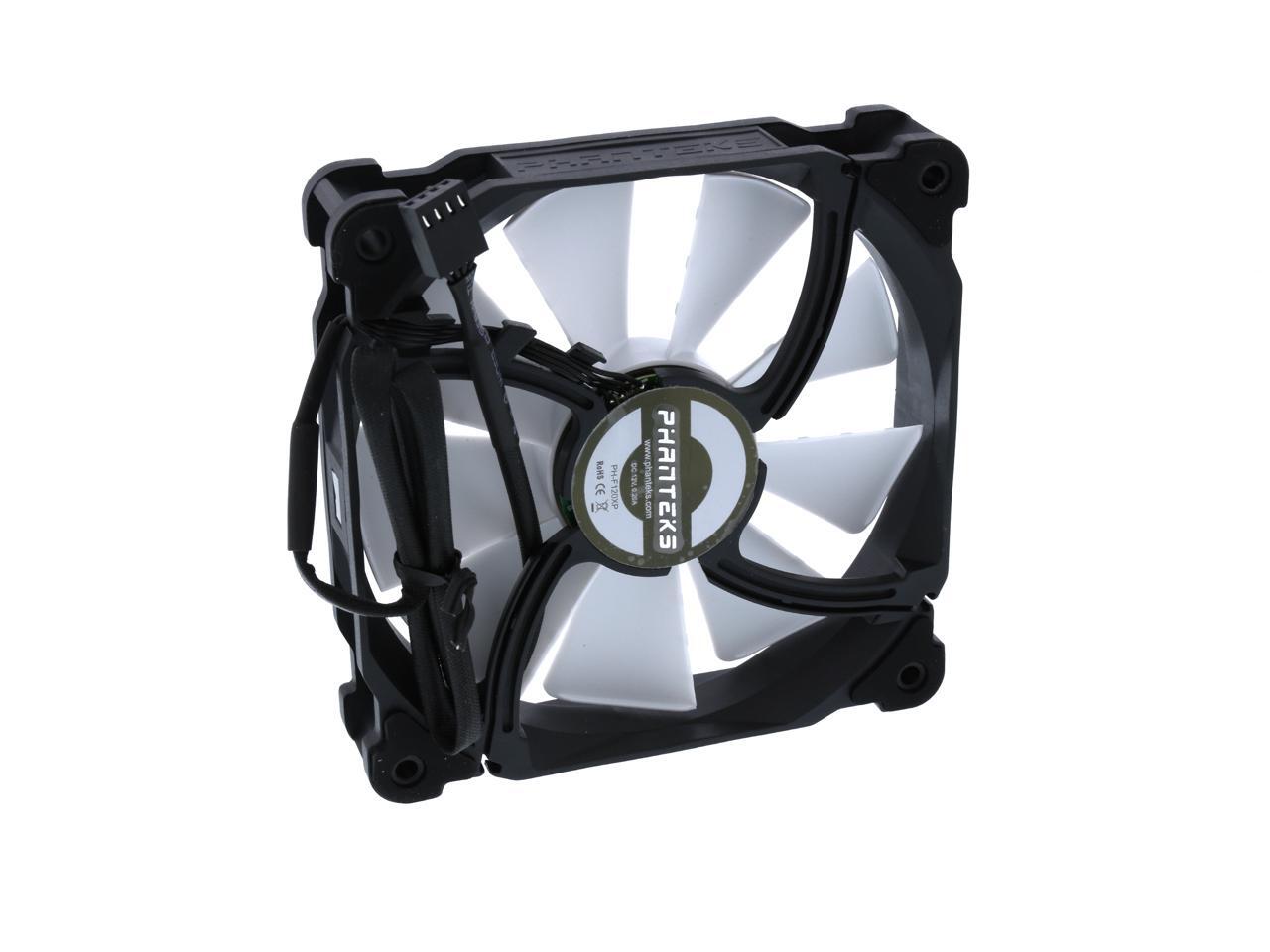

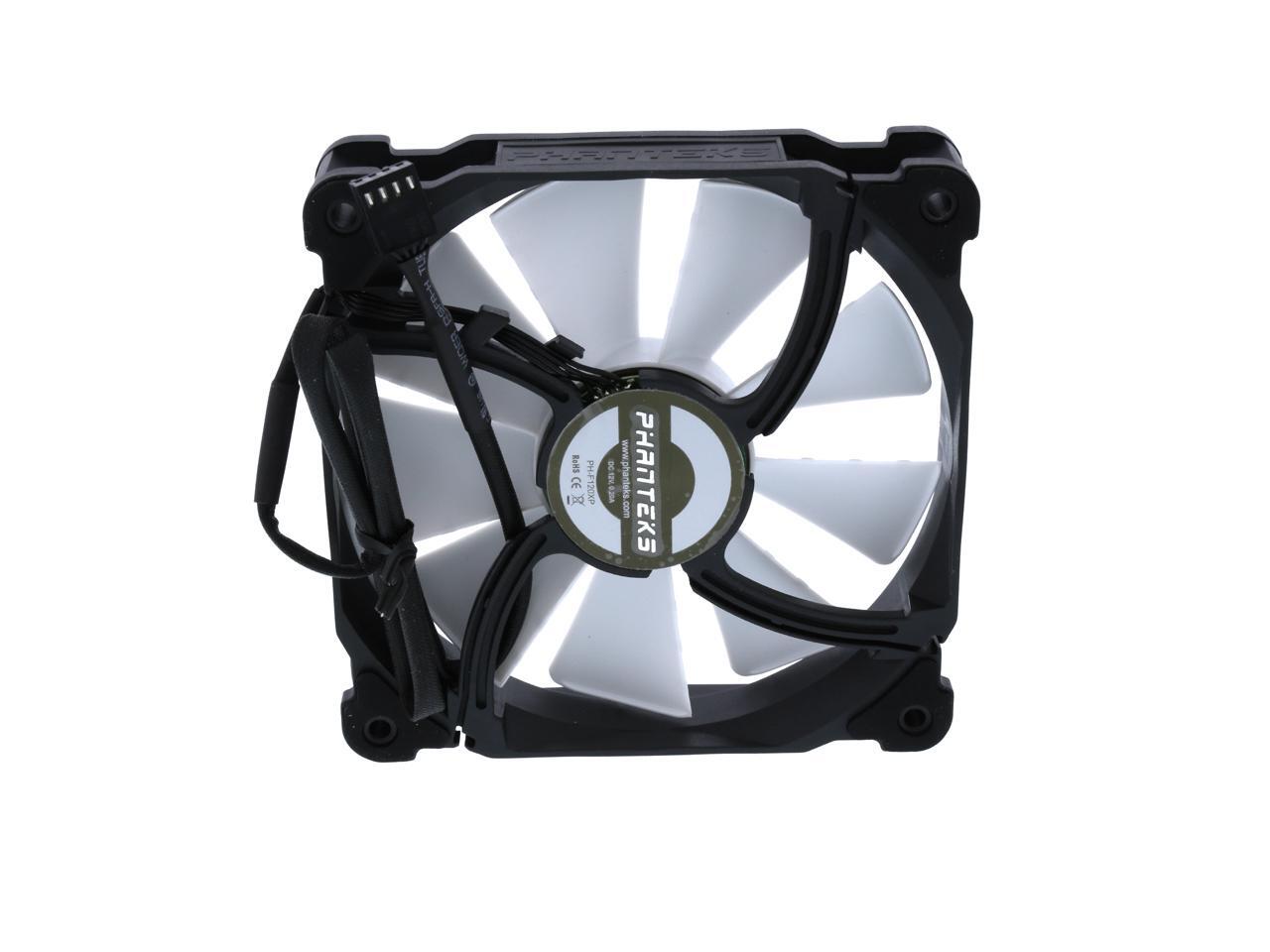

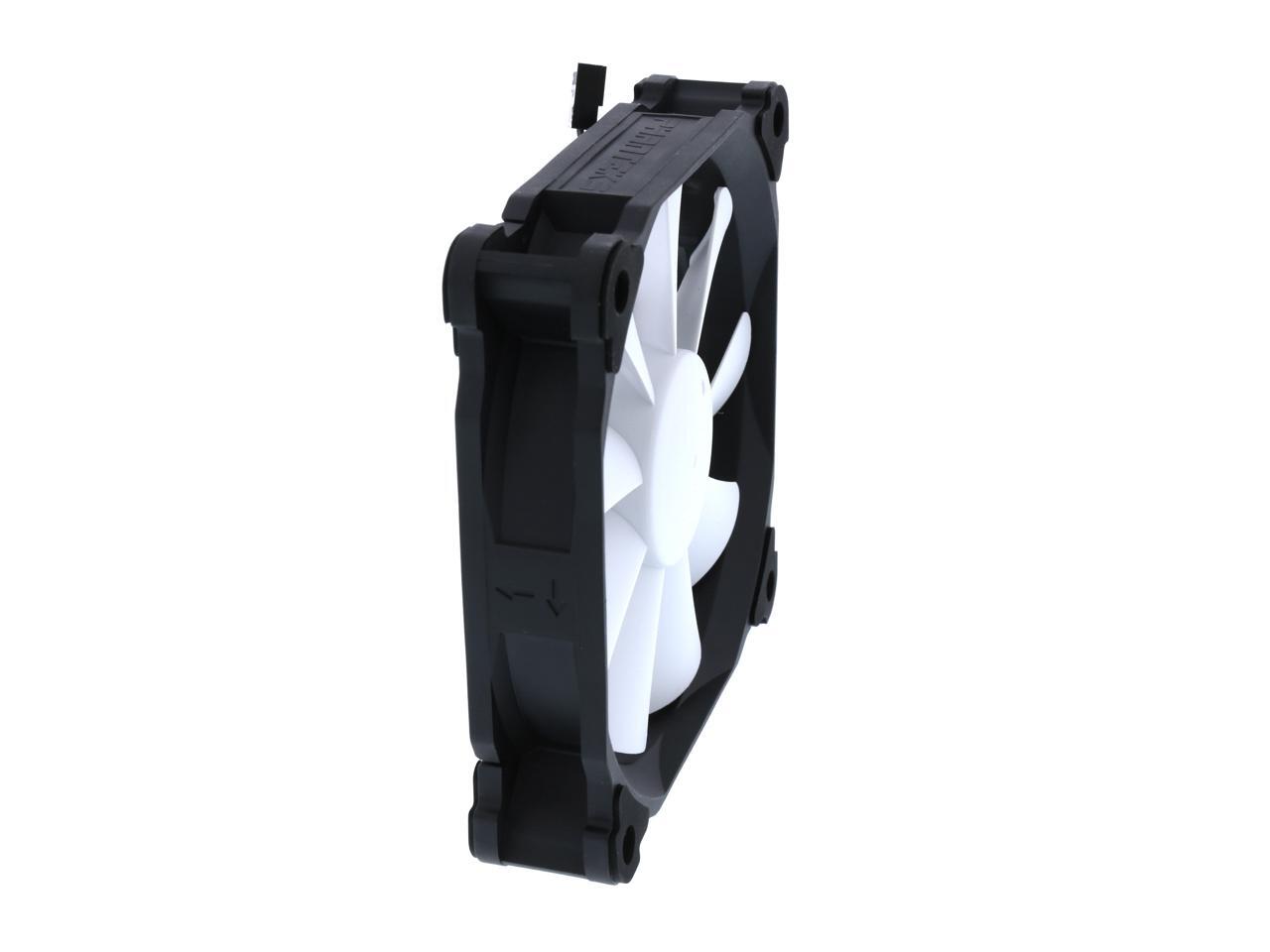

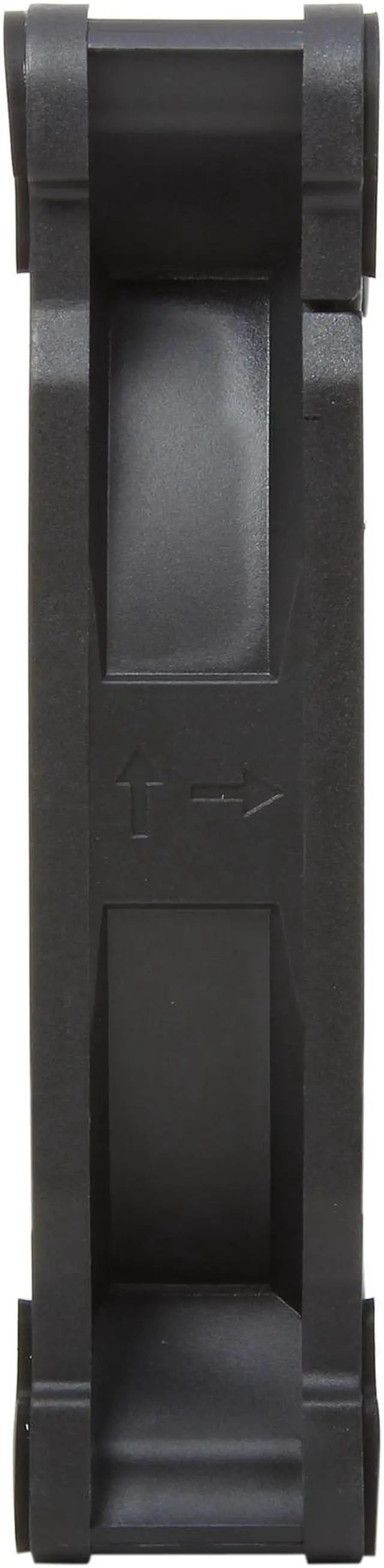

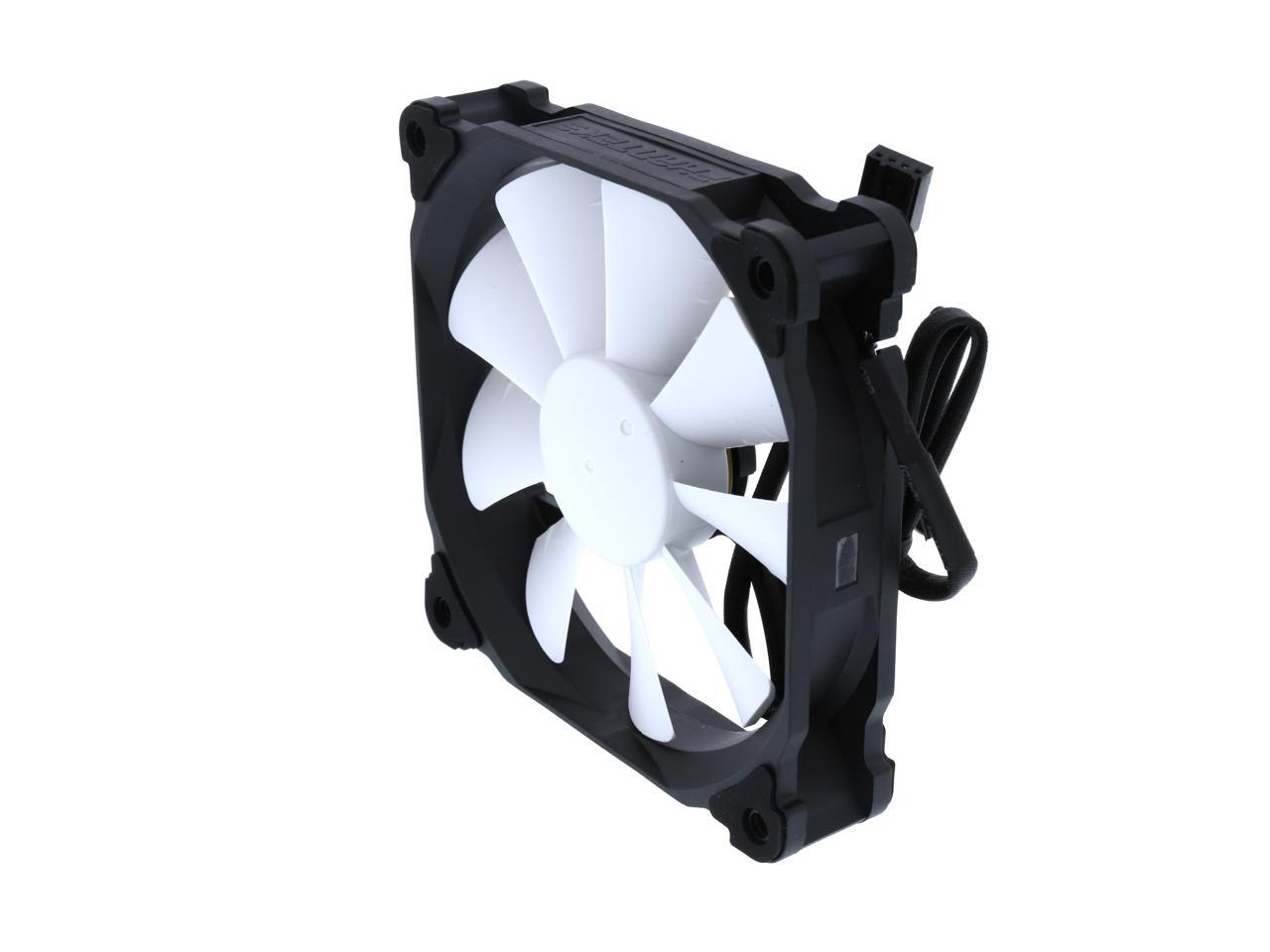

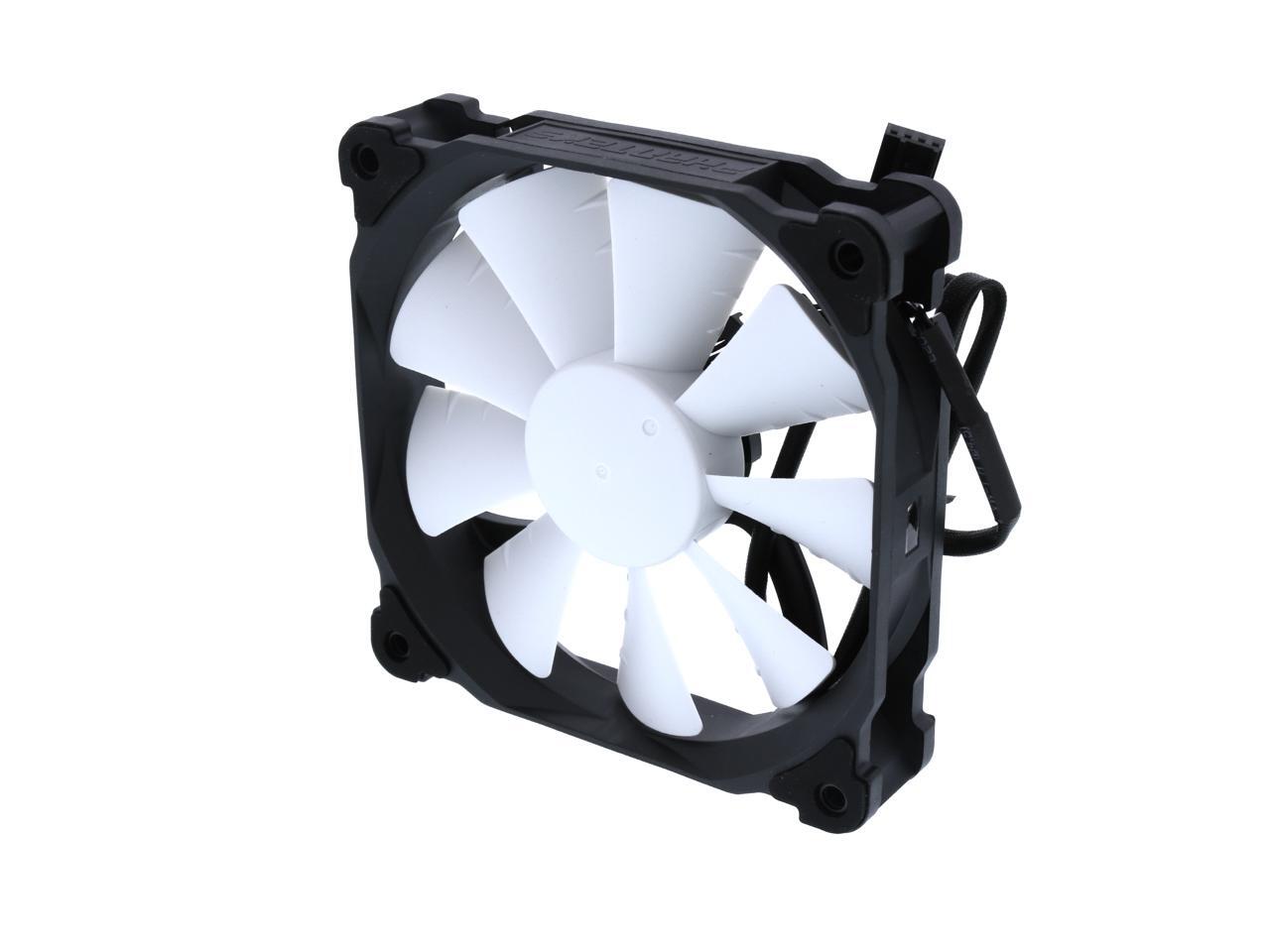

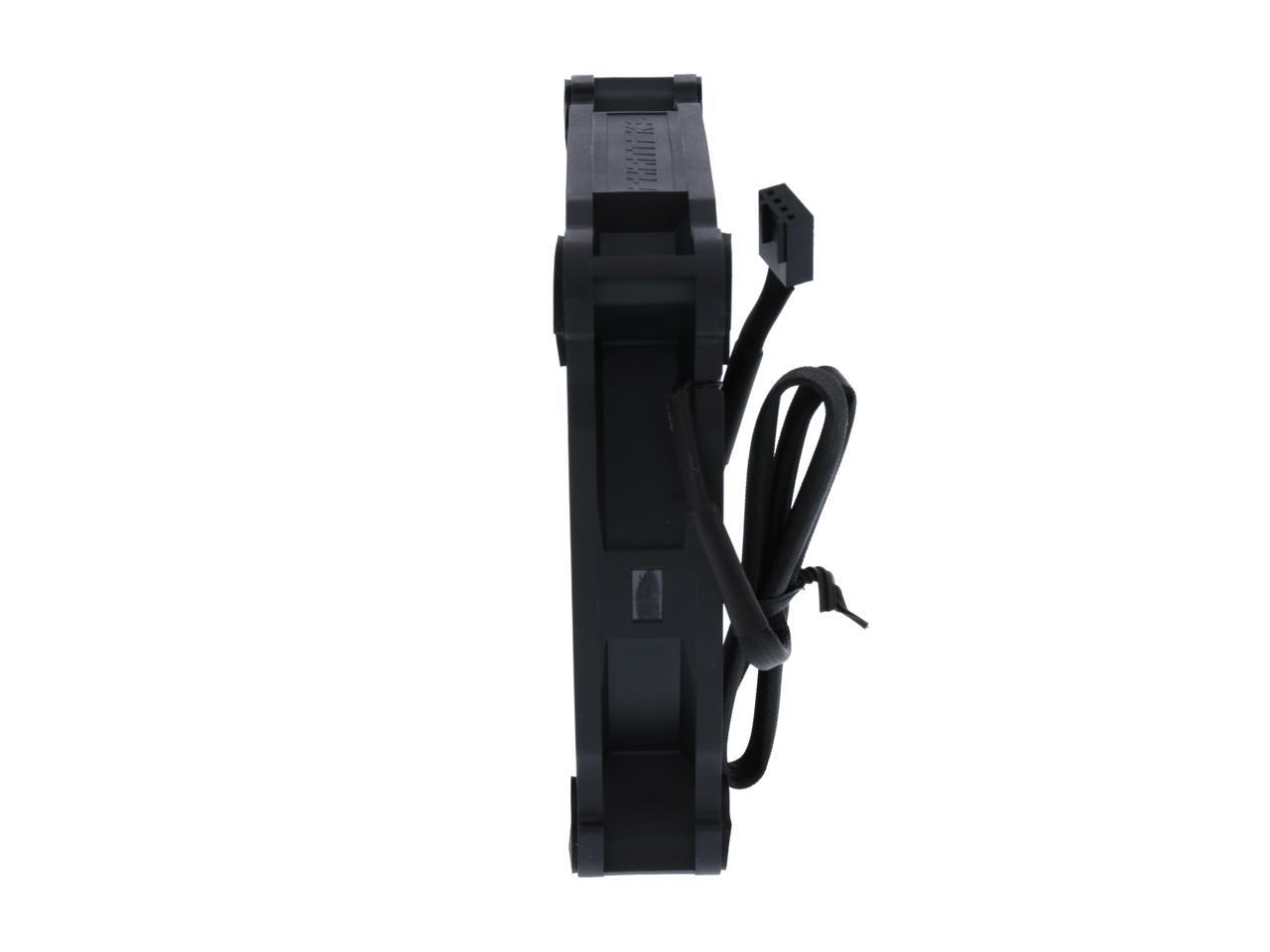

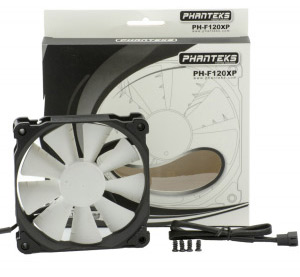

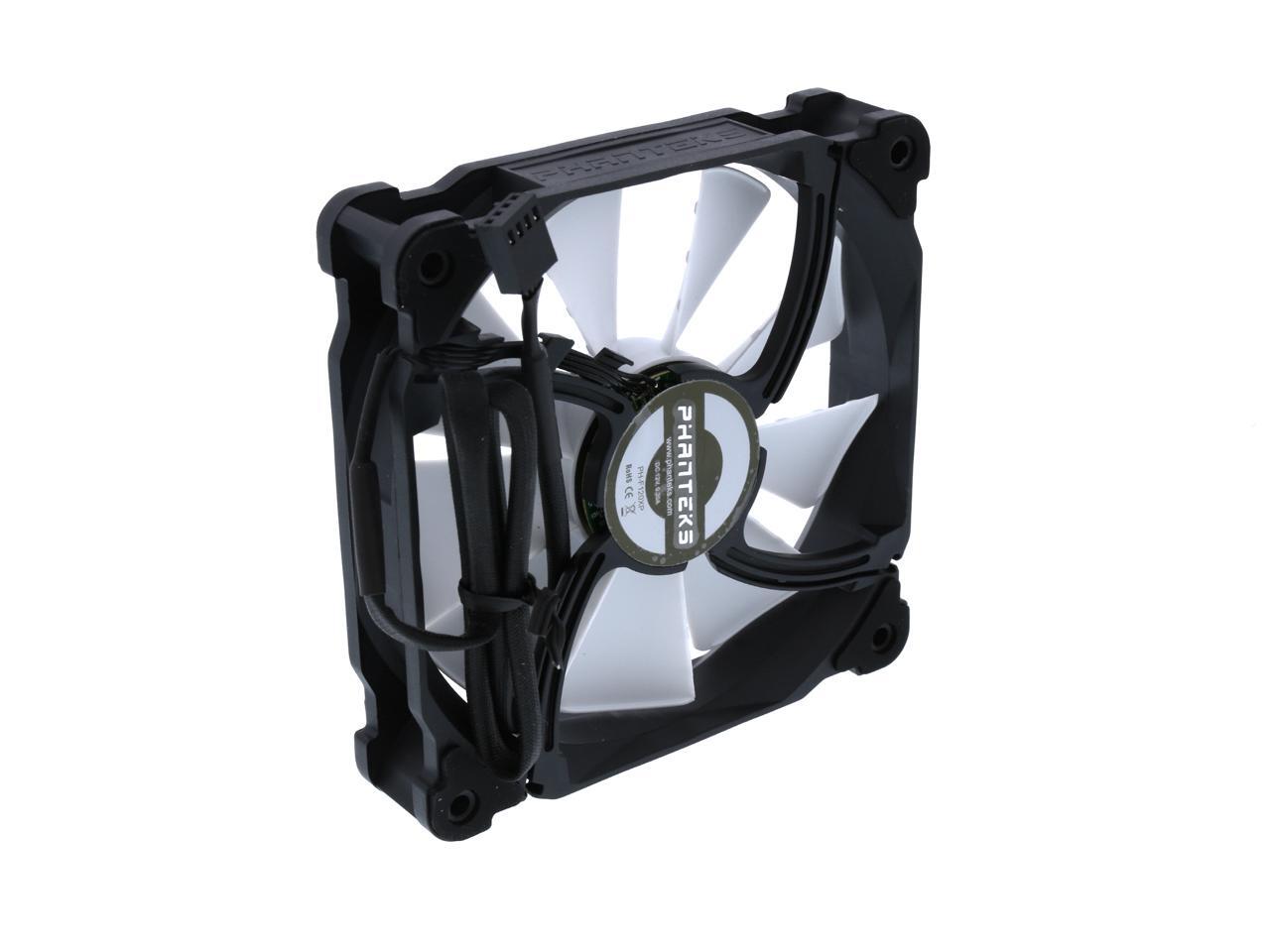

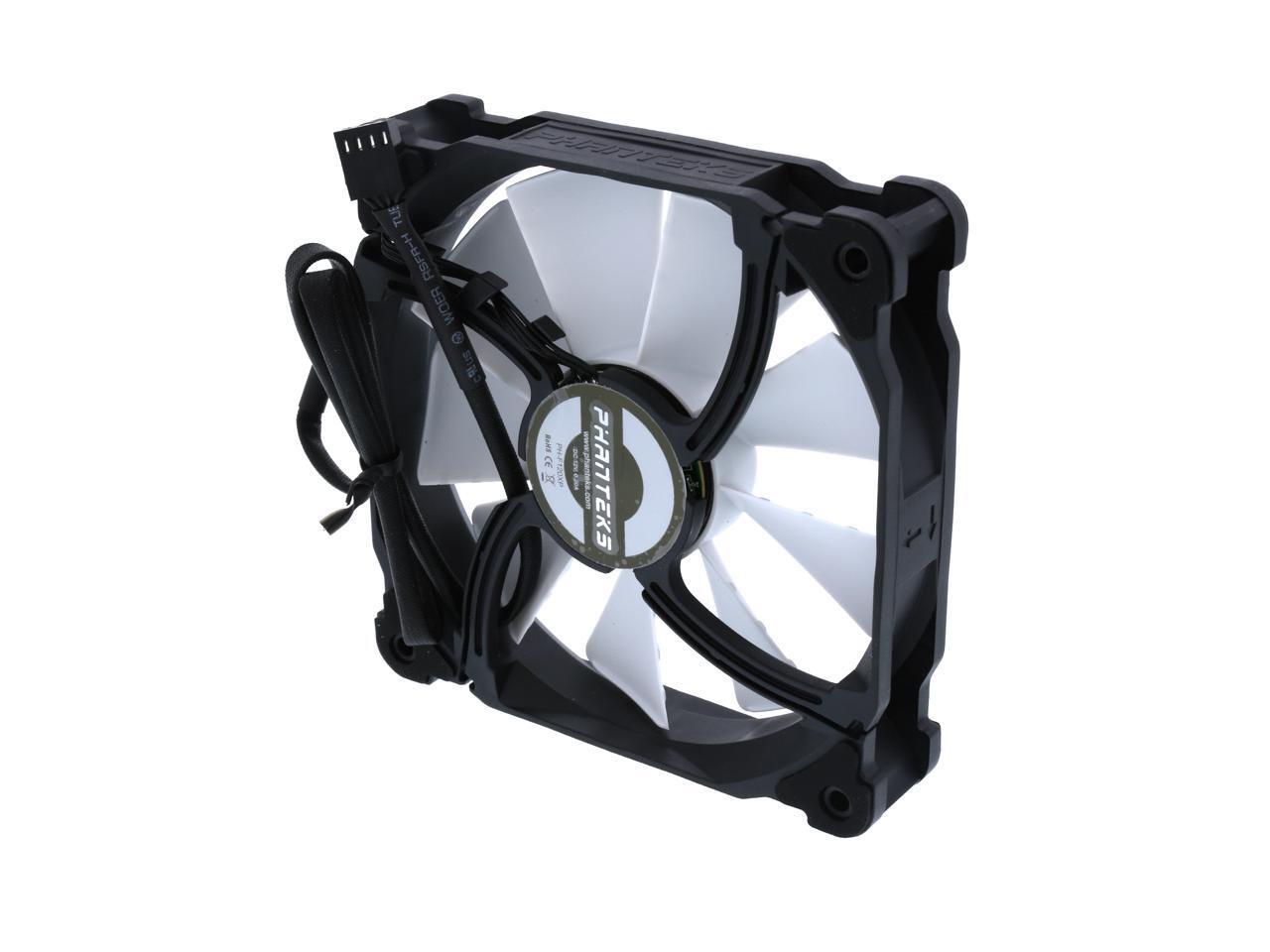

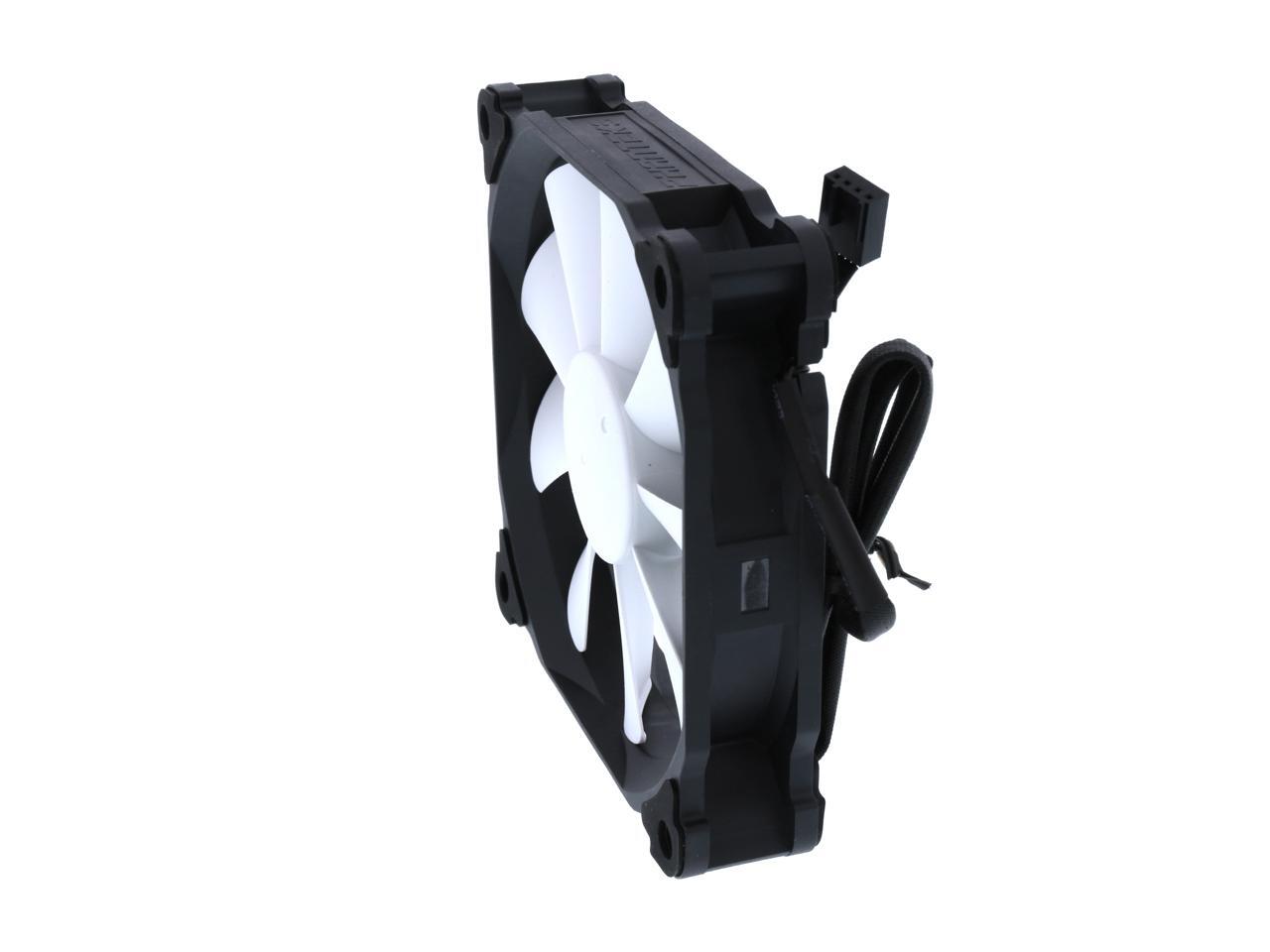

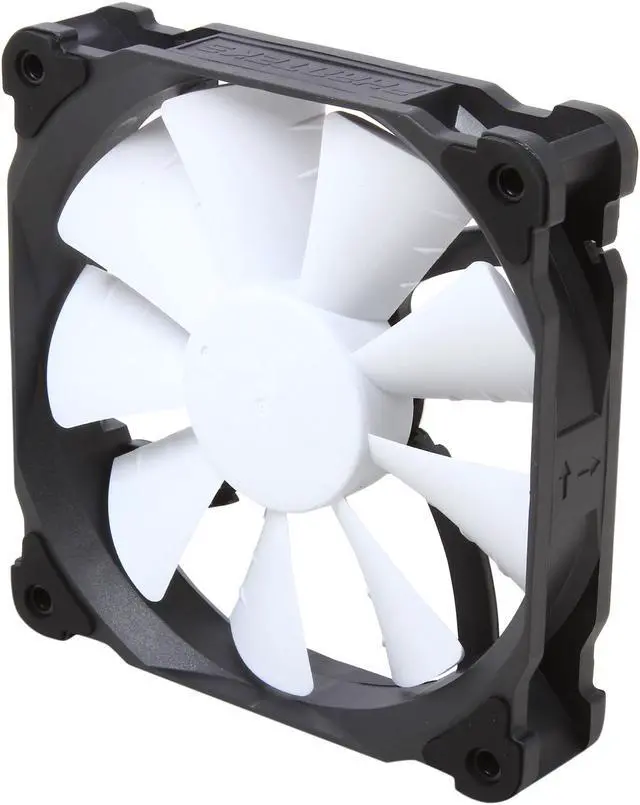

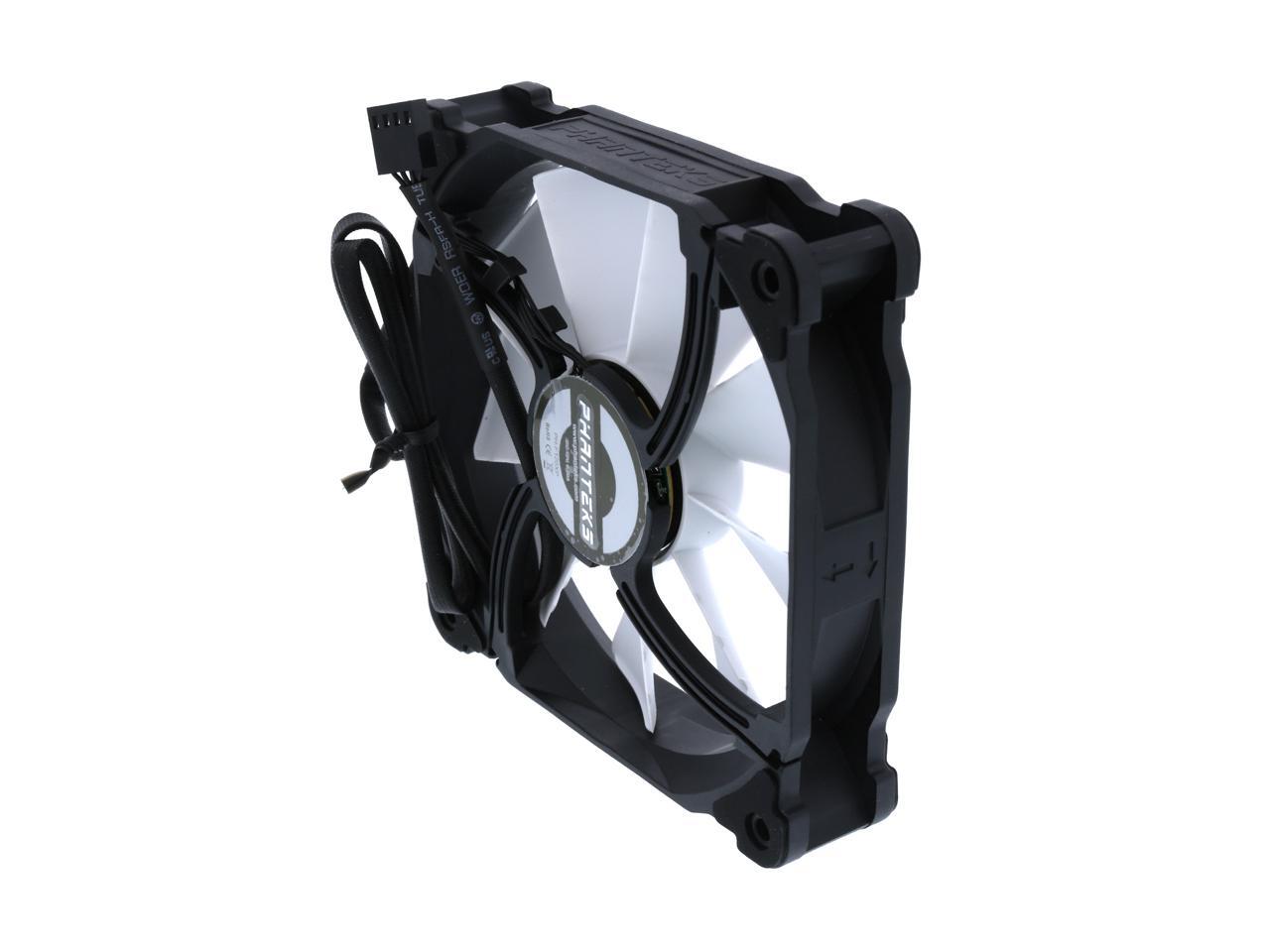

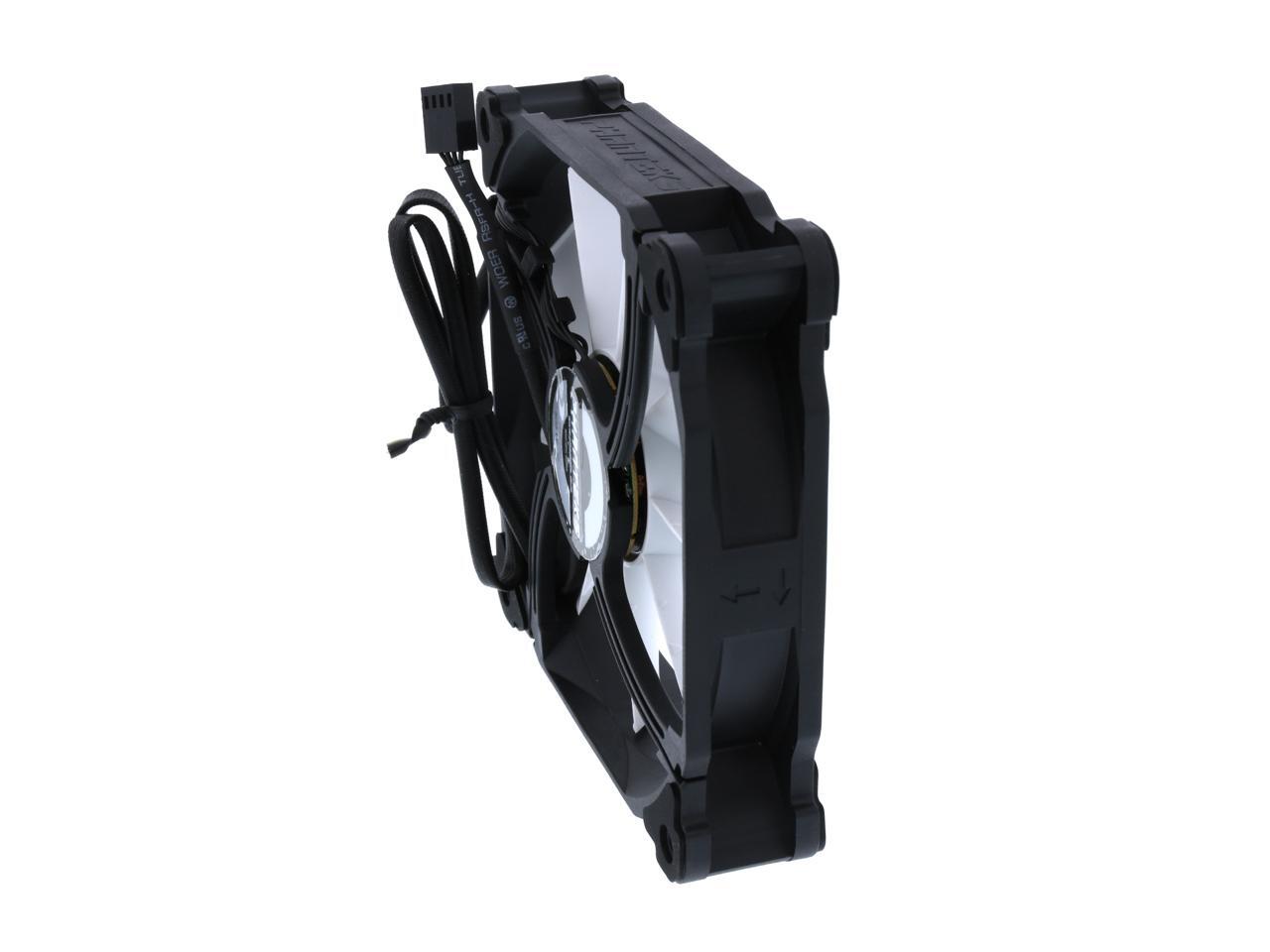

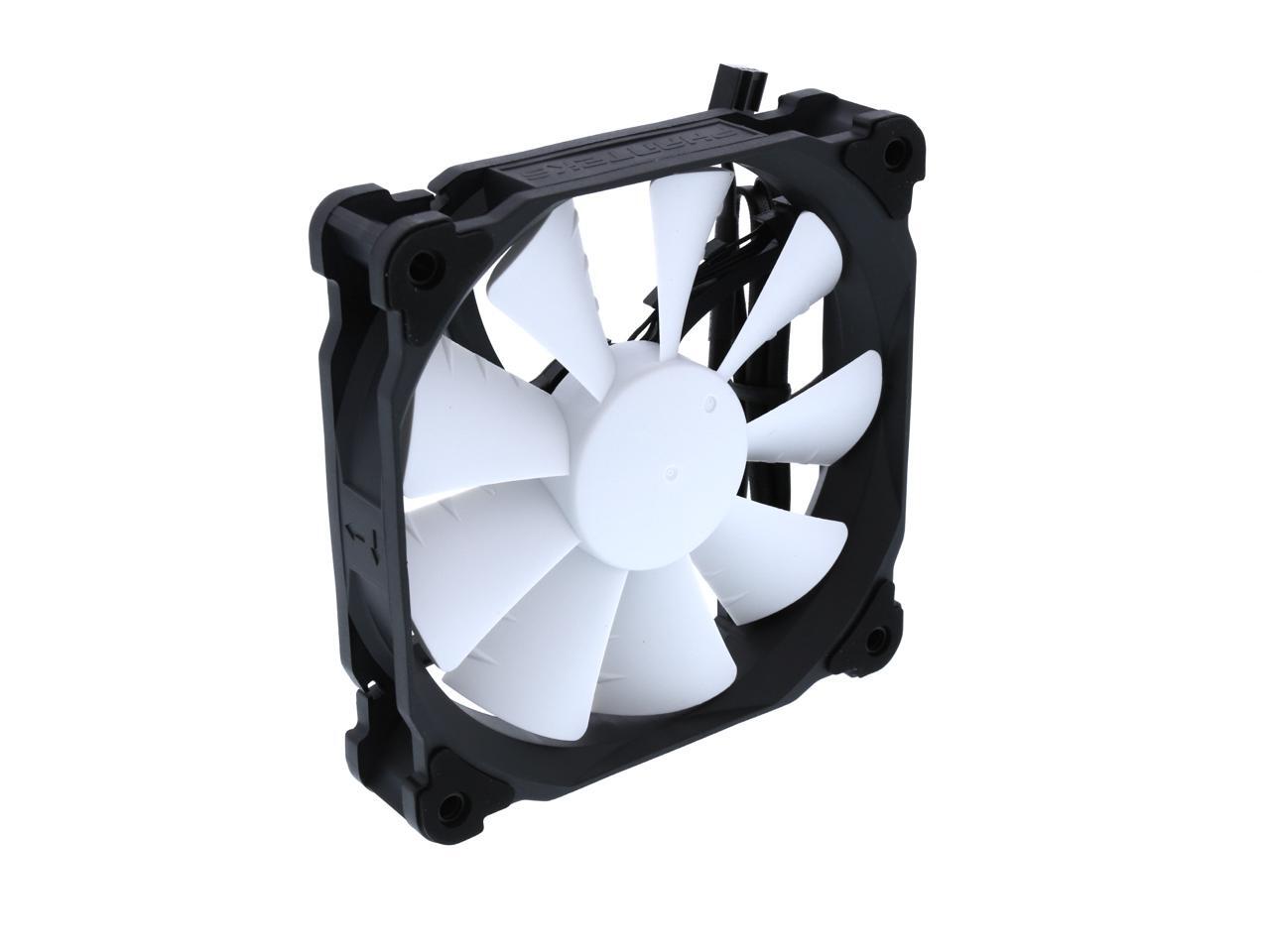

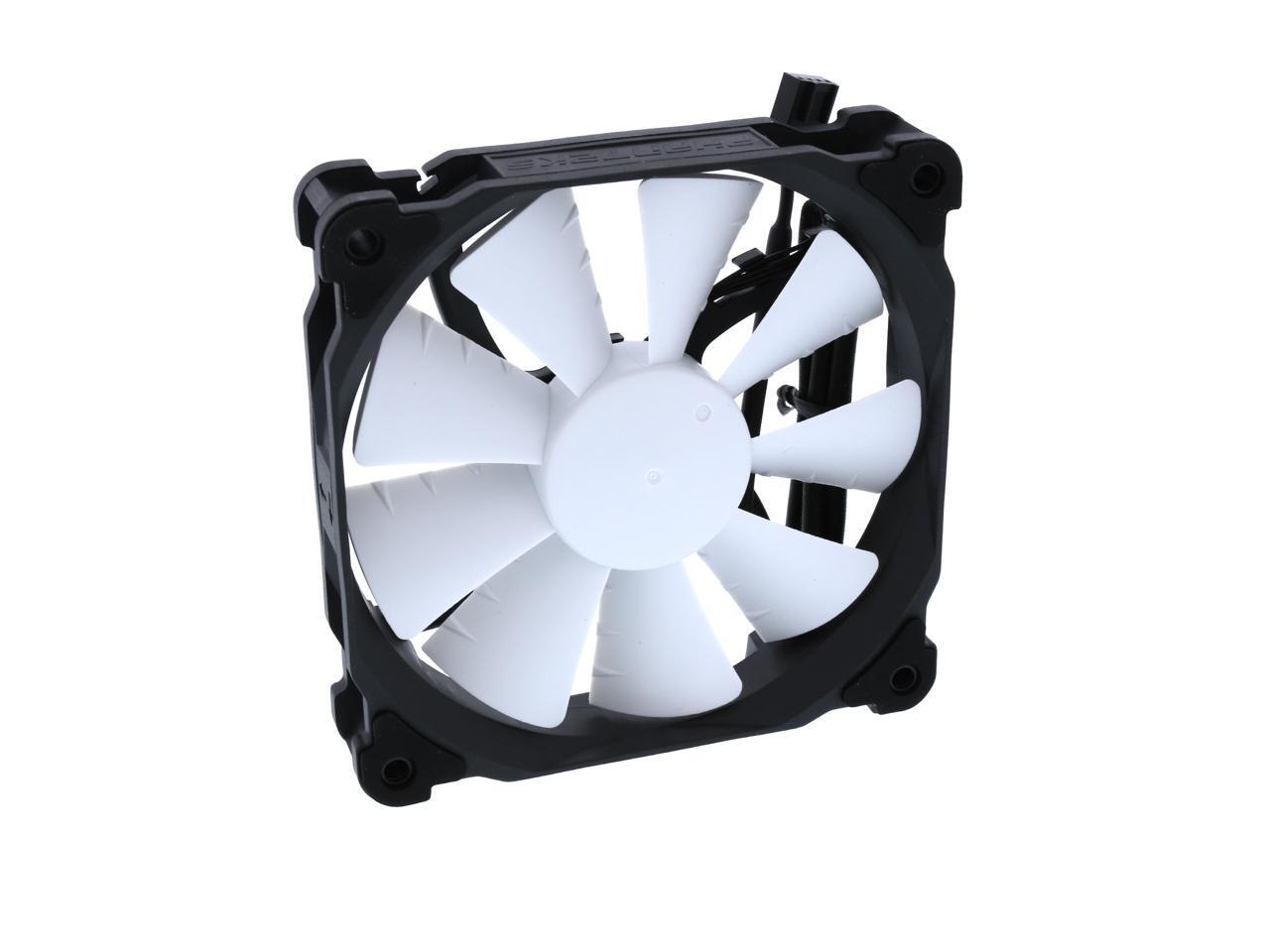

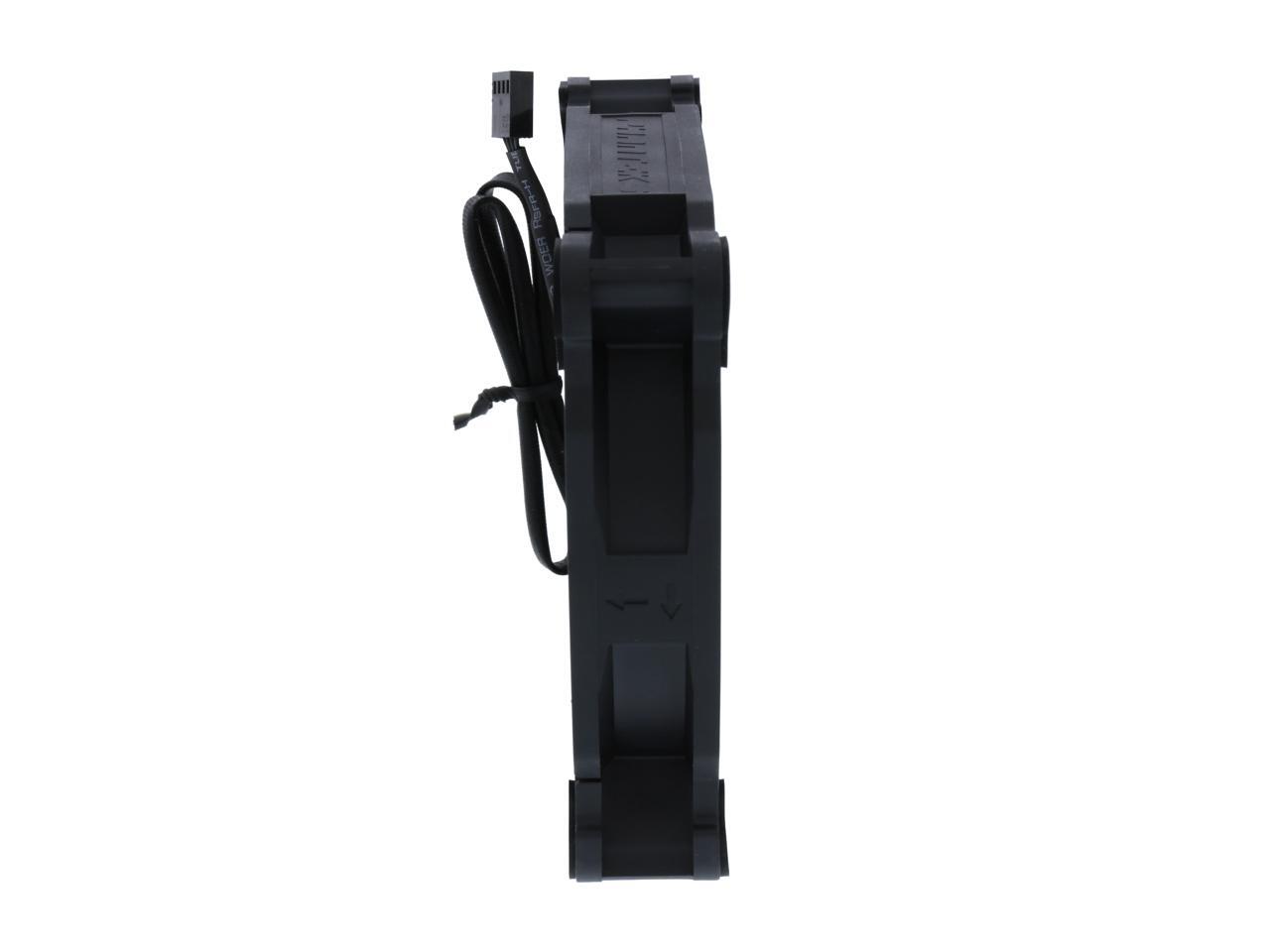

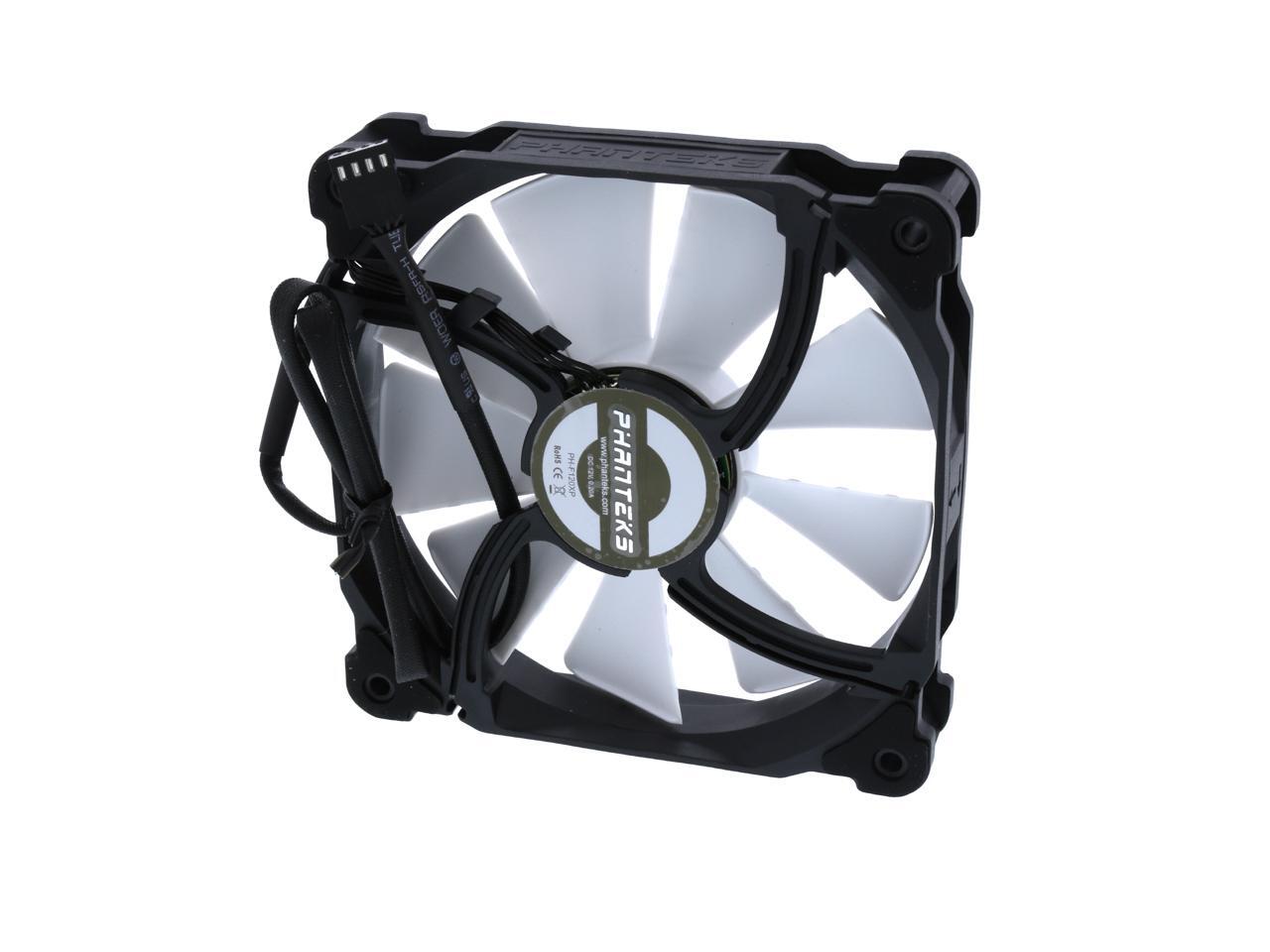

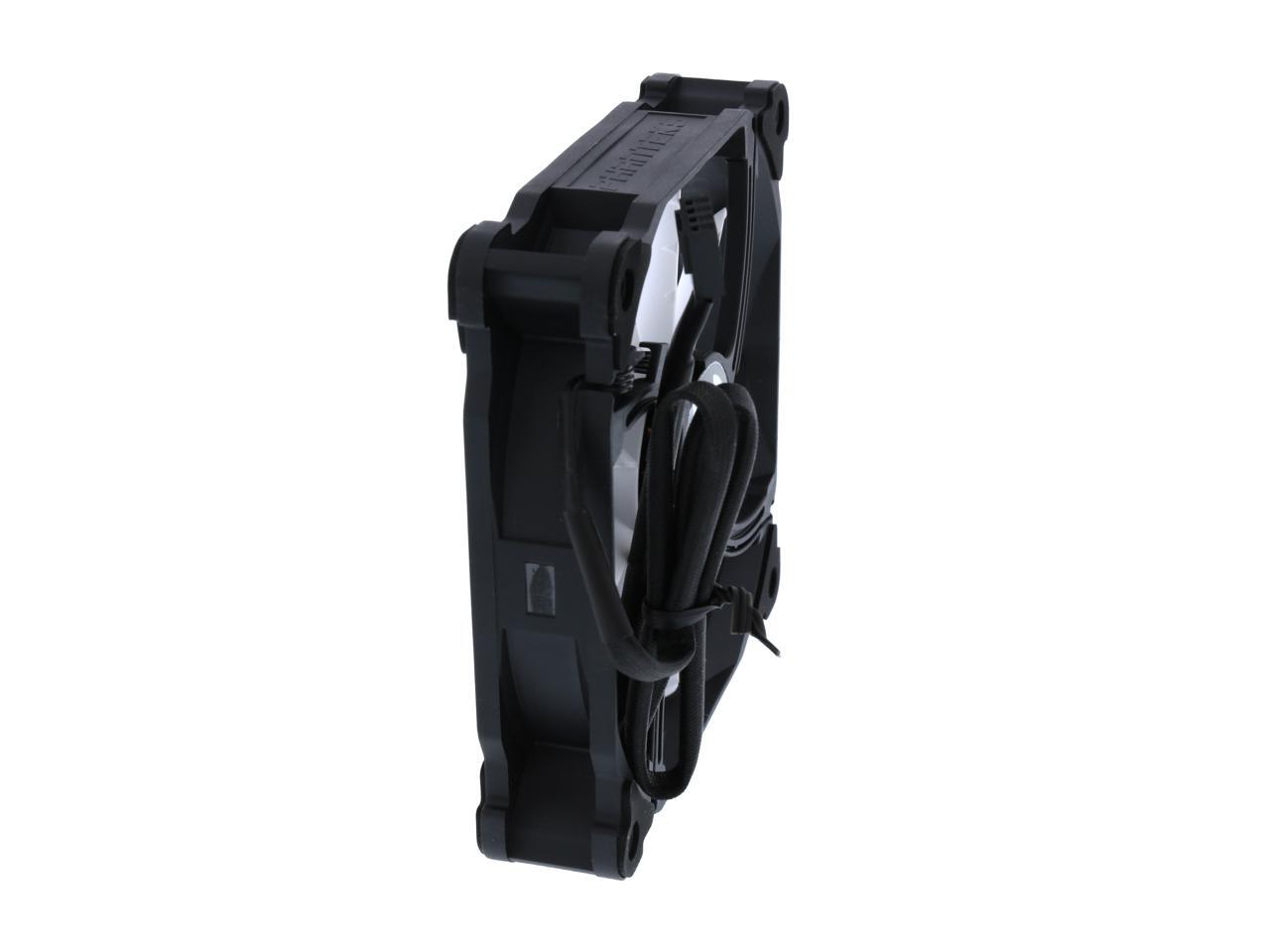

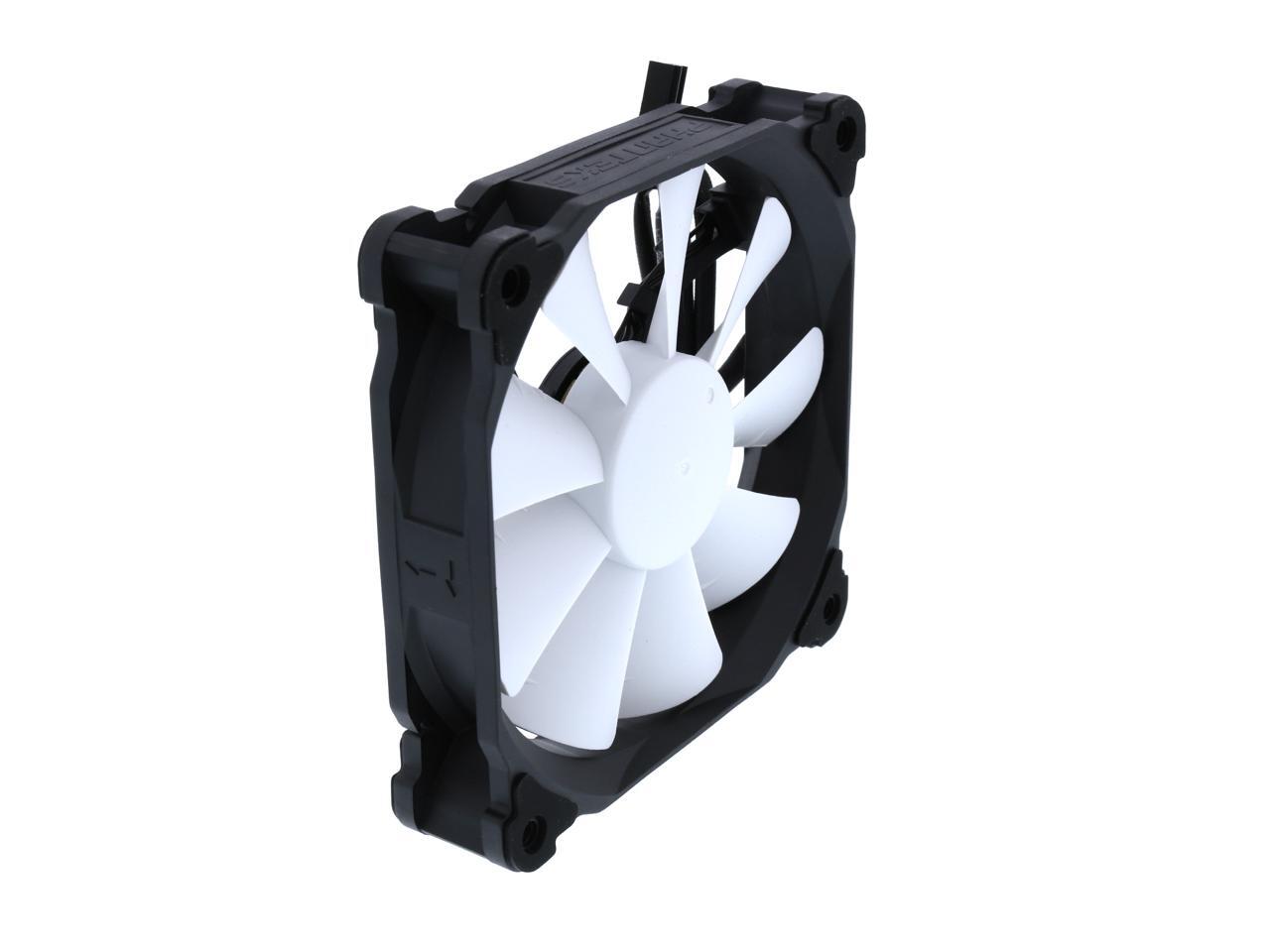

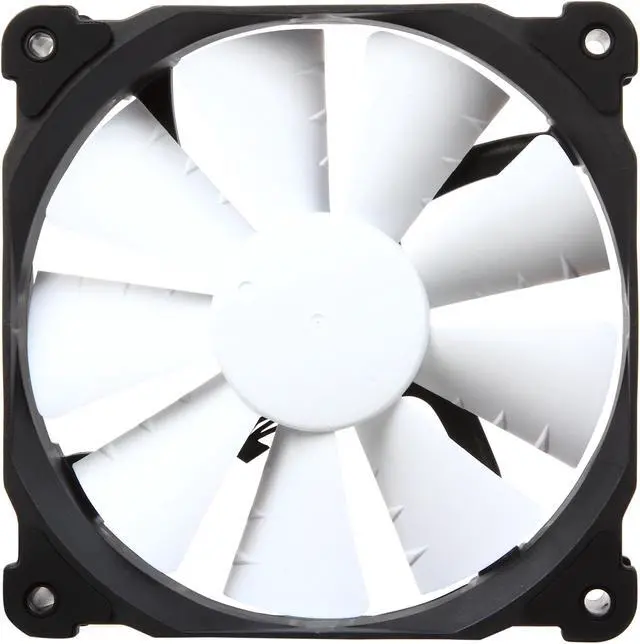

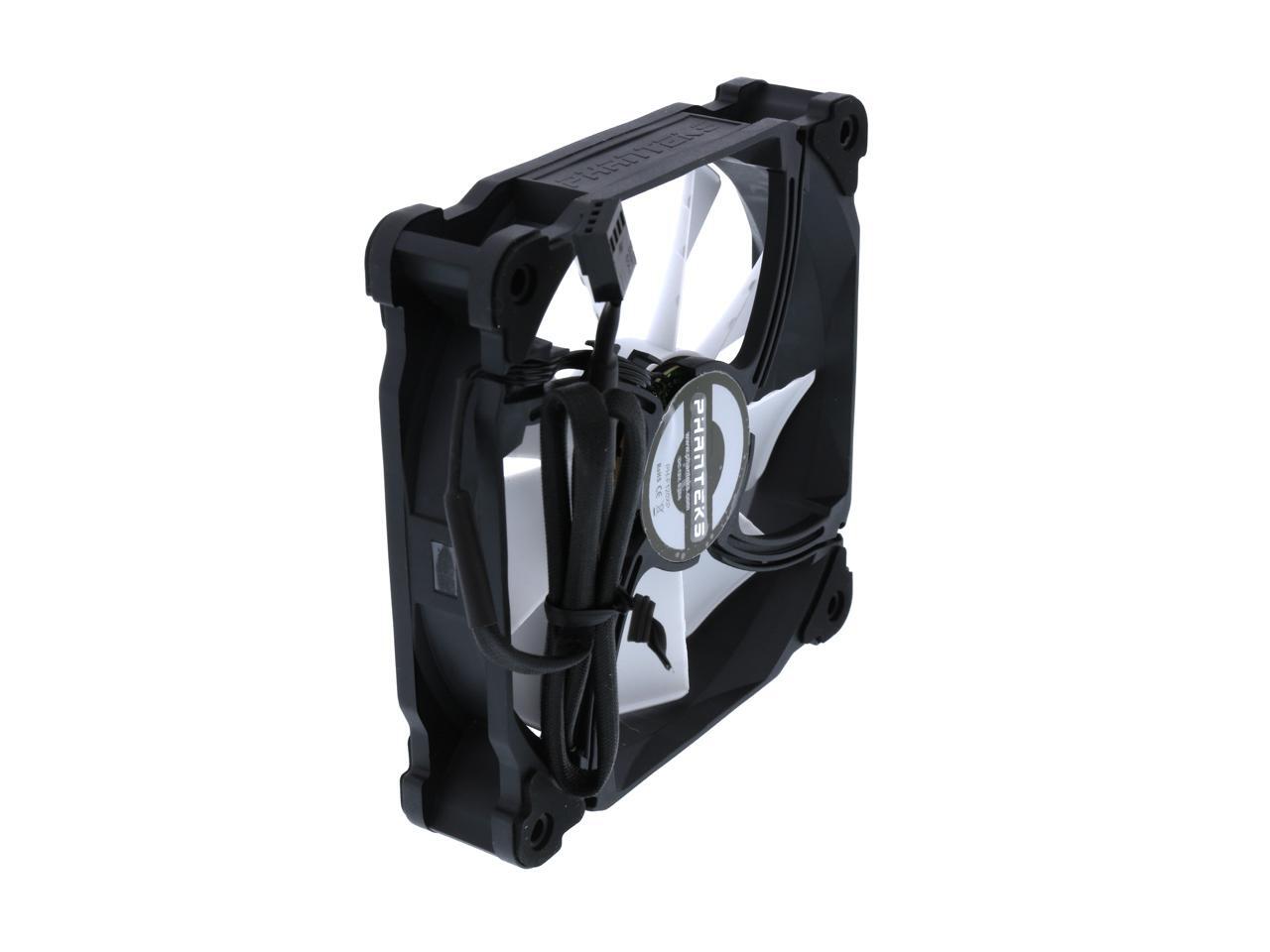

Phanteks PH-F120XP_BK PWM Case Fan
- 500 - 1500 +/- 250 rpm 23.0 - 61.6 CFM
- UFB (Updraft Floating Balance)
- 21 - 27 dB(A)
+
+
Overview
Specs
Reviews (4)

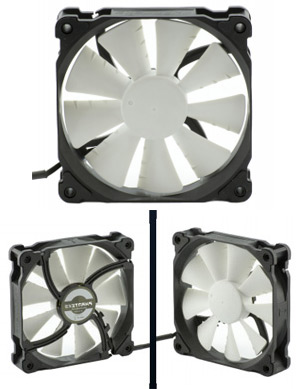

The PH-F120XP, 120mm Premium fans with PWM function from Phanteks is designed with the unique Maelström concept technology. PH-F120XP's innovative nine-blade design focuses airflow with maximum efficiency. With a 4-pin PWM connector, the PH-120XP fan is controlled with the motherboard's temperature sensors, allowing for the speed to increase or decrease depending on system loads for effective noise management. Performance and durability are now possible and a standard with the new PH-F120XP.
MVB (Maelström Vortex Booster)

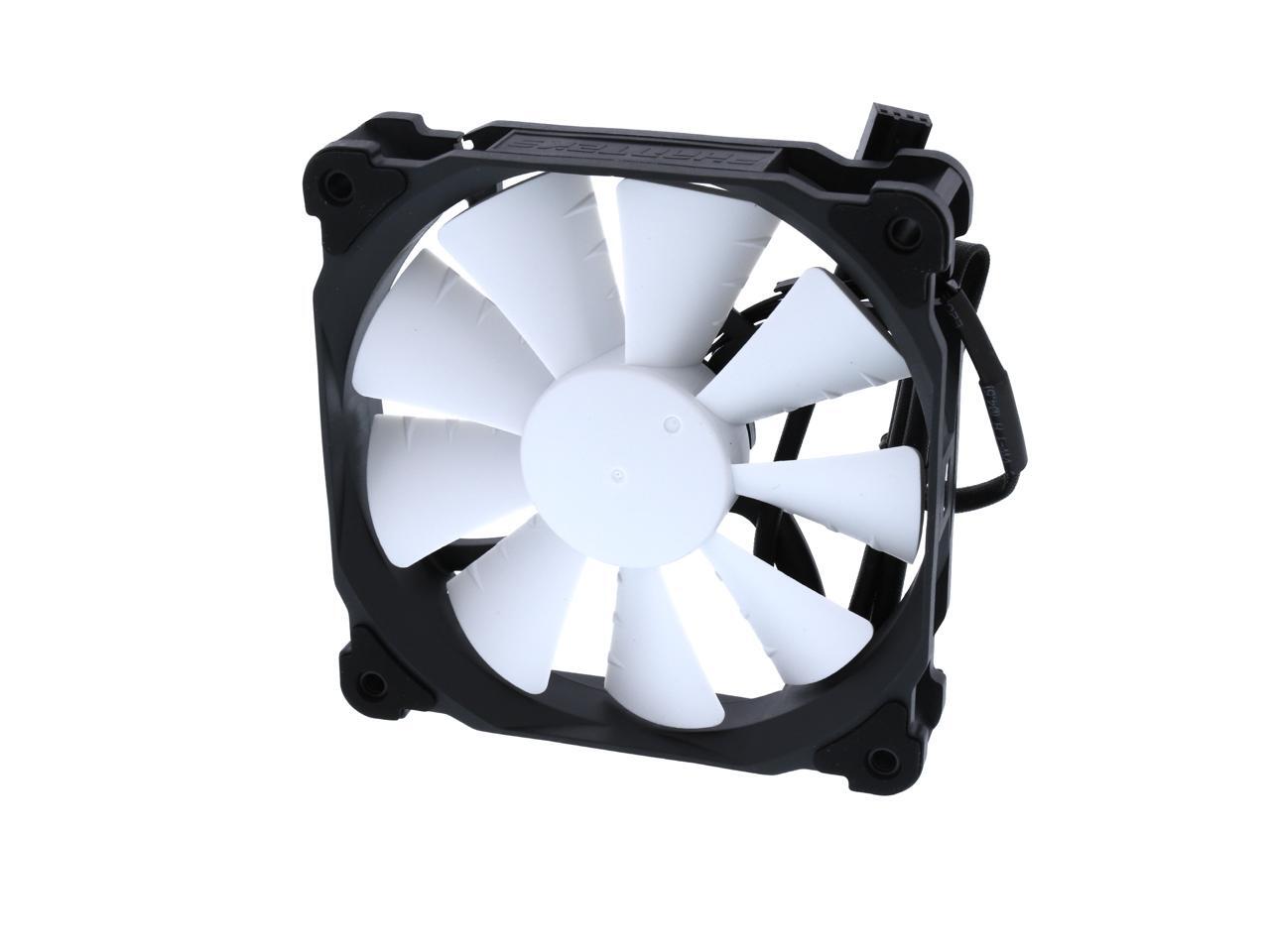

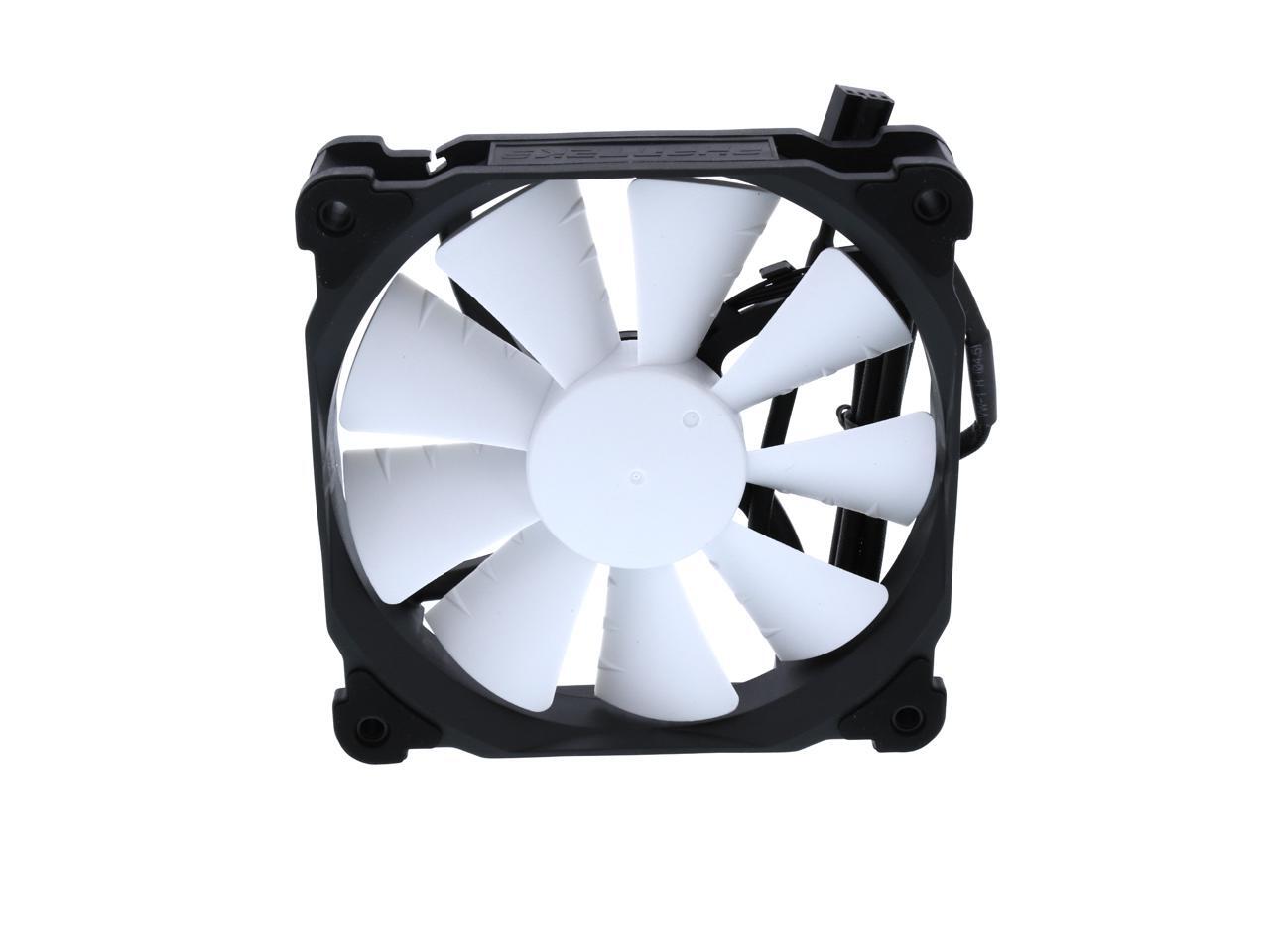

The new nine, high-pressure MVB blades are precisely angled to generate a silent controlled airflow. The blades produce a downdraft vortex allowing for a greater amount of air passage through, and reduced airflow turbulence across the surface of the blades to create significantly better performance while keeping noise to a minimum.
Acoustic Dampers
Eight pre-installed rubber pads are now bigger and designed to reduce more vibration.
Features
The new redeveloped blades in PH-F120XP are angled lower to achieve higher air pressure. The new fan generates maximum airflow, providing a decrease in wind noise and turbulence.
The PH-F120XP has a larger base size with a magnetic, brushless DC motor to avoid the effects of resonance and for rotational stability. To create better structural strength, Phanteks redesigned the back frame of the PH-F120XP. Phanteks fans now come with pre-installed rubber pads to help reduce vibration.
With the noise reduction challenges in mind, we modified the components for lower actuator noise, PCBA for lower electromagnetic noise, brushless motor structure for lower operating noise, and frame rib for lower wind and vibration noise.
Updraft Floating Balance (UFB) Bearing
Composed by MOSS and SSC systems, Phanteks' UFB bearings have an effective hub-tip ratio to achieve a state of equilibrium reducing air and vibration noise. SSC provides an increase in the bearing's lifespan and ensures that the fan's axis is consistently operational and quiet.
Warranty
Phanteks products are made to the highest standards and should provide many years of excellent service. Providing you with the best customer care, Phanteks are offering a five-year warranty.
Specifications
| Model | PH-F120XP Series |
|---|---|
| Brand | Phanteks |
| Fan Dimensions | 120 x 120 x 25mm |
| Type | Case Fan |
| Bearing Type | UFB (Updraft Floating Balance) Bearing |
| Blade Geometry | Nine Blades Design with MVB (Maelstrom Vortex Booster Design) |
| Speed (RPM) | 500 - 1500 ± 250RPM |
| Max Airflow | 23.0 - 61.6 CFM |
| Acoustical Noise | 21 - 27dB(A) |
| Static Pressure | 0.39 - 1.72mmH2O |
| Input Current | 0.2A |
| Rate Voltage | 12VDC |
| Input Power | 2.4W |
| MTBF | > 150,000 hours |
| Speed Sensor | 4-Pin |
| Cable Length | 19.6 Inches (500mm) |

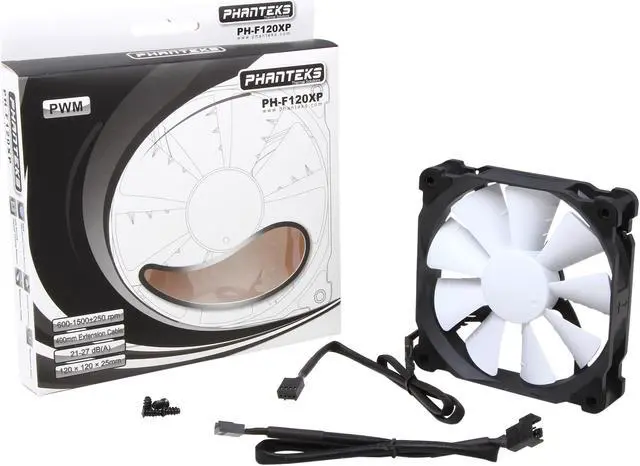

| Scope of Delivery |
|
| Packaging Dimension (H x W x D) | 7.8 x 7.4 x 1.3 in. (200 x 190 x 33mm) |
| Net Weight | 7.05oz (200g) |
| Gross Weight | 9.5oz (270g) |
| Model Number | PH-F120XP_BK |
| UPC Code | 886523000488 |
| Color | Black |
| Warranty | 5-Year |
