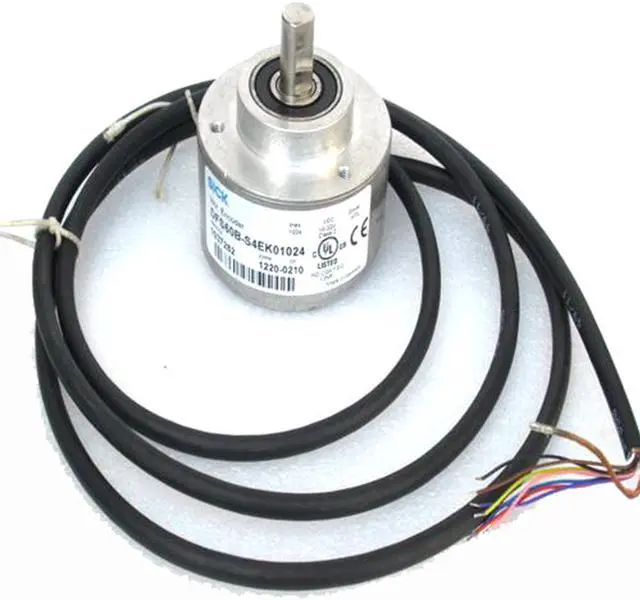

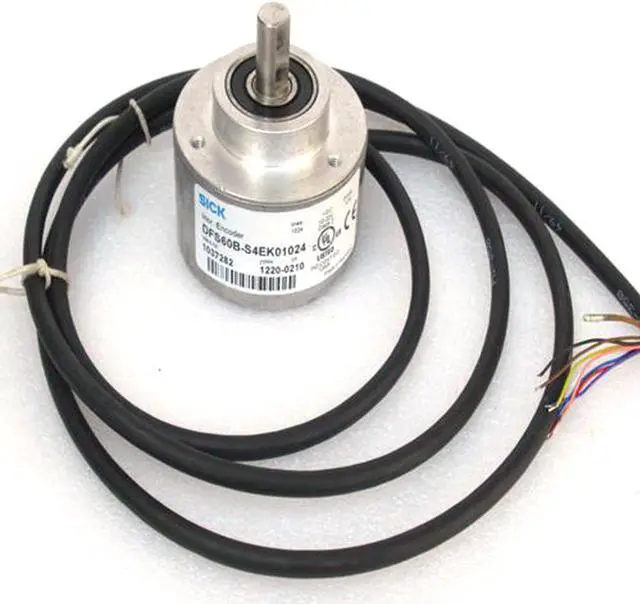

SICK DFS60B-S4EK01024 Incremental Encoders New
- SICK DFS60B-S4EK01024 Incremental Encoders New
+
+
Overview
Specs
Reviews
PERFORMANCE
Pulses per revolution 1,024
Measuring step 90° electronically/ppr
Measuring step deviation at binary number of lines ± 0.008°
Error limits ± 0.05°
Initialization time 40 ms
ELECTRICAL DATA
Electrical interface 10 V ... 32 V, HTL/Push pull
Connection type Cable, 8-wire, universal, 1.5 m
Operating current 40 mA
Power consumption = 0.5 W (without load)
Load current = 30 mA
Output frequency = 600 kHz
Reference signal, number 1
Reference signal, position 90°, electric, logically gated with A and B
Reverse polarity protection ?
Short-circuit protection of the outputs ? 1)
MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) 2)

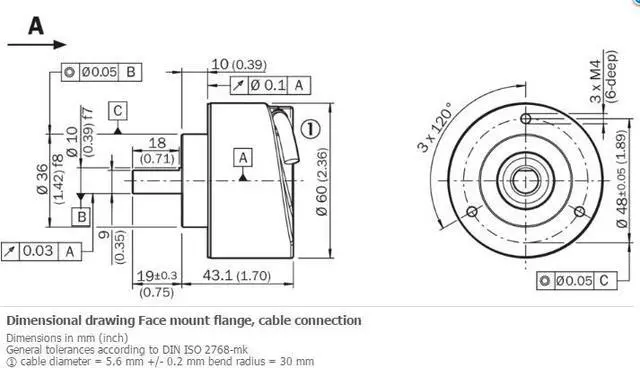

MECHANICAL DATA
Mechanical design Solid shaft, face mount flange
Shaft diameter 10 mm x 19 mm
Weight 0.3 kg
Flange material Aluminum
Housing material Aluminum die cast
Start up torque 0.5 Ncm (+20 °C)
Operating torque 0.3 Ncm (+20 °C)
Permissible shaft loading radial/axial
80 N (radial)
40 N (axial)
Operating speed = 9,000 min?¹ 1)
Moment of inertia of the rotor 6.2 gcm²
Bearing lifetime 3.6 x 10^10 revolutions
Angular acceleration = 500,000 rad/s²
Pulses per revolution 1,024
Measuring step 90° electronically/ppr
Measuring step deviation at binary number of lines ± 0.008°
Error limits ± 0.05°
Initialization time 40 ms
ELECTRICAL DATA
Electrical interface 10 V ... 32 V, HTL/Push pull
Connection type Cable, 8-wire, universal, 1.5 m
Operating current 40 mA
Power consumption = 0.5 W (without load)
Load current = 30 mA
Output frequency = 600 kHz
Reference signal, number 1
Reference signal, position 90°, electric, logically gated with A and B
Reverse polarity protection ?
Short-circuit protection of the outputs ? 1)
MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) 2)
MECHANICAL DATA
Mechanical design Solid shaft, face mount flange
Shaft diameter 10 mm x 19 mm
Weight 0.3 kg
Flange material Aluminum
Housing material Aluminum die cast
Start up torque 0.5 Ncm (+20 °C)
Operating torque 0.3 Ncm (+20 °C)
Permissible shaft loading radial/axial
80 N (radial)
40 N (axial)
Operating speed = 9,000 min?¹ 1)
Moment of inertia of the rotor 6.2 gcm²
Bearing lifetime 3.6 x 10^10 revolutions
Angular acceleration = 500,000 rad/s²
