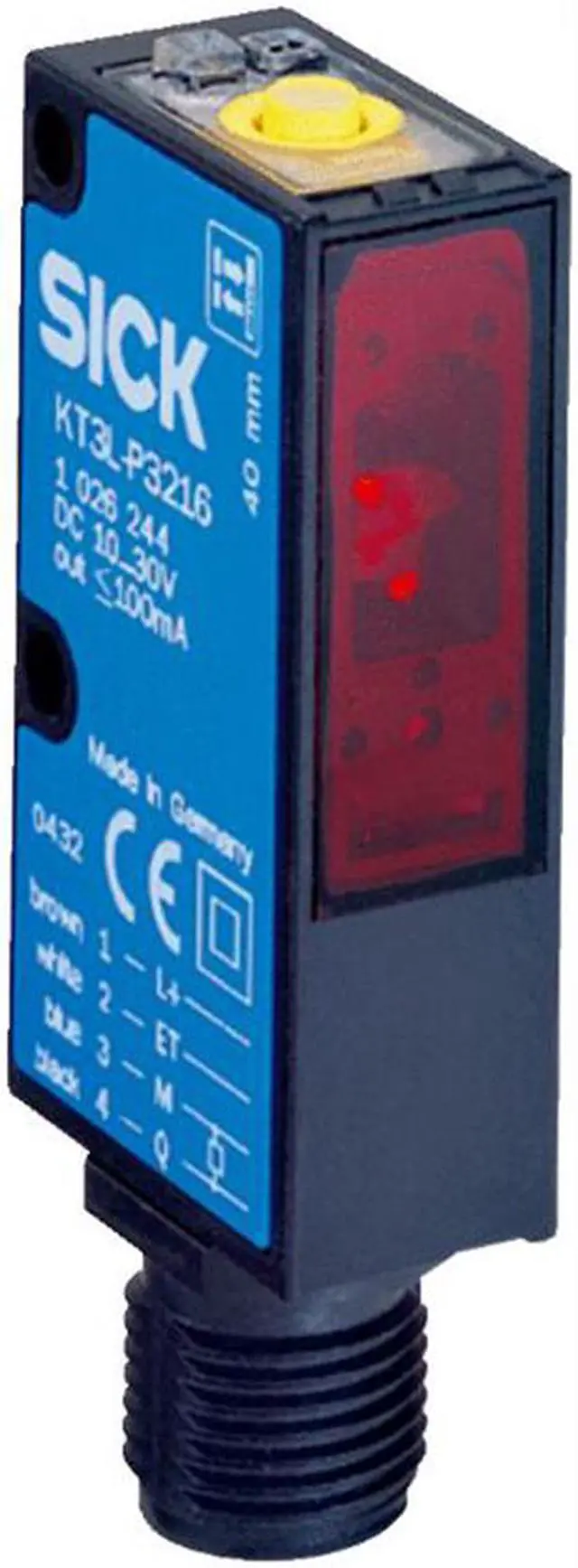

SICK KT3L-N3216 Contrast Sensors ,NPN New
- SICK KT3L-N3216 Contrast Sensors ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Dimensions (W x H x D) 12 mm x 40 mm x 22 mm
Sensing distance 40 mm
Sensing distance tolerance ± 20 mm
Housing design (light emission) Rectangular
Light source Laser, Red 1)
Wave length 655 nm
Light spot size 1 mm x 2 mm
Light spot direction Vertical 2)
Laser class II
Operating distance 20 mm ... 60 mm

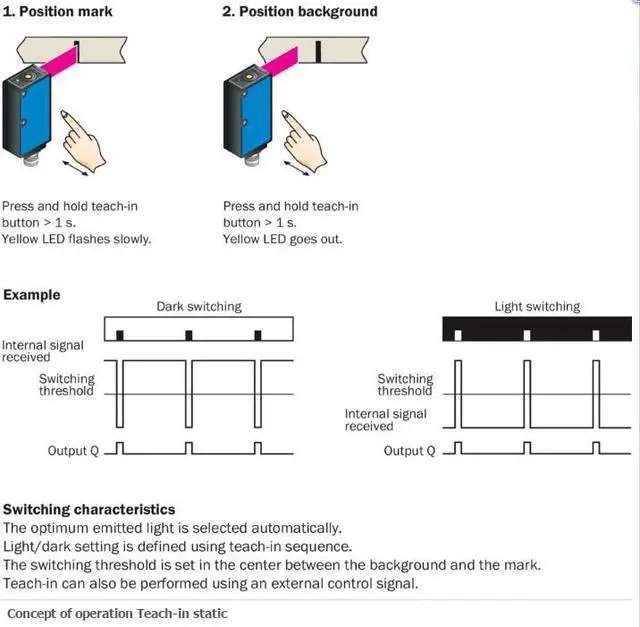

Adjustment Teach-in button
Teach-in mode Static 2-point teach-in
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption < 35 mA 3)
Switching frequency 1.5 kHz 4)
Response time 400 µs 5)
Switching output NPN
Switching output (voltage) NPN: HIGH = approx. VS / LOW = 2 V
Output current Imax. 100 mA
Input, teach-in (ET)
NPN
Teach: U < 2 V
Run: U = UV
Retention time (ET) 25 ms, non-volatile memory
Connection type Male connector M12, 4-pin
Protection class II 6)
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP67
Weight 11 g
Housing material ABS
Dimensions (W x H x D) 12 mm x 40 mm x 22 mm
Sensing distance 40 mm
Sensing distance tolerance ± 20 mm
Housing design (light emission) Rectangular
Light source Laser, Red 1)
Wave length 655 nm
Light spot size 1 mm x 2 mm
Light spot direction Vertical 2)
Laser class II
Operating distance 20 mm ... 60 mm
Adjustment Teach-in button
Teach-in mode Static 2-point teach-in
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption < 35 mA 3)
Switching frequency 1.5 kHz 4)
Response time 400 µs 5)
Switching output NPN
Switching output (voltage) NPN: HIGH = approx. VS / LOW = 2 V
Output current Imax. 100 mA
Input, teach-in (ET)
NPN
Teach: U < 2 V
Run: U = UV
Retention time (ET) 25 ms, non-volatile memory
Connection type Male connector M12, 4-pin
Protection class II 6)
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP67
Weight 11 g
Housing material ABS
