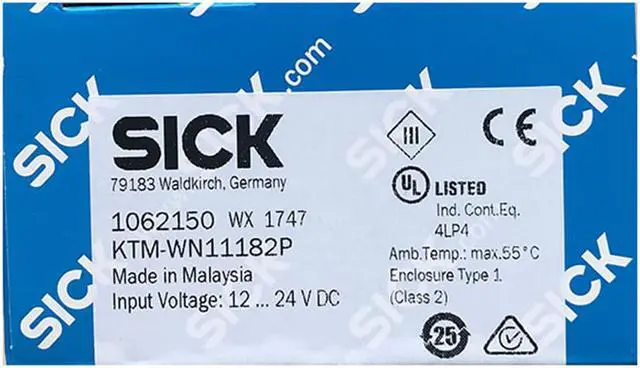

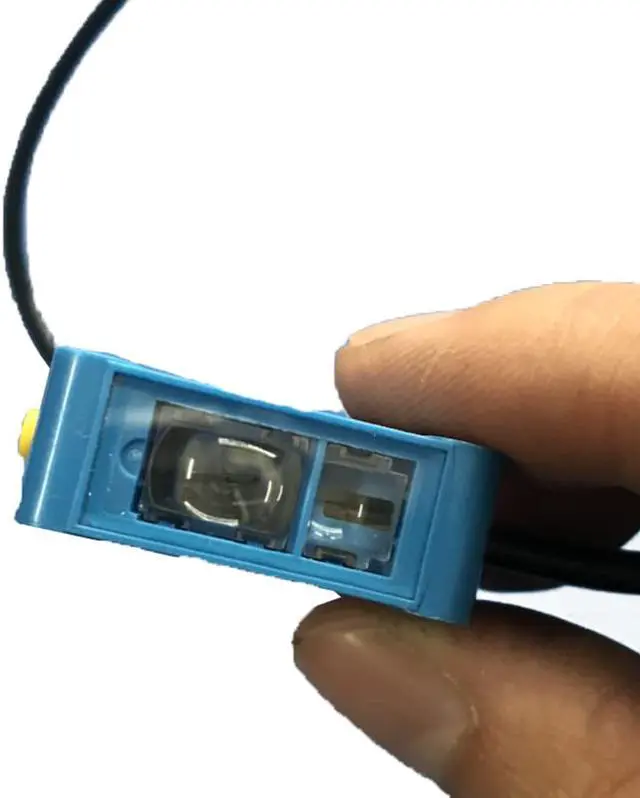

SICK KTM-WN11182P Contrast Sensors,NPN New
- SICK KTM-WN11182P Contrast Sensors,NPN New
+
+
Overview
Specs
Reviews
FEATURES

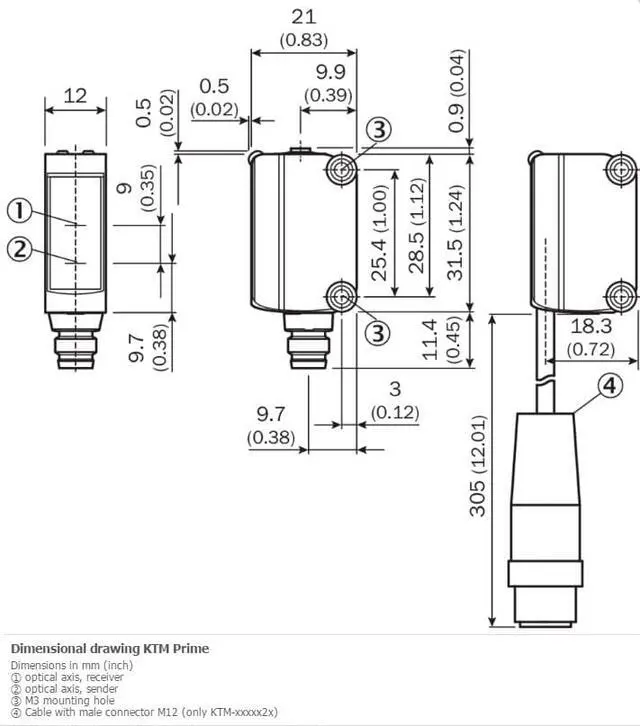

Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Sensing distance 12.5 mm
Sensing distance tolerance ± 3 mm
Housing design (light emission) Rectangular
Light source LED, RGB 1)
Wave length 470 nm, 525 nm, 625 nm
Light spot size 1.5 mm x 6.5 mm
Light spot direction Vertical 2)
Adjustment Teach-in button
Teach-in mode 2-point teach-in static/dynamic + proximity to mark
Output function Light/dark switching
MECHANICS/ELECTRONICS
Supply voltage 12 V DC ... 24 V DC 1)
Ripple = 5 Vpp 2)
Power consumption < 50 mA 3)
Switching frequency 15 kHz 4)
Response time 32 µs 5)
Jitter 15 µs
Switching output NPN
Switching output (voltage) NPN: HIGH = approx. VS / LOW = 2 V
Switching output Light/dark switching
Output current Imax. 50 mA 6)
Input, dynamic teach-in (ET)
NPN: Teach: U < 2 V
Run: UV - 2 V or open
Retention time (ET) 28 ms, non-volatile memory
Connection type Cable with M12 male connector, 4-pin, 0.2 m
Protection class III
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP67
Weight 70 g
Housing material ABS
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Sensing distance 12.5 mm
Sensing distance tolerance ± 3 mm
Housing design (light emission) Rectangular
Light source LED, RGB 1)
Wave length 470 nm, 525 nm, 625 nm
Light spot size 1.5 mm x 6.5 mm
Light spot direction Vertical 2)
Adjustment Teach-in button
Teach-in mode 2-point teach-in static/dynamic + proximity to mark
Output function Light/dark switching
MECHANICS/ELECTRONICS
Supply voltage 12 V DC ... 24 V DC 1)
Ripple = 5 Vpp 2)
Power consumption < 50 mA 3)
Switching frequency 15 kHz 4)
Response time 32 µs 5)
Jitter 15 µs
Switching output NPN
Switching output (voltage) NPN: HIGH = approx. VS / LOW = 2 V
Switching output Light/dark switching
Output current Imax. 50 mA 6)
Input, dynamic teach-in (ET)
NPN: Teach: U < 2 V
Run: UV - 2 V or open
Retention time (ET) 28 ms, non-volatile memory
Connection type Cable with M12 male connector, 4-pin, 0.2 m
Protection class III
Circuit protection
UV connections, reverse polarity protected
Output Q short-circuit protected
Interference pulse suppression
Enclosure rating IP67
Weight 70 g
Housing material ABS
