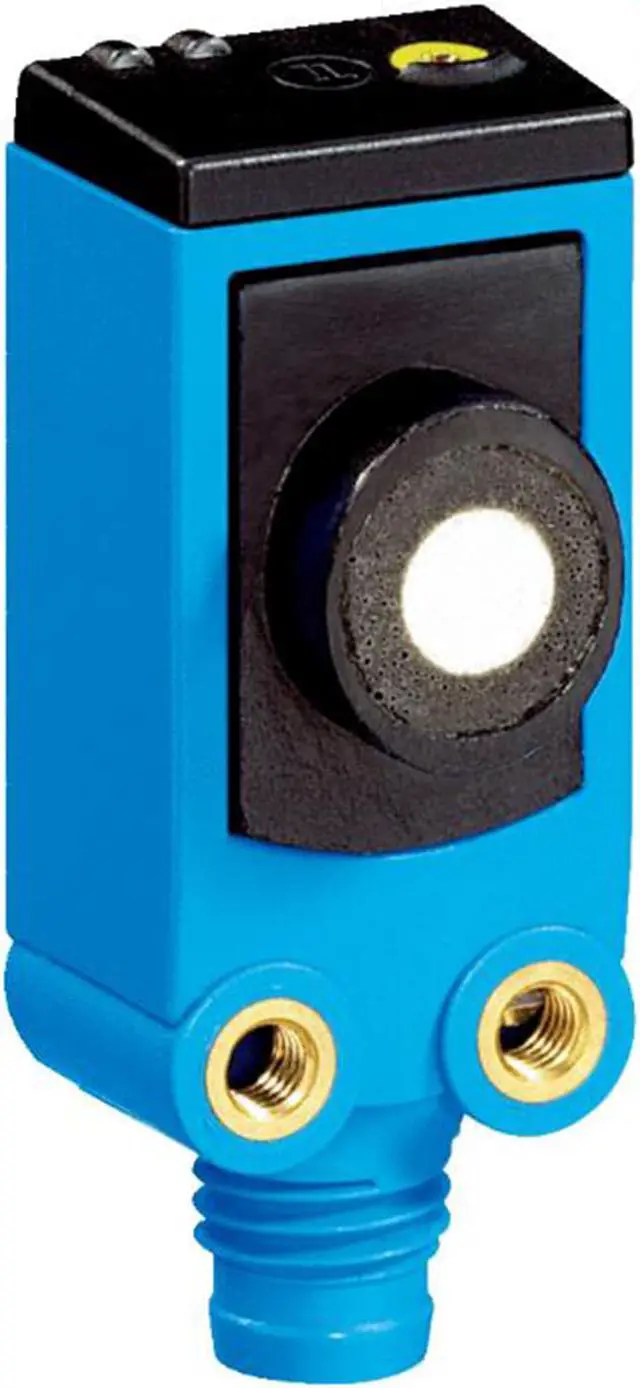

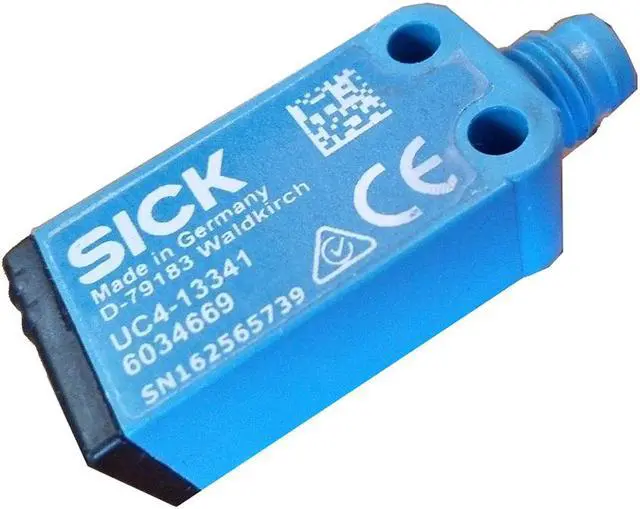

SICK UC4-13341 Ultrasonic Sensors New
- SICK UC4-13341 Ultrasonic Sensors New
+
+
Overview
Specs
Reviews
PERFORMANCE
Operating range, limiting range 13 mm ... 150 mm, 250 mm 1)
Target Natural objects
Resolution = 0.1 mm
Repeatability ± 0.15 % 2)
Accuracy ± 1 % 2)
Temperature compensation ?
Response time 24 ms
Switching frequency 30 Hz
Output time 8 ms
Ultrasonic frequency (typical) 380 kHz
Detection area (typical) See diagrams
Additional function Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB), teach-in of switching output, Invertable switching output, reset to factory default
3)
MECHANICS/ELECTRONICS
Supply voltage Vs DC 15 V ... 30 V 1)
Power consumption = 0.75 W 2)
Initialization time < 300 ms
Design Rectangular
Housing material
ABS-plastic
Ultrasonic transducer: polyurethane foam, glass epoxy resin
Connection type Male connector, M8, 3-pin
Indication 2 x LED
Weight 10 g
Sending axis Straight
Enclosure rating IP67
Protection class III
Operating range, limiting range 13 mm ... 150 mm, 250 mm 1)
Target Natural objects
Resolution = 0.1 mm
Repeatability ± 0.15 % 2)
Accuracy ± 1 % 2)
Temperature compensation ?
Response time 24 ms
Switching frequency 30 Hz
Output time 8 ms
Ultrasonic frequency (typical) 380 kHz
Detection area (typical) See diagrams
Additional function Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB), teach-in of switching output, Invertable switching output, reset to factory default
3)
MECHANICS/ELECTRONICS
Supply voltage Vs DC 15 V ... 30 V 1)
Power consumption = 0.75 W 2)
Initialization time < 300 ms
Design Rectangular
Housing material
ABS-plastic
Ultrasonic transducer: polyurethane foam, glass epoxy resin
Connection type Male connector, M8, 3-pin
Indication 2 x LED
Weight 10 g
Sending axis Straight
Enclosure rating IP67
Protection class III
