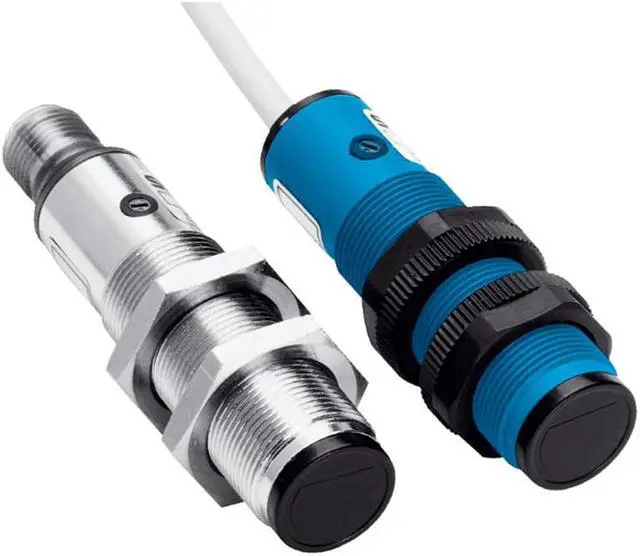

SICK VTE18-3E8312 Photoelectric proximity sensor ,NPN New
- SICK VTE18-3E8312 Photoelectric proximity sensor ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 60.6 mm
Housing design (light emission) Cylindrical, angled
Sensing range max. 10 mm ... 800 mm 1)
Sensing range 10 mm ... 700 mm 1)
Type of light Infrared light
Light source LED
Angle of dispersion 2.8°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output NPN
Switching mode Light switching
Response time = 2 ms 2)
Connection type Cable, 2 m 3)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.1 mm
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor
Dimensions (W x H x D) 60.6 mm
Housing design (light emission) Cylindrical, angled
Sensing range max. 10 mm ... 800 mm 1)
Sensing range 10 mm ... 700 mm 1)
Type of light Infrared light
Light source LED
Angle of dispersion 2.8°
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output NPN
Switching mode Light switching
Response time = 2 ms 2)
Connection type Cable, 2 m 3)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.1 mm
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
