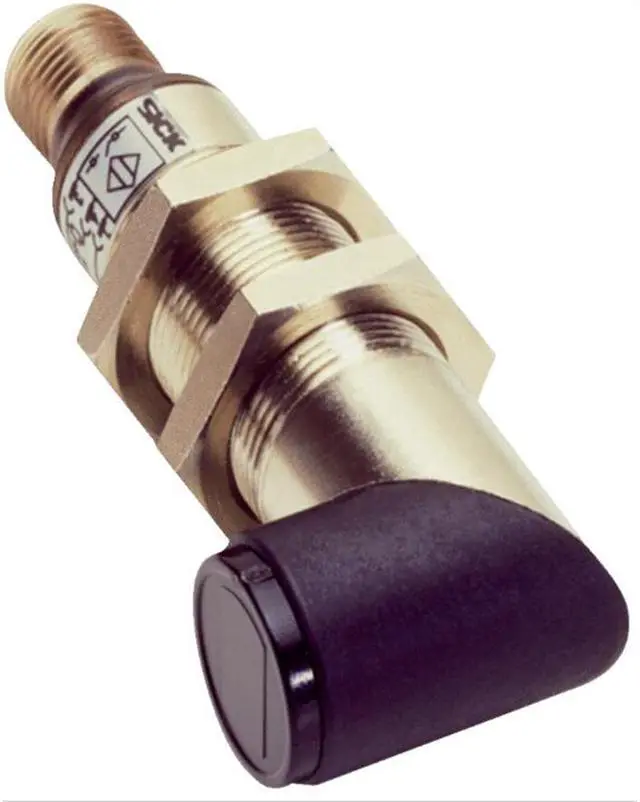

SICK VTE18-4N2412 Photoelectric proximity sensor ,NPN New
- SICK VTE18-4N2412 Photoelectric proximity sensor ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical

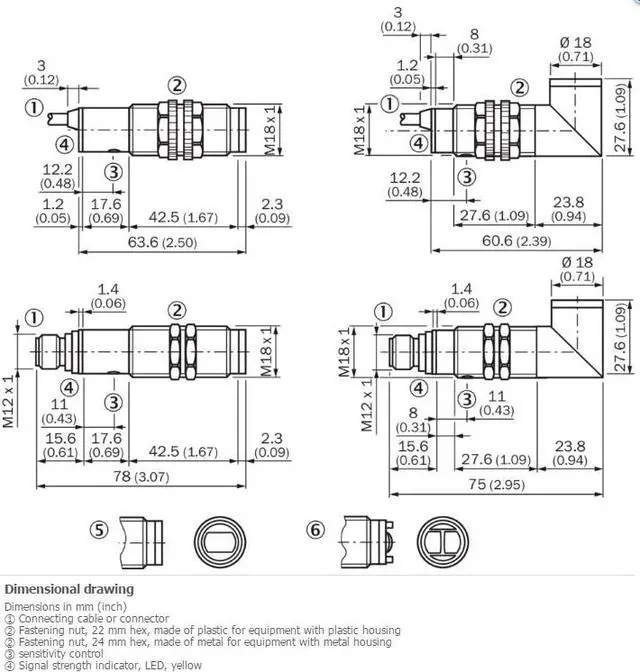

Housing length 60.6 mm
Thread diameter (housing) M18 x 1
Optical axis Radial
Sensing range max. 3 mm ... 200 mm 1)
Sensing range 3 mm ... 170 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 10 mm (200 mm)
Angle of dispersion Approx. 2.8°
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output NPN 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Cable, 4-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 5 mm
Circuit protection
A 8)
B 9)
C 10)
D 11)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical
Housing length 60.6 mm
Thread diameter (housing) M18 x 1
Optical axis Radial
Sensing range max. 3 mm ... 200 mm 1)
Sensing range 3 mm ... 170 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 10 mm (200 mm)
Angle of dispersion Approx. 2.8°
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output NPN 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Cable, 4-wire, 2 m 7)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 5 mm
Circuit protection
A 8)
B 9)
C 10)
D 11)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
