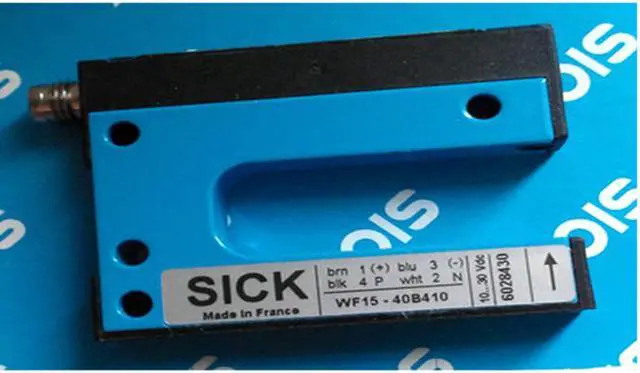

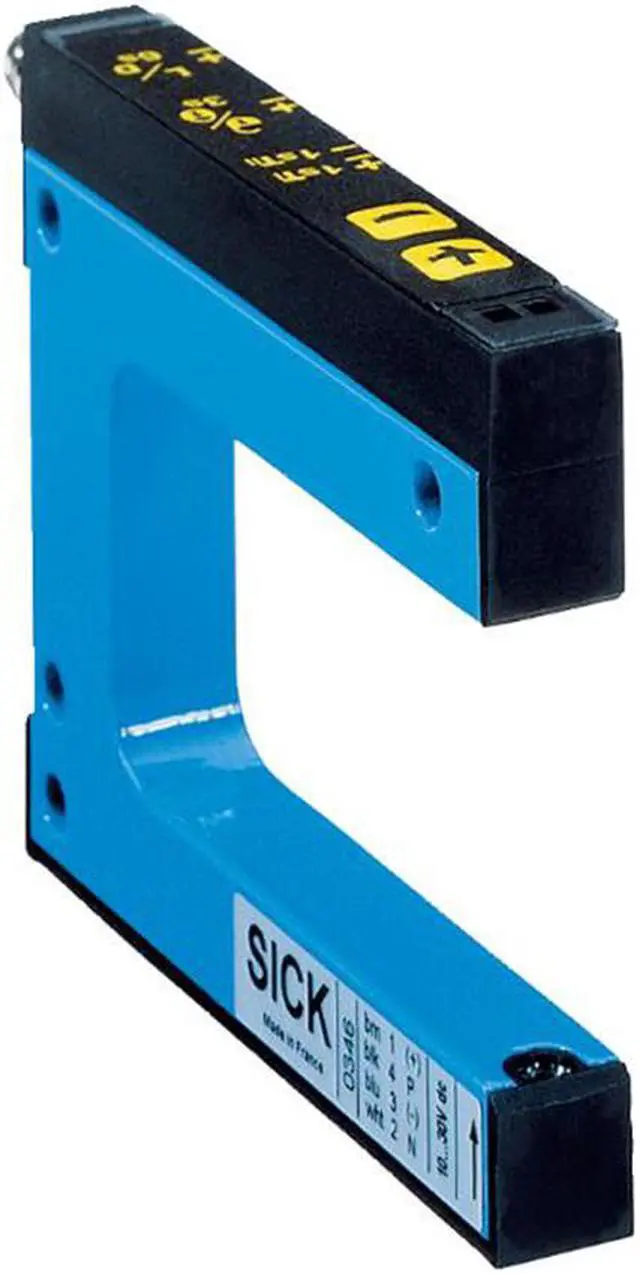

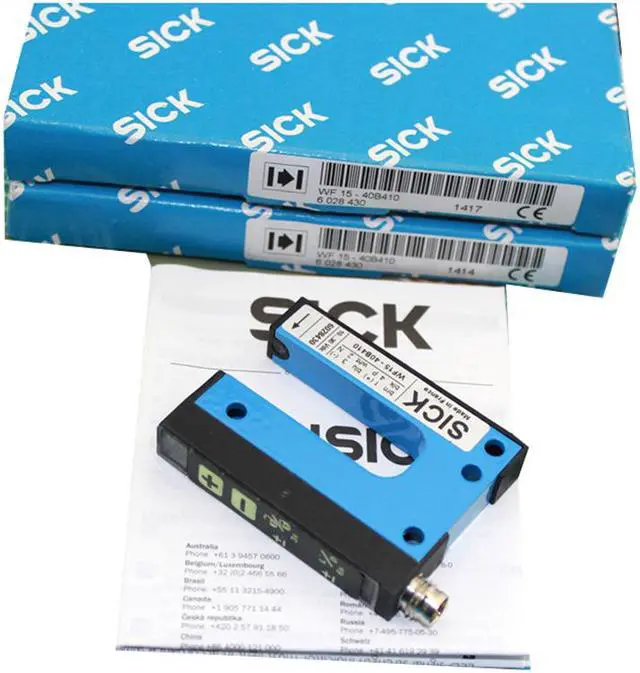

SICK WF15-40B410 Optical Detection Principle ,NPN ,PNP,New
- SICK WF15-40B410 Optical Detection Principle ,NPN ,PNP,New
+
+
Overview
Specs
Reviews

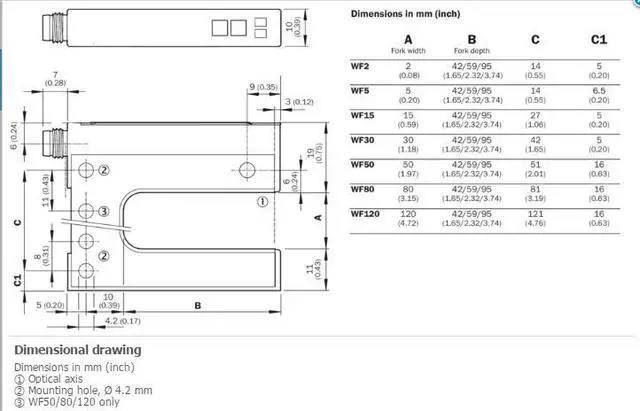

FEATURES Functional principle Optical detection principle Dimensions (W x H x D) 10 mm x 45 mm x 57 mm Housing design (light emission) Fork shaped Fork width 15 mm Fork depth 42 mm Minimum detectable object (MDO) 0.2 mm Label detection? Light source LED, Infrared light Adjustment Plus/minus button (Sensitivity, light/dark switching, key lock) Teach-in mode — Output function Light/darkswitching, selectable via button MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 10 % 2) Power consumption 40 mA Switching frequency 10 kHz 3) Response time 100 µs Stability of response time ± 20 µs Jitter 40 µs Switching output PNP/NPN Switching output (voltage)
PNP: HIGH = VS– = 2 V / LOW approx.
0 V NPN: HIGH = approx. VS / LOW = 2 V Switching output Light/dark switching Output current Imax. 100 mA Initialization time 100 ms Connection type Male connector M8, 4-pin Ambient light immunity
Sunlight: = 10, 000 lx Protection class III 4) Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 36 g... 160 g 5) Housing material Aluminum
PNP: HIGH = VS– = 2 V / LOW approx.
0 V NPN: HIGH = approx. VS / LOW = 2 V Switching output Light/dark switching Output current Imax. 100 mA Initialization time 100 ms Connection type Male connector M8, 4-pin Ambient light immunity
Sunlight: = 10, 000 lx Protection class III 4) Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP65 Weight Approx. 36 g... 160 g 5) Housing material Aluminum
