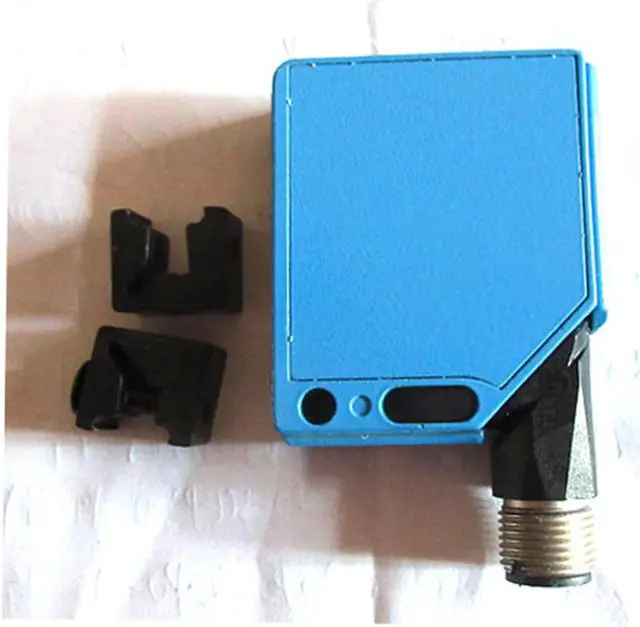

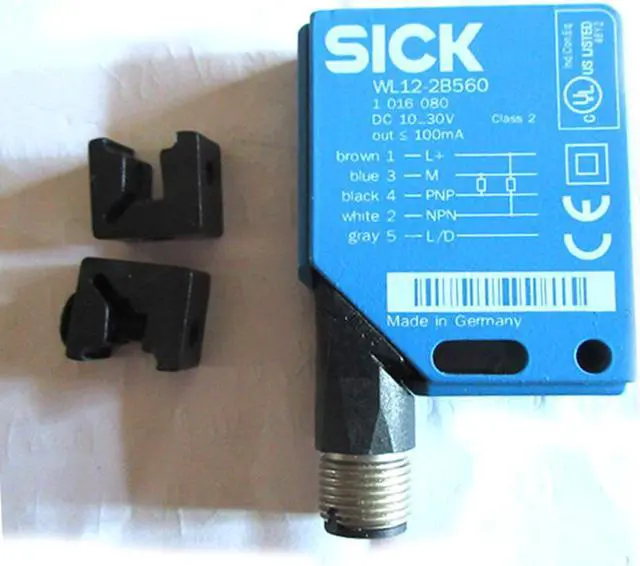

SICK WL12-2B560 Photoelectric Retro-reflective Sensor New
- SICK WL12-2B560 Photoelectric Retro-reflective Sensor New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor

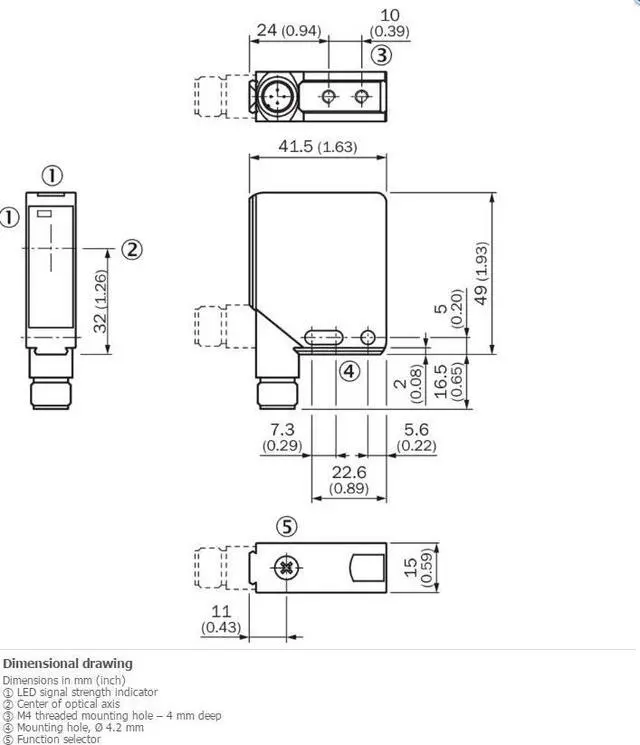

Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 4 m 1)
Sensing range 0 m ... 3.5 m 1)
Type of light Visible red light
Light source LED
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 5 Vpp
Power consumption = 30 mA 1)
Switching mode Light/dark switching 2)
Response time = 330 µs 3)
Connection type Male connector M12, 5-pin
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric retro-reflective sensor
Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 4 m 1)
Sensing range 0 m ... 3.5 m 1)
Type of light Visible red light
Light source LED
Adjustment Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 5 Vpp
Power consumption = 30 mA 1)
Switching mode Light/dark switching 2)
Response time = 330 µs 3)
Connection type Male connector M12, 5-pin
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
