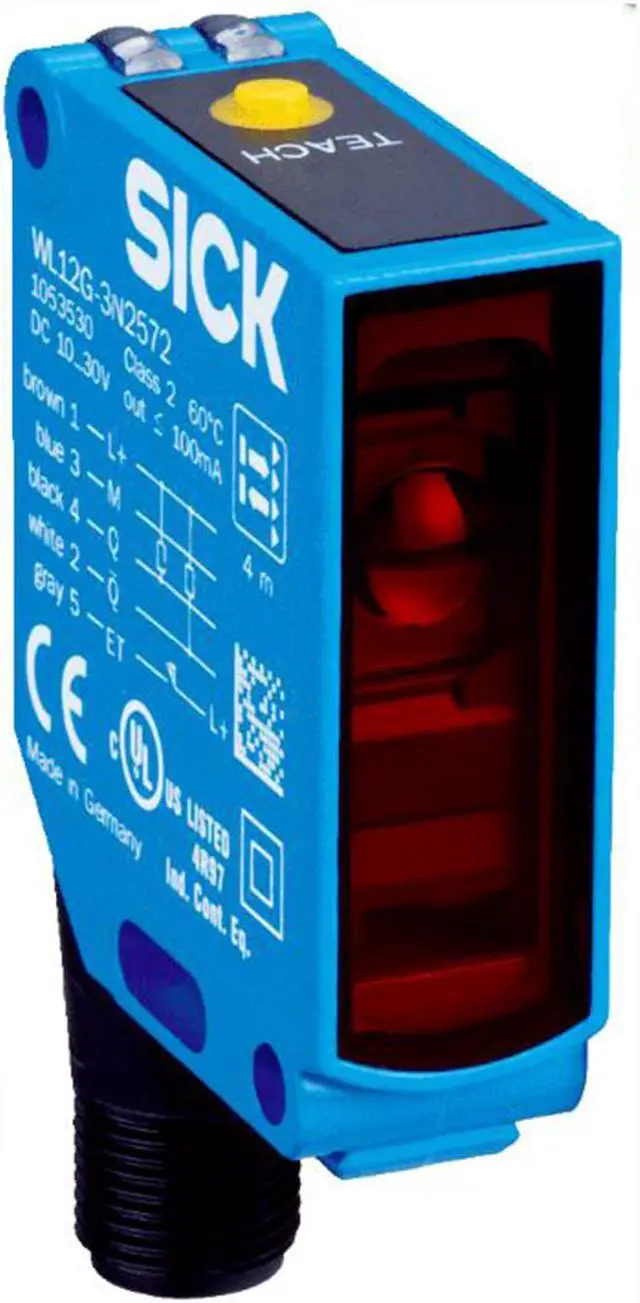

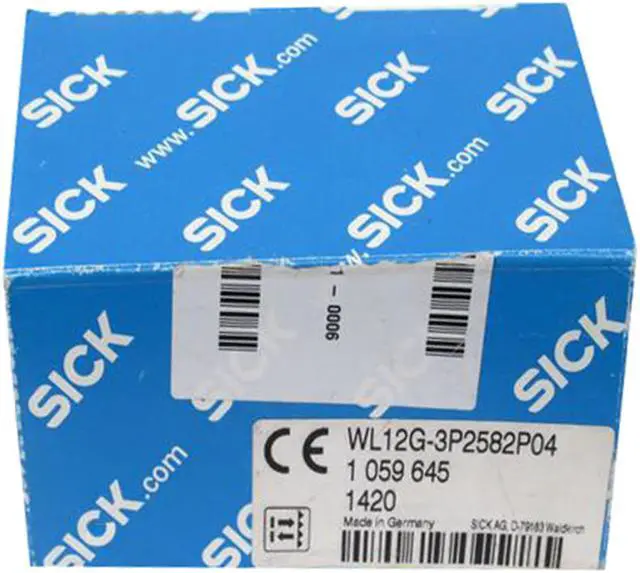

SICK WL12G-3P2582P04 Small Photoelectric Sensors PNP,New
- SICK WL12G-3P2582P04 Small Photoelectric Sensors PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor

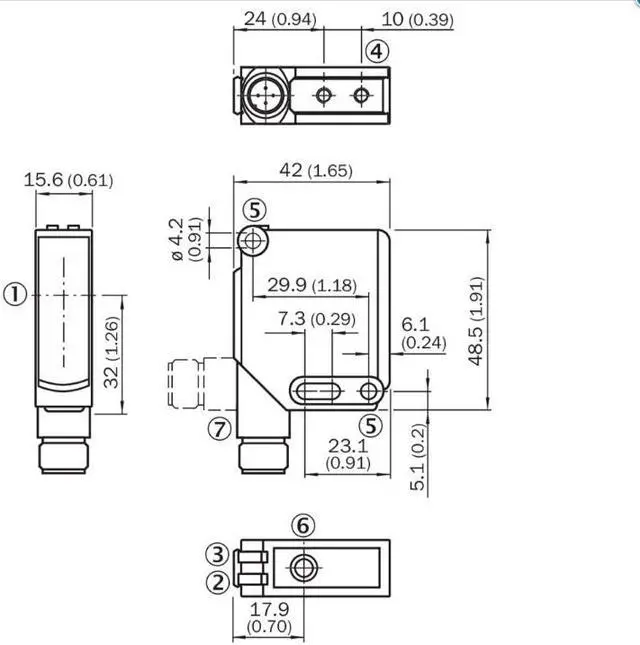

Dimensions (W x H x D) 15.5 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 3 m 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 25 mm (1.5 m)
Wave length 850 nm
Adjustment
Cable
Single teach-in button
Special applications Detecting transparent objects
Special features
Without CTA function
With time delay toff 50 ms
Different functions selectable by teach-in. Function 1 = Sensitivity adjustment. Function 2 = Operation mode selection (Mode I = 40 %, Mode II = 18 %, Mode III = 10 %). Function 3 = change pin 4 and pin 2 assignments
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 40 mA 3)
Switching output PNP 4)
Switching mode Light switching 4)
Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V
Output current Imax. 100 mA
Response time = 333 µs 5)
Switching frequency 1,500 Hz 6)
Connection type Male connector M12, 5-pin
Circuit protection
A 7)
B
C 8)
D 9)
Protection class III
Weight 120 g
Polarisation filter ?
Special device ?
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
Items supplied Further details can be found in the operating instructions 8015091
Special feature Detecting transparent objects
Operating mode Mode I, 40 % attenuation, Mode II, 18 % attenuation, Mode III, 10 % attenuation
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric retro-reflective sensor
Dimensions (W x H x D) 15.5 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 3 m 1)
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 25 mm (1.5 m)
Wave length 850 nm
Adjustment
Cable
Single teach-in button
Special applications Detecting transparent objects
Special features
Without CTA function
With time delay toff 50 ms
Different functions selectable by teach-in. Function 1 = Sensitivity adjustment. Function 2 = Operation mode selection (Mode I = 40 %, Mode II = 18 %, Mode III = 10 %). Function 3 = change pin 4 and pin 2 assignments
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 40 mA 3)
Switching output PNP 4)
Switching mode Light switching 4)
Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V
Output current Imax. 100 mA
Response time = 333 µs 5)
Switching frequency 1,500 Hz 6)
Connection type Male connector M12, 5-pin
Circuit protection
A 7)
B
C 8)
D 9)
Protection class III
Weight 120 g
Polarisation filter ?
Special device ?
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
Items supplied Further details can be found in the operating instructions 8015091
Special feature Detecting transparent objects
Operating mode Mode I, 40 % attenuation, Mode II, 18 % attenuation, Mode III, 10 % attenuation
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
