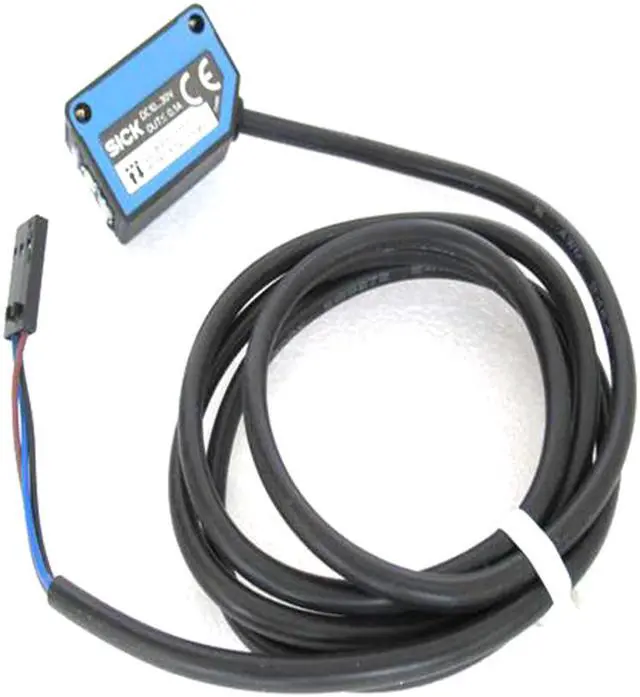

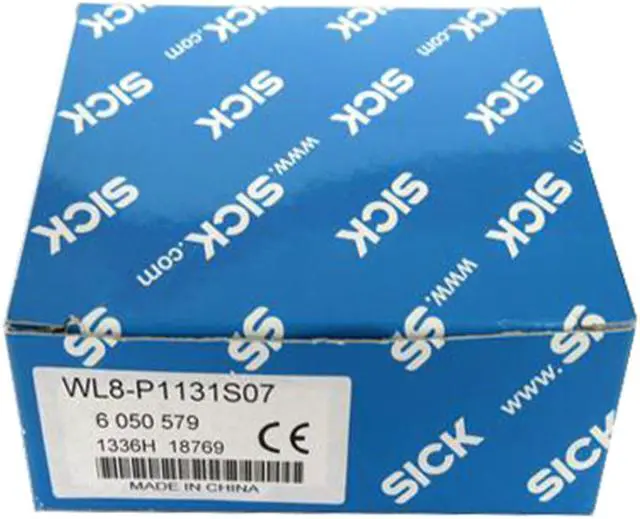

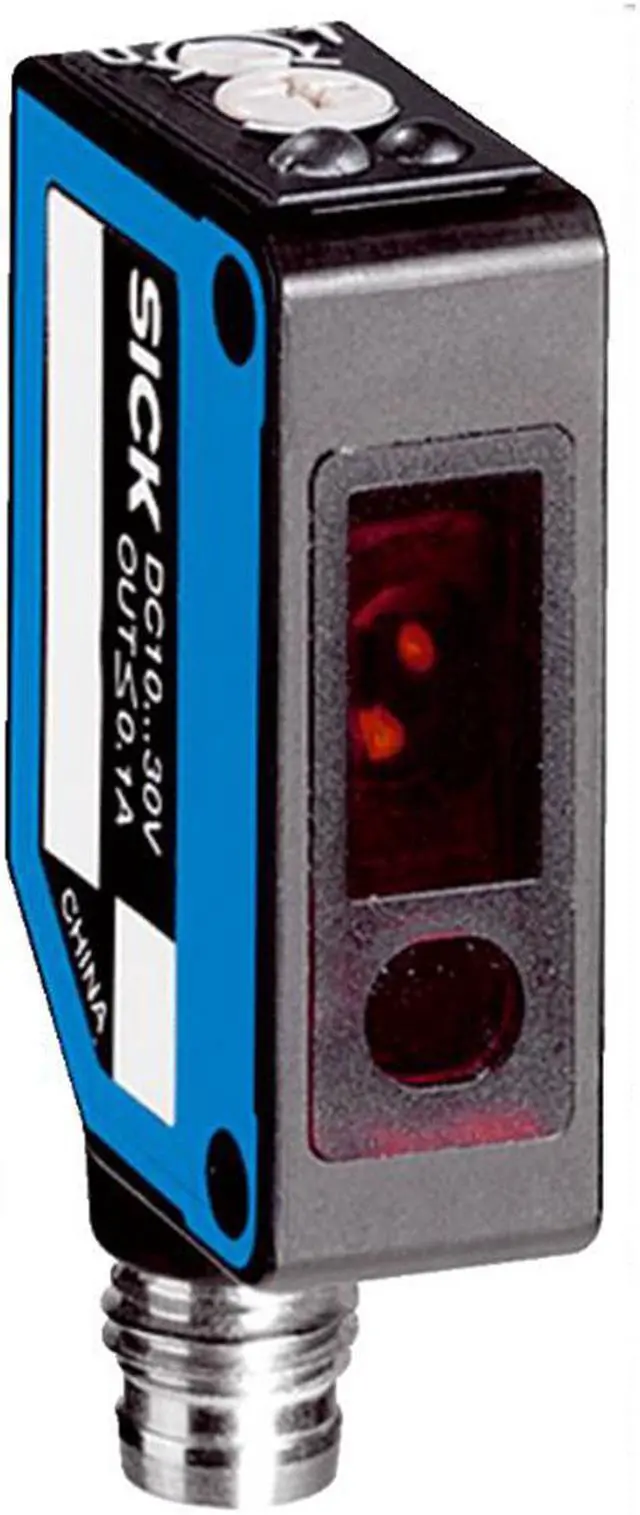

SICK WL8-P1131S07 Photoelectric Retro-reflective Sensor,PNP,New
- SICK WL8-P1131S07 Photoelectric Retro-reflective Sensor,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation

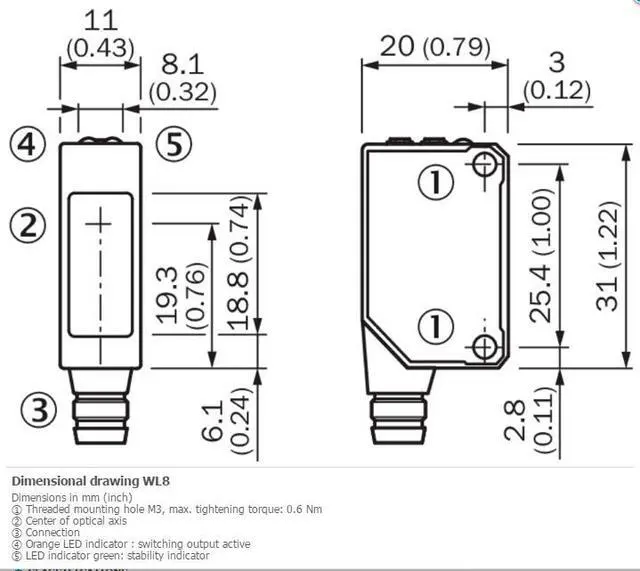

Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 4 m 1)
Sensing range 0 m ... 3 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 30 mm (1 m)
Wave length 650 nm
Adjustment Potentiometer, 270°
Special applications Detection of objects moving at high speeds
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW Approx. VS – 1.8 V / 0 V
Output current Imax. = 100 mA
Response time = 0.25 ms 4)
Switching frequency 2,000 Hz 5)
Connection type Cable with Tyco connector, 990 mm 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Weight 50 g
Polarisation filter ?
Special device ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 4 m 1)
Sensing range 0 m ... 3 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 30 mm (1 m)
Wave length 650 nm
Adjustment Potentiometer, 270°
Special applications Detection of objects moving at high speeds
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW Approx. VS – 1.8 V / 0 V
Output current Imax. = 100 mA
Response time = 0.25 ms 4)
Switching frequency 2,000 Hz 5)
Connection type Cable with Tyco connector, 990 mm 6)
Cable material PVC
Circuit protection
A 7)
B 8)
D 9)
Weight 50 g
Polarisation filter ?
Special device ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
