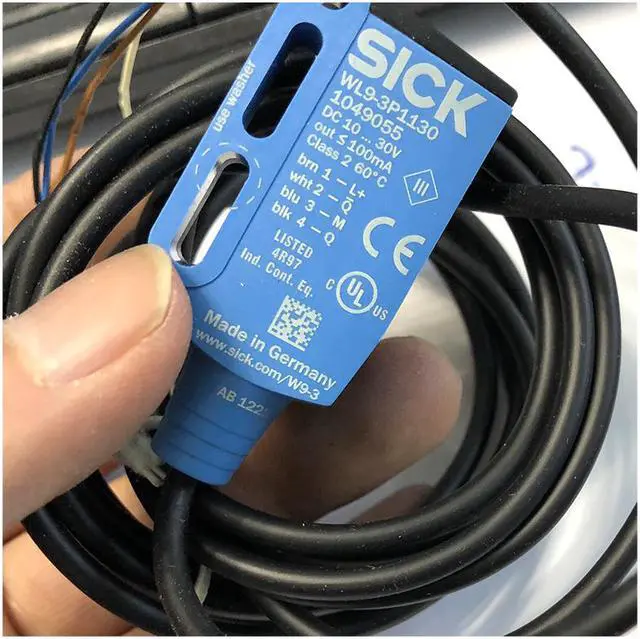

SICK WL9-3P1130 Small Photoelectric Sensors PNP,New
- SICK WL9-3P1130 Small Photoelectric Sensors PNP,New
+
+
Overview
Specs
Reviews

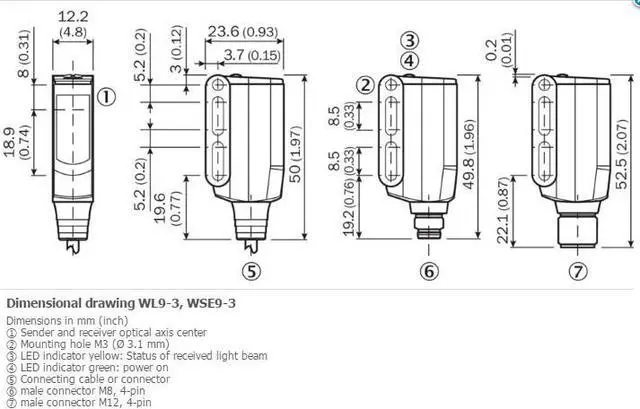

FEATURES Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation Dimensions (W x H x D) 12.2 mm x 50 mm x 23.6 mm Housing design (light emission) Rectangular Mounting hole M3 Sensing range max. 0 m... 4 m 1) Sensing range 0 m... 2.5 m 1) Type of light Visible red light Light source PinPoint LED 2) Light spot size (distance) Ø 45 mm ( 1.5 m) Wave length 650 nm Adjustment None MECHANICS/ELECTRONICS Supply voltage 10 V DC... 30 V DC 1) Ripple < 5 Vpp 2) Power consumption 30 mA 3) Switching output PNP 4) Output function Complementary Switching mode Light/dark switching 4) Output current Imax.
= 100 mA 5) Response time < 0.5 ms 6) Switching frequency 1, 000 Hz 7) Connection type Cable, 4-wire, 2 m 8) Cable material PVC Conductor cross-section 0.14 mm² Circuit protection A 9) B 10) C 11) Protection class III Weight 80 g Polarisation filter? Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 IP69K Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493
= 100 mA 5) Response time < 0.5 ms 6) Switching frequency 1, 000 Hz 7) Connection type Cable, 4-wire, 2 m 8) Cable material PVC Conductor cross-section 0.14 mm² Circuit protection A 9) B 10) C 11) Protection class III Weight 80 g Polarisation filter? Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 IP69K Ambient operating temperature –40 °C... +60 °C Ambient storage temperature –40 °C... +75 °C UL File No. NRKH. E181493
