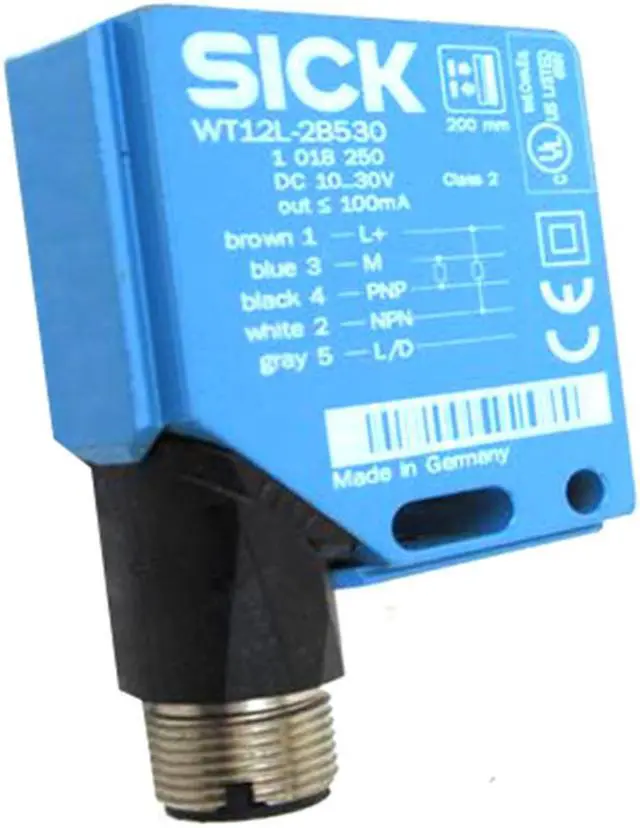

SICK WT12L-2B530 Small Photoelectric Sensors ,NPN ,PNP,New
- SICK WT12L-2B530 Small Photoelectric Sensors ,NPN ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

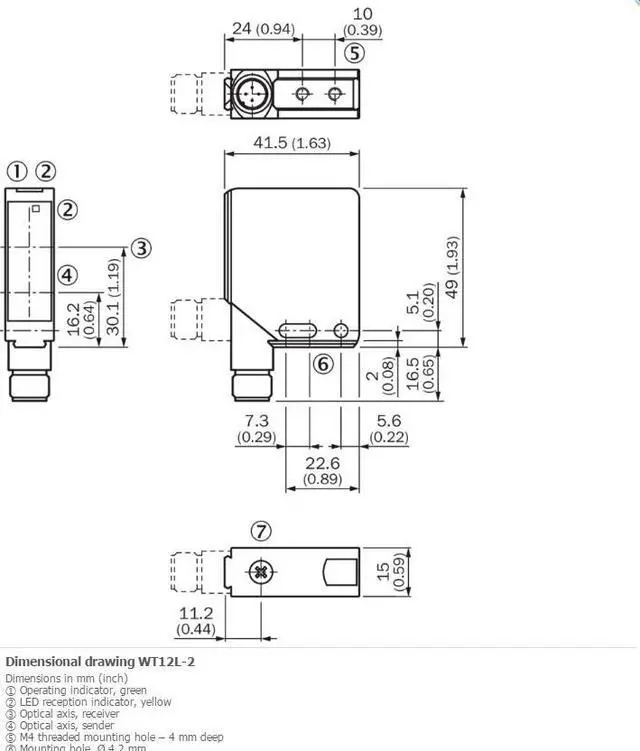

Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission) Rectangular
Sensing range max. 30 mm ... 200 mm 1)
Focus 45 mm
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) Ø 0.1 mm (45 mm)
Wave length 650 nm
Laser class 2 (EN 60825-1:2014, IEC 60825-1:2007) 3)
Adjustment Potentiometer
Special applications Detecting small objects, Detection of objects moving at high speeds
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 55 mA 3)
Switching output
PNP 4)
NPN 5)
Switching mode
Light switching 4)
Dark switching 5)
Switching mode selector Selectable via L/D control cable
Signal voltage PNP HIGH/LOW Uv - < 2 V, Uv / 0 V, <= 1.5 V
Signal voltage NPN HIGH/LOW Uv - < 2 V, Uv / 0 V, <= 1.5 V
Output current Imax. 100 mA
Response time = 200 µs 6)
Switching frequency 2,500 Hz 7)
Connection type Male connector M12, 5-pin
Circuit protection
A 8)
C 9)
D 10)
Protection class III
Weight 130 g
Housing material Metal
Optics material Plastic, PMMA
Enclosure rating
IP67
IP69K
Items supplied 2 x clamps incl. screws
Ambient operating temperature –10 °C ... +50 °C
Ambient storage temperature –25 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15 mm x 49 mm x 41.5 mm
Housing design (light emission) Rectangular
Sensing range max. 30 mm ... 200 mm 1)
Focus 45 mm
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) Ø 0.1 mm (45 mm)
Wave length 650 nm
Laser class 2 (EN 60825-1:2014, IEC 60825-1:2007) 3)
Adjustment Potentiometer
Special applications Detecting small objects, Detection of objects moving at high speeds
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 55 mA 3)
Switching output
PNP 4)
NPN 5)
Switching mode
Light switching 4)
Dark switching 5)
Switching mode selector Selectable via L/D control cable
Signal voltage PNP HIGH/LOW Uv - < 2 V, Uv / 0 V, <= 1.5 V
Signal voltage NPN HIGH/LOW Uv - < 2 V, Uv / 0 V, <= 1.5 V
Output current Imax. 100 mA
Response time = 200 µs 6)
Switching frequency 2,500 Hz 7)
Connection type Male connector M12, 5-pin
Circuit protection
A 8)
C 9)
D 10)
Protection class III
Weight 130 g
Housing material Metal
Optics material Plastic, PMMA
Enclosure rating
IP67
IP69K
Items supplied 2 x clamps incl. screws
Ambient operating temperature –10 °C ... +50 °C
Ambient storage temperature –25 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
