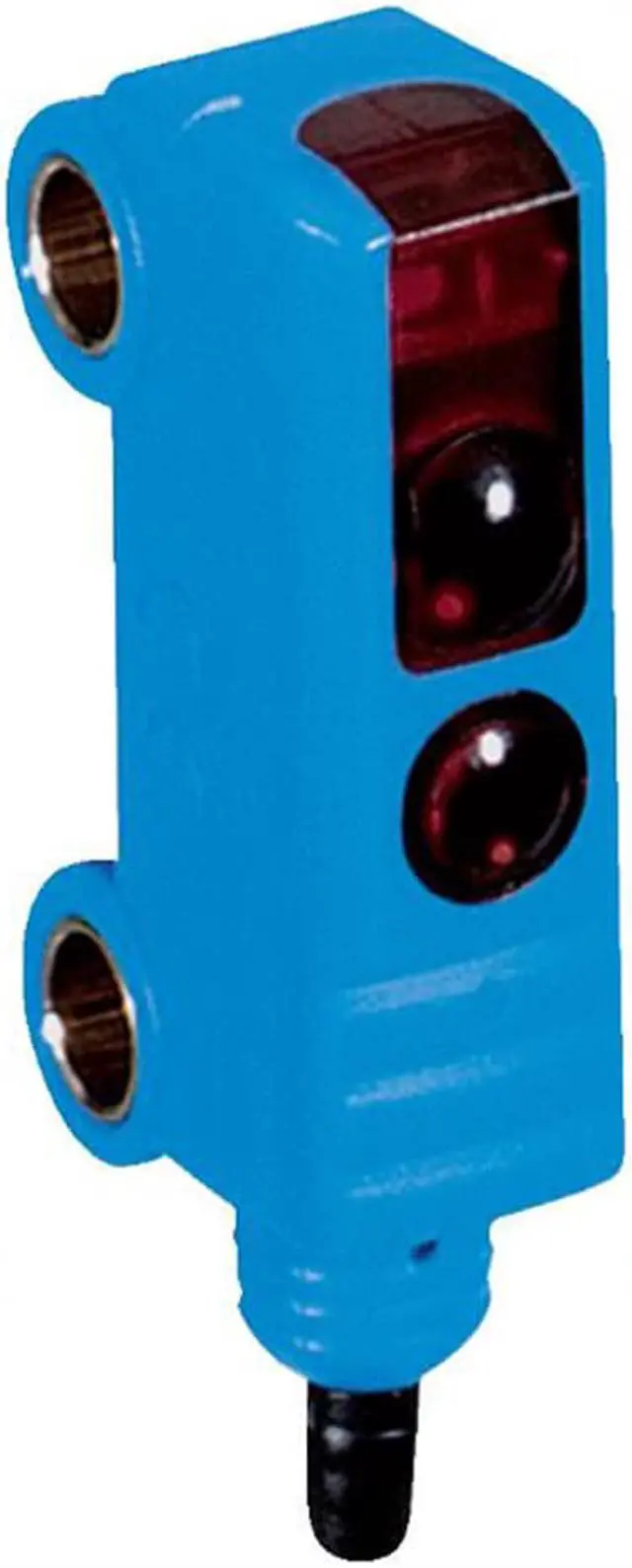

SICK WT2S-P231 Photoelectric Proximity Sensor ,PNP,New
- SICK WT2S-P231 Photoelectric Proximity Sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

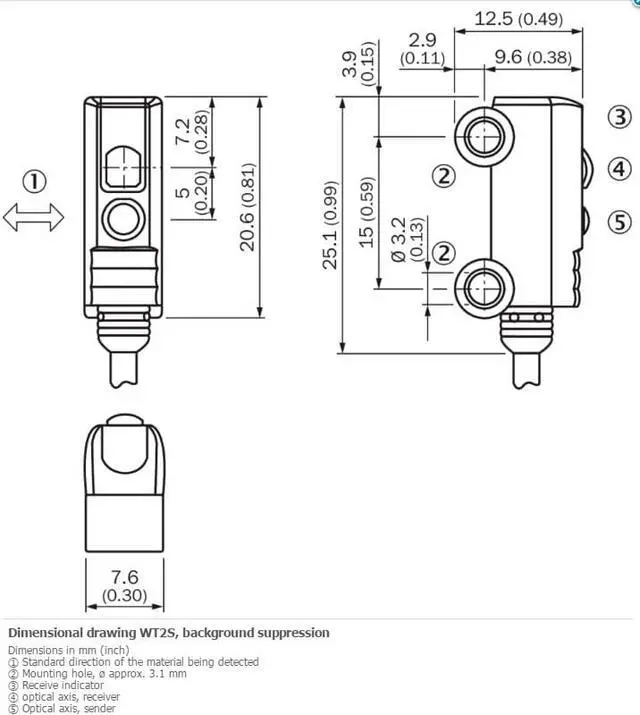

Dimensions (W x H x D) 7.6 mm x 25.1 mm x 12.5 mm
Housing design (light emission) Rectangular
Sensing range max. 1 mm ... 30 mm 1)
Sensing range 1 mm ... 30 mm 1)
Focus 15 mm
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 1.5 mm (15 mm)
Wave length 660 nm
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Switching output PNP
Switching mode Light switching
Output current Imax. = 50 mA
Response time < 0.6 ms 3)
Switching frequency 800 Hz 4)
Connection type Cable with connector M8, 3-pin, 200 mm 5)
Cable material PVC
Cable diameter Ø 2.4 mm
Circuit protection
A 6)
C 7)
D 8)
Weight 20 g
Reverse polarity protection ?
Short-circuit protection ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP69K
Ambient operating temperature –20 °C ... +50 °C
Ambient storage temperature –40 °C ... +75 °C
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 7.6 mm x 25.1 mm x 12.5 mm
Housing design (light emission) Rectangular
Sensing range max. 1 mm ... 30 mm 1)
Sensing range 1 mm ... 30 mm 1)
Focus 15 mm
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 1.5 mm (15 mm)
Wave length 660 nm
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Switching output PNP
Switching mode Light switching
Output current Imax. = 50 mA
Response time < 0.6 ms 3)
Switching frequency 800 Hz 4)
Connection type Cable with connector M8, 3-pin, 200 mm 5)
Cable material PVC
Cable diameter Ø 2.4 mm
Circuit protection
A 6)
C 7)
D 8)
Weight 20 g
Reverse polarity protection ?
Short-circuit protection ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP69K
Ambient operating temperature –20 °C ... +50 °C
Ambient storage temperature –40 °C ... +75 °C
