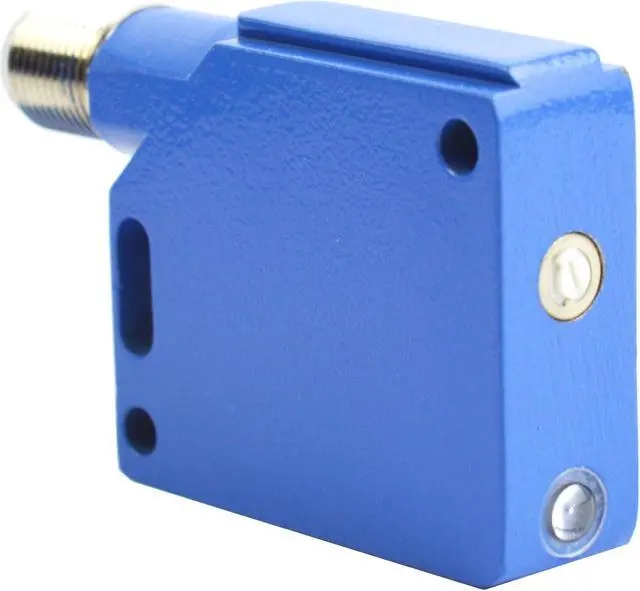

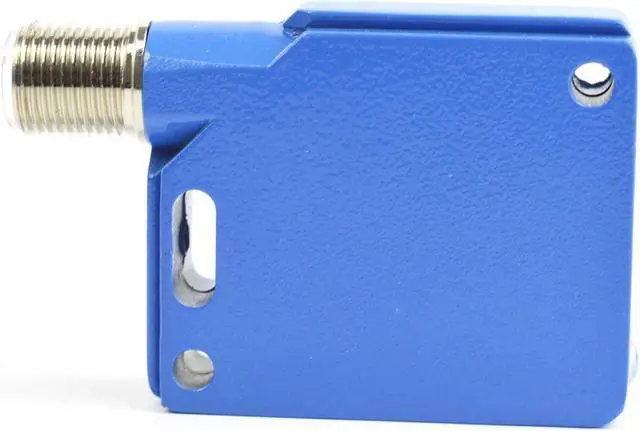

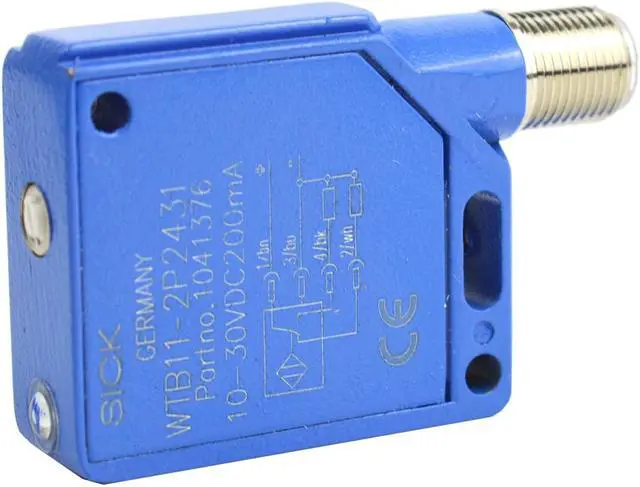

SICK WTB11-2P2431 Photoelectric proximity sensor PNP,New
- SICK WTB11-2P2431 Photoelectric proximity sensor PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm... 350 mm 1)
Sensing range 20 mm... 350 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 6 mm (200 mm)
Wave length 640 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Uv - 2.5 V / approx. 0 V
Output current Imax. 100 mA
Response time = 2.5 ms 4)
Switching frequency 200 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Ambient operating temperature 30 °C... +60 °C
Ambient storage temperature 40 °C... +75 °C
UL File No. NRKH. E181493 & NRKH7. E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm... 350 mm 1)
Sensing range 20 mm... 350 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 6 mm (200 mm)
Wave length 640 nm
Adjustment Potentiometer, 5 turns
MECHANICS/ELECTRONICS
Supply voltage 10 V DC... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 30 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Uv - 2.5 V / approx. 0 V
Output current Imax. 100 mA
Response time = 2.5 ms 4)
Switching frequency 200 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
IP69K
Ambient operating temperature 30 °C... +60 °C
Ambient storage temperature 40 °C... +75 °C
UL File No. NRKH. E181493 & NRKH7. E181493
