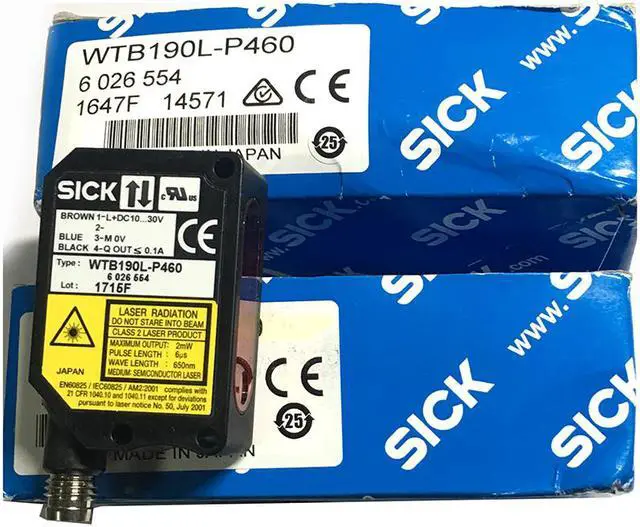

SICK WTB190L-P460 Photoelectric Proximity Sensor PNP,New
- SICK WTB190L-P460 Photoelectric Proximity Sensor PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15 mm x 44.4 mm x 30 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 300 mm 1)
Type of light Visible red light
Light source Laser
Light spot size (distance) Ø 2.5 mm (200 mm)
Laser class 2
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 40 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Output current Imax. < 100 mA
Response time 0.7 ms 4)
Switching frequency 700 Hz 5)
Connection type Male connector M8, 4-pin
Circuit protection
A 6)
D 7)
Protection class III 8)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Tightening torque, max. 0.5 Nm
Enclosure rating IP67
Ambient operating temperature –10 °C ... +40 °C
Ambient storage temperature –20 °C ... +60 °C
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 15 mm x 44.4 mm x 30 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 300 mm 1)
Type of light Visible red light
Light source Laser
Light spot size (distance) Ø 2.5 mm (200 mm)
Laser class 2
Adjustment None
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 40 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Output current Imax. < 100 mA
Response time 0.7 ms 4)
Switching frequency 700 Hz 5)
Connection type Male connector M8, 4-pin
Circuit protection
A 6)
D 7)
Protection class III 8)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Tightening torque, max. 0.5 Nm
Enclosure rating IP67
Ambient operating temperature –10 °C ... +40 °C
Ambient storage temperature –20 °C ... +60 °C
