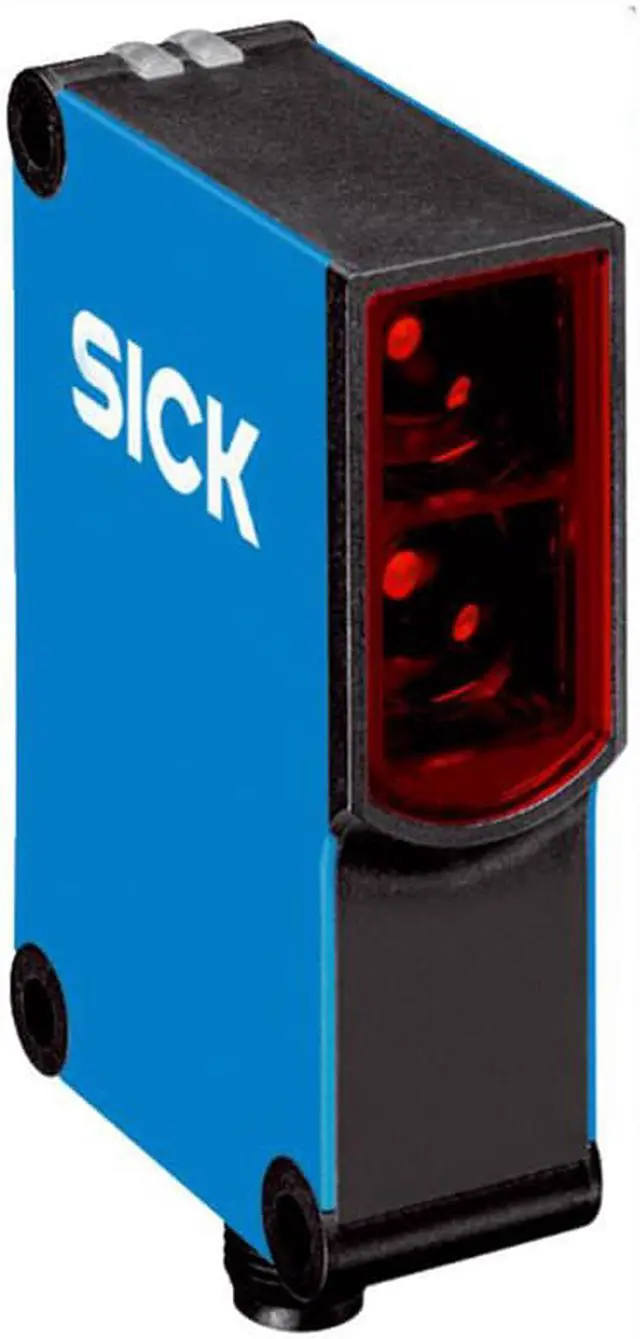

SICK WTB27-3P3741 Photoelectric Proximity Sensor ,PNP,New
- SICK WTB27-3P3741 Photoelectric Proximity Sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

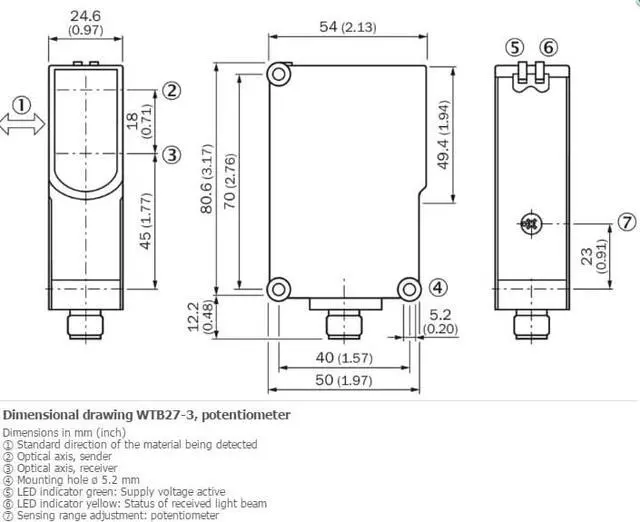

Dimensions (W x H x D) 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission) Rectangular
Sensing range max. 30 mm ... 1,100 mm 1)
Sensing range 100 mm ... 1,100 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 15 mm (500 mm)
Wave length 660 nm
Adjustment Potentiometer
Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V
Output current Imax. = 100 mA
Response time = 1.5 ms 4)
Switching frequency 350 Hz 5)
Connection type Cable with connector Q7, 7-pin, DC-coding, 150 mm
Cable material PVC
Circuit protection
A 6)
B 7)
C 8)
Protection class II 9)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 24.6 mm x 80.6 mm x 54 mm
Housing design (light emission) Rectangular
Sensing range max. 30 mm ... 1,100 mm 1)
Sensing range 100 mm ... 1,100 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 15 mm (500 mm)
Wave length 660 nm
Adjustment Potentiometer
Potentiometer
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V
Output current Imax. = 100 mA
Response time = 1.5 ms 4)
Switching frequency 350 Hz 5)
Connection type Cable with connector Q7, 7-pin, DC-coding, 150 mm
Cable material PVC
Circuit protection
A 6)
B 7)
C 8)
Protection class II 9)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP66
IP67
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
