Connect a USB 2.0 device to your computer over long distances using this single-port USB extender
1 Port USB 2.0 Over Cat5 or Cat6 Extender Kit
165ft (50m)
Metal housing for rugged durability
Cost-effective and compact
OS independent / Supports transfer rates of up to 480Mbps
Kit includes a local transmitter a remote receiver and a power adapter
USB to Ethernet Extender / Cost-Effective USB 2.0 Extender / USB over Ethernet Extender / USB over Ethernet Extender System
+
+
Overview
Specs
Reviews
Connect a USB 2.0 device to your computer over long distances using this single-
Learn more about the STARTECH USB2001EXTV
Model
Brand
StarTech.com
Model
USB2001EXTV
Details
Type
USB 2.0 over Ethernet
Max Extend Distance
164 feet
Color
Black
Cable Length
No
Specifications
Cabling: Cat 5 UTP or better Ports: 1 Max Distance: 50 m / 165 ft Maximum Data Transfer Rate: 480Mbps MTBF: 72,000 Hours OS Compatibility: OS Independent; No additional drivers or software required
System and Cable Requirements: A host computer with an available USB-A port (USB Type-A) Terminated RJ45 Cat5e or better Ethernet cable
LED Indicators: 1 x Power / Link Center Tip Polarity: Positive Input Current: 0.6 A Input Voltage: 100 - 240 AC Output Current: 2 A Output Voltage: 5 DC Plug Type: N Power Consumption (In Watts): 10 Power Source: AC Adapter Included Enclosure Type: Steel
Connectors
Connector A

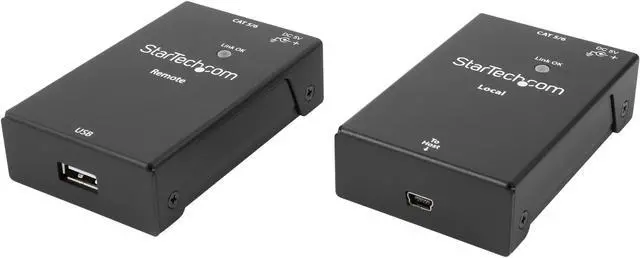

Local Unit Connectors: 1 x USB Mini-B (5 pin) Female 1 x RJ-45 Female
Connector B
Remote Unit Connectors: 1 x USB A (4 pin) Female 1 x RJ-45 Female
Features
Features
Place your USB device exactly where you need it (up to 50 m), with this cost-effective USB-to-Ethernet extender
Metal housing for rugged durability
OS independent for fast, hassle-free setup
Kit includes a local unit (transmitter) and a remote unit (receiver), as well as a universal power adapter (power adapter must be connected to the remote unit)
Supports transfer rates of up to 480Mbps
Plug-and-play and hot-swap compatible
Dimensions & Weight
Dimensions
0.90" x 2.00" x 3.10"
Weight
12.00 oz.

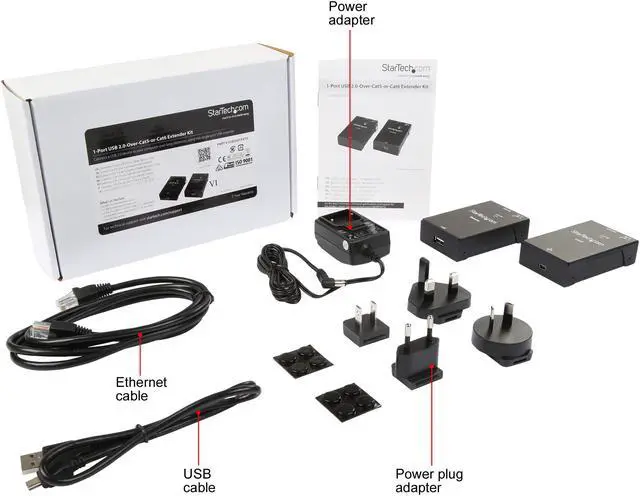

Package Contents
Package Contents
1 x USB 2.0 extender local unit 1 x USB 2.0 extender remote unit 1 x USB 2.0 cable 1 x RJ45 cable 8 x rubber feet 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x quick-start guide
