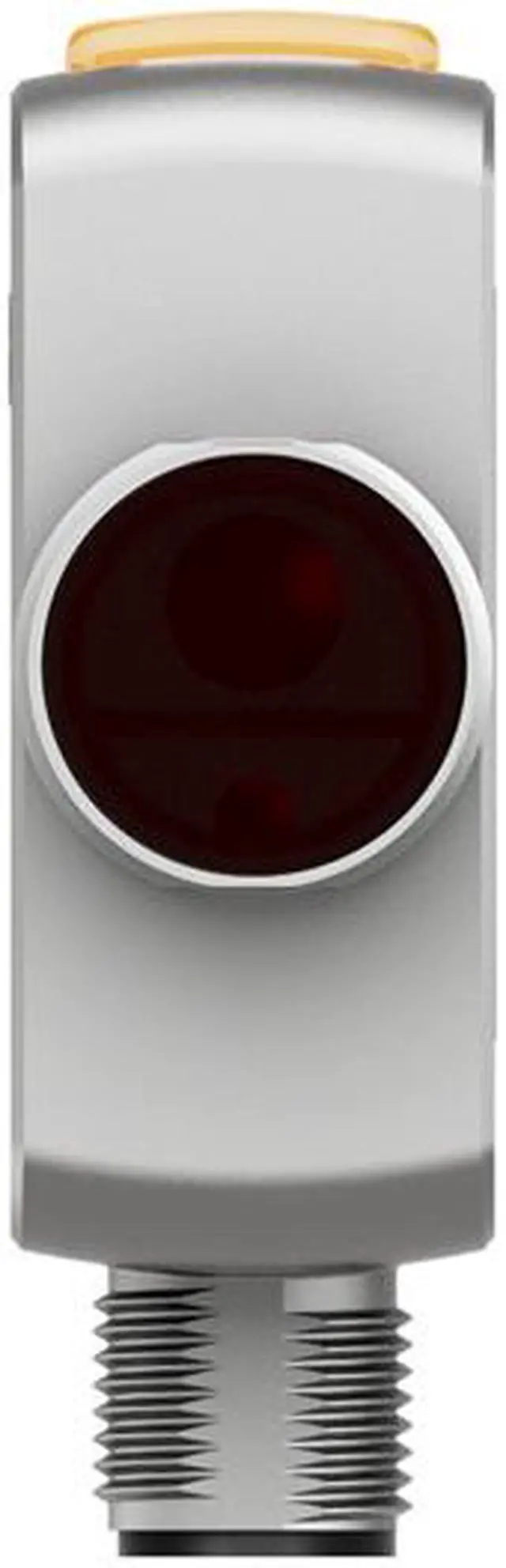

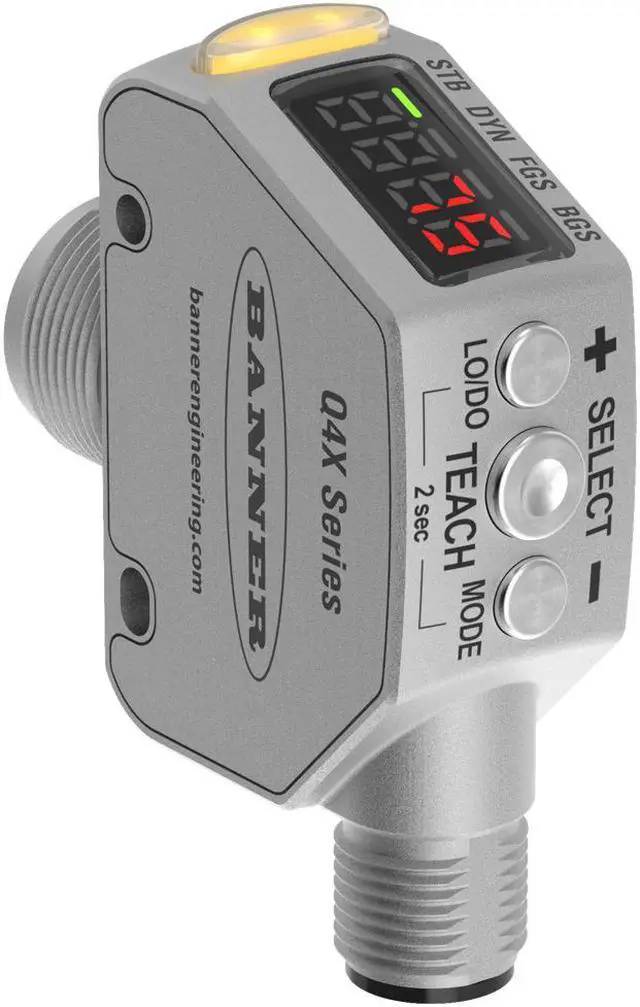

BANNER 4XTILAF300-Q8 Rugged Laser Distance Sensor New
- BANNER 4XTILAF300-Q8 Rugged Laser Distance Sensor New
+
+
Overview
Specs
Reviews
Q4X Series: Laser Adjustable Field
Range: 300 mm; Input 12-30 V dc
Output: Analog: 4-20 mA
Connection: Euro M12 5-Pin Integral Connector
Sensing Beam Visible Red Laser
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background/Foreground Suppression
Housing Style Rectangular w/M18 Mount
Device Type Sensor
Primary Housing Material Stainless Steel
Laser Classification Class 1
Input/Output Analog
Indicator Display; LED(s)
Connection Integral QD
Analog Output Configuration 4-20 mA
Analog Resolution/Discrete Repeatability 25 mm to 100 mm: < 0.3; 100 mm to 300 mm: < 1
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 300
Minimum Sensing Distance (mm) 25
Sensing Beam Visible Red Laser
Power Supply 12-30 V dc
Delay at Power-up (ms) 750
Sensing Beam Wavelength (nm) 655
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) +/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm
Number of Pins 5
Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Analog Current Output Rating 1 k? max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] ?
Output Protection Protected against continuous overload and short circuit
IP Rating IP67; IP68; IP69
Storage Temperature (°C) -25 to 75
Max Operating Temperature (°C) 50
Min Operating Temperature (°C) -10
Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
Window Material Acrylic
Warm-up Time (minutes) 10
Minimum Response Time (ms) 0.5
Spot Size (@ Reference Distance) 2.0 mm x 0.8 mm @ 300 mm
Analog Linearity (mm) +/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm
Barrel Diameter (mm) 18
Minimum Window Size (mm) 2
Laser Control Yes
Alarm Output (mA) 100
Max Ambient Light (Lux) 5000
Power/Current Consumption (exclusive of load) < 675 mW
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
Range: 300 mm; Input 12-30 V dc
Output: Analog: 4-20 mA
Connection: Euro M12 5-Pin Integral Connector
Sensing Beam Visible Red Laser
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background/Foreground Suppression
Housing Style Rectangular w/M18 Mount
Device Type Sensor
Primary Housing Material Stainless Steel
Laser Classification Class 1
Input/Output Analog
Indicator Display; LED(s)
Connection Integral QD
Analog Output Configuration 4-20 mA
Analog Resolution/Discrete Repeatability 25 mm to 100 mm: < 0.3; 100 mm to 300 mm: < 1
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 300
Minimum Sensing Distance (mm) 25
Sensing Beam Visible Red Laser
Power Supply 12-30 V dc
Delay at Power-up (ms) 750
Sensing Beam Wavelength (nm) 655
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) +/- 0.05 mm/°C from 25 to 125 mm, +/- 0.35 mm/°C at 300 mm
Number of Pins 5
Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Analog Current Output Rating 1 k? max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] ?
Output Protection Protected against continuous overload and short circuit
IP Rating IP67; IP68; IP69
Storage Temperature (°C) -25 to 75
Max Operating Temperature (°C) 50
Min Operating Temperature (°C) -10
Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
Window Material Acrylic
Warm-up Time (minutes) 10
Minimum Response Time (ms) 0.5
Spot Size (@ Reference Distance) 2.0 mm x 0.8 mm @ 300 mm
Analog Linearity (mm) +/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm
Barrel Diameter (mm) 18
Minimum Window Size (mm) 2
Laser Control Yes
Alarm Output (mA) 100
Max Ambient Light (Lux) 5000
Power/Current Consumption (exclusive of load) < 675 mW
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
