Tripp Lite PDU ATS/Monitored 120V 1.44kW 15A 8 5-15R Dual 5-15P 12ft Cords
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- Switches from primary to secondary power source in <7
- ms to maintain constant operation
- Digital ammeter for on-site realtime load monitoring helps prevent power overloads
- Dual 12 ft. cords with NEMA 5-15P inputs connect to separate
- power sources
- Compliant with the Federal Trade Agreements Act (TAA) for
- GSA Schedule purchases
+
+
Specs
Reviews
Learn more about the Tripp Lite PDUMNH15AT1
| Brand | Tripp Lite |
|---|---|
| Model | PDUMNH15AT1 |
| Type | Auto-Transfer Switch; Metered |
|---|---|
| Rack Size | 1U |
| Style | Horizontal |
| Certifications | Tested to UL62368-1:2014 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA compliant |
| ROHS | Yes |
| Input Voltage | 120V |
|---|---|
| Maximum Input Current | 15A |
| Cord Length | 12 ft |
| Output Voltage | 100; 120; 127 |
|---|---|
| Output Frequency | 50/60Hz |
| Output Watts (VA) | 1.52kW (127V), 1.44kW (120V), 1.2kW (100V) |
| Operating Elevation | 0 - 3000 m |
|---|---|
| Storage Temperature | -30°C to +50°C |
| Storage Relative Humidity | 5 - 95% |
| Features | Single-Phase 15A ATS PDU Distributes and Monitors Network-Grade Power in Real Time This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH15AT1 features eight NEMA 5-15R 120V outlets, which distribute AC power to rack equipment. Dual 12-foot (3.7-meter) power cords with NEMA 5-15P inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources. Switches from Primary to Secondary Power Source in Milliseconds Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source. Built-In LX Platform Network Management Card Allows Remote Access 24/7 The Java-free HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. |
|---|
| Dimensions | 1.75" x 17.50" x 14.50" |
|---|---|
| Weight | 11.00 lbs. |

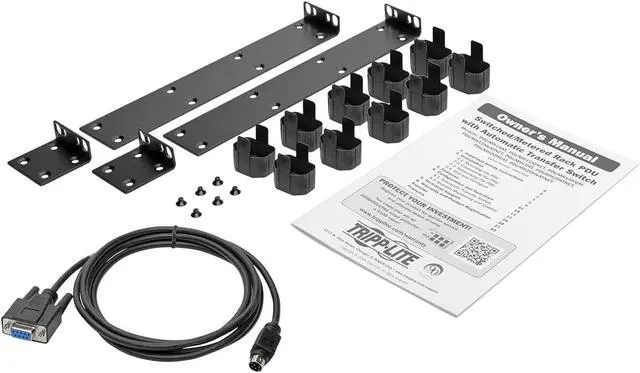

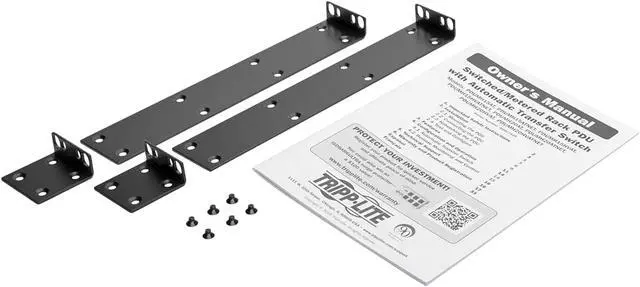

| Package Includes | PDUMNH15AT1 1.44kW SinglePhase ATS/Monitored PDU Detachable C13 to NEMA 5-15P secondary input cord, 12 ft. (3.7m) Configuration cable Rack-mounting hardware Cable Retention Kit Owner's manual |
|---|
| Date First Available | April 15, 2023 |
|---|
