Power Supply: Input: 100-240V, 50/60Hz, 1.5A
Output: 12.6V, 3A
Specification: Cable Type: VGA
Display Style: Splitter
Color: Black
Connector A: HD15 (FEMALE)
Connector B: RJ45 (FEMALE) x 4
Feature: Splits a single VGA signal into 5 (1 local, 4 remote)
Increase the number of displays to up to 25 (1 local, 24 remote) by daisychaining up to six B132-004-2 units together
A B132-100-1 or B132-100-WP-1 remote receiver unit is required for each connected monitor
Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
EDID copy feature ensures optimal display compatibility
The range and number of monitors can be further expanded by adding B132-110 repeater units
Connect up to 4 remote unit...

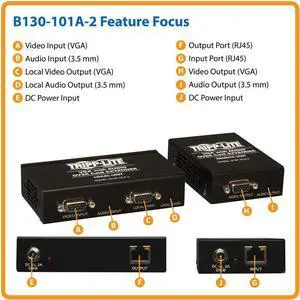

Network Interface: Side A: RJ45 (FEMALE)
Side B: RJ45 (FEMALE)
VGA: Side A: 2 x HD15 (FEMALE)
Side B: HD15 (FEMALE)
Analog Aduio: Side A: 2 x 3.5MM (FEMALE)
Side B: 3.5MM (FEMALE)
Specification: COMMUNICATIONS
Max 1024 x 768 Range (ft.): 1000
Max 480P Range (ft.): 1000
Max 1440 x 900 Range (ft.): 500
Max 1080i Range (ft.): 500
Max 1080P Range (ft.): 500
Max 1920 x 1440 Range (ft.): 500
Max 480i Range (ft.): 1000
Max 640 x 480 Range (ft.): 1000
Max 800 x 600 Range (ft.): 1000
Max 1600 x 1200 Range (ft.): 500
Max 1920 x 1200 Range (ft.): 500
Max 720P Range (ft.): 500
Distance: up to 200 ft. at 1024 x 768 (60Hz)
up to 150 ft. at 1920 x 1080 (60Hz)
Color: Black
LED Indicator: The Green RJ45 LED on the local unit illuminates to indicate it is connected to and receiving power from the source. The Orange RJ45 LED on the local unit does not illuminate. The Green RJ45 LED on the remote unit illuminates to indicate it is receiving power from the external power supply. The Orange RJ45 LED on the remote unit illuminates to indicate it is connected to the local unit and receiving a signal from the source.

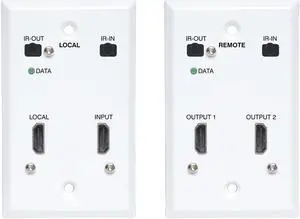

Feature: Cleans up Home Theater installations by hiding HDMI Cables
Simple Feed-Through design
Standard electrical outlet size
HDCP Compliant
Use with wall-mount Flat Panel Displays where cables need to be hidden
