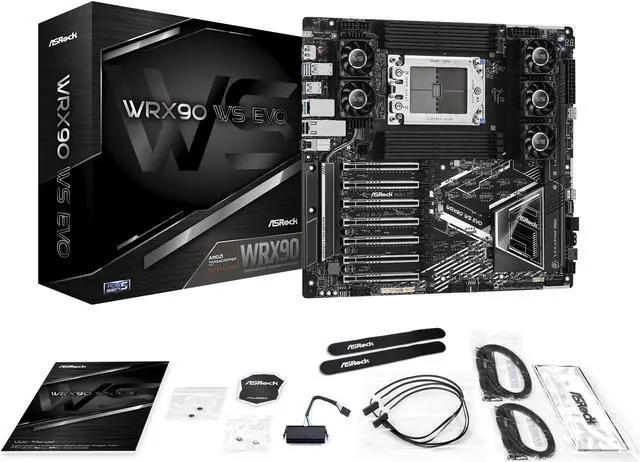

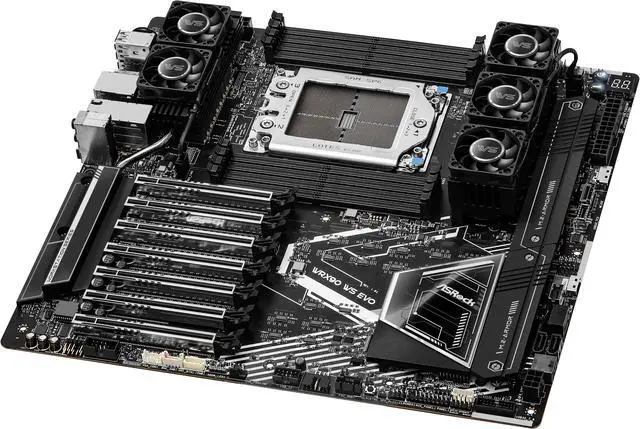

ASRock WRX90 WS EVO SATA 6Gb/s DDR5 AMD Ryzen Threadripper PRO 7 x PCIe 5.0 x16 Slots 2 x 10 Gigabit LAN Motherboards - AMD
- Supports 7 PCIe 5.0 x16 slots, deliver all the performance of PCIe 5.0 to your
- GPU and add-on cards.
- WITH STEEL SLOTS
- 7 X PCIE GEN5 X16
- PRODUCT BRIEF :
- ?Supports AMD Ryzen™ Threadripper™ PRO Processors
- ?18+3+3 Power Phase Design, 110A SPS for VCore
- ?Supports 8 DIMMs DDR5 ECC Registered memory
- ?7 PCIe 5.0 x16
- ?Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
- ?4 SATA3,
- 1 Blazing M.2 (PCIe Gen5 x4),
- 1 Hyper M.2 (PCIe Gen4 x4),
- 2 MCIO Connector (PCIe Gen5 x4/ 4 SATA3),
- 1 SlimSAS SFF-8654 Connector (PCIe Gen4 x4)
- 1 SlimSAS SFF-8654 Connector (PCIe Gen4 x4/ 4 SATA3)
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 4 USB 3.2 Gen2 Type-A(Rear)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 4 USB 2.0 (4 Front)
- ?Dual Intel X710 10G LAN,
- 1 Dedicated IPMI LAN
+
+
Specs
Reviews (1)
Learn more about the ASRock WRX90 WS EVO
| Brand | ASRock |
|---|---|
| Model | WRX90 WS EVO |
| Part Number | WRX90 WS EVO |
| CPU Socket Type | sTRX5 |
|---|---|
| CPU Type | Supports AMD Ryzen™ Threadripper™ PRO Processors - Supports AMD Socket sTR5 - Supports ASRock Hyper BCLK Engine |
| Chipset | AMD WRX90 |
|---|
| Number of Memory Slots | Eight Channel DDR5 Memory Technology - 8 x DDR5 DIMM Slots - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)* - Max. capacity of system memory: 2TB * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com |
|---|---|
| Memory Standard | up to 7600+(OC)* |
| Maximum Memory Supported | 2TB |
| PCI Express 5.0 x16 | - 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)* * Supports NVMe SSD as boot disks - 15µ Gold Contact in VGA PCIe Slots |
|---|
| Serial ATA (SATA) | 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks |
|---|---|
| M.2 | 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode* - 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s) - 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4) |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 |
| Audio Channels | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
|---|
| Max LAN Speed | 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2) - Support PXE 1 x Dedicated IPMI (Realtek RTL8211F |
|---|
| Back I/O Ports | - 1 x DisplayPort 1.1a - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 2 x RJ-45 LAN Ports - 1 x RJ45 Dedicated IPMI LAN Port - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) * USB_TC1 supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging; USB_TC2 supports USB PD 3.0 up to 5V@3A (15W) charging. |
|---|
| Other Connectors | - 2 x Thermistor Cable Headers - 1 x Front VGA Header - 1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x Intelligent Platform Management Bus Header - 1 x PSU SMBus Header - 1 x BMC SMBus Header - 1 x Auxiliary Panel Header - 2 x Addressable LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 3 pin ATX Power Connector***** - 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** - 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** - 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)******* - 1 x Right Angle Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) - 2 x SGPIO Headers - 1 x CPU HP-SMBus Connector - 1 x Non Maskable Interrupt Button Header - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Clear CMOS Button * Support in total up to 5V/3A, 15W LED Strip |
|---|
| Form Factor | EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm - 14 Layer PCB - 2oz Copper PCB |
|---|---|
| Dimensions (W x L) | 12.0-in x 13.0-in, 30.5 cm x 33.0cm |
| Windows 11 | Microsoft® Windows® 11 64-bit |
|---|
| Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Eight Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - Ultra Low-Loss PCB - 18+3+3 Power Phase, 110A SPS Design - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - Dual Intel® 10G LAN EZ Update - ASRock Auto Driver Installer |
|---|
| First Listed on Newegg | February 22, 2024 |
|---|
