ASRock X670E PG Lightning AM5 ATX Mainboard. 4xDDR5 slots, PCIE 5.0X16, AMD Cross Fire, Quad M.2 slots, 2.5GB LAN, 7.1 HD audio, HDMI, DP 1.4 ports, USB3.2 Gen2x2 Type-C, 8 Layber PCB.

OUT OF STOCK.
  • X670E PG Lightning
  • X670E PRO RS
  • X670E Steel Legend
  • X670E Taichi Carrara
  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors.
  • DDR5 DIMMs, supports up to 6600+(OC).
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio.
  • 2.5Gbps LAN Enjoy the faster connectivity experience for gaming, file transfers and backups.
  • PCIe Gen5 Technology PCIe x16 slot & M.2 Sockets.
Specs
Reviews

Learn more about the ASRock X670E PG Lightning

Model
Brand ASRock
Model X670E PG Lightning
Supported CPU
CPU Socket Type AM5
CPU Type Supports AMD Ryzen 7000 Series Processors
Chipsets
Chipset AMD X670E
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 6600+ (OC)*

* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16*

* Supports NVMe SSD as boot disks.
* Actual support may vary by CPU.
PCI Express 4.0 x16 2 x PCI Express 4.0 x16*

* PCIE3 supports x4 mode, Actual support may vary by CPU.
* PCIE4 supports x1 mode.
* Supports NVMe SSD as boot disks.
PCI Express x1 1 x PCI Express 4.0 x1

* Supports NVMe SSD as boot disks.
Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Dragon RTL8125BG
Max LAN Speed 2.5Gbps
Rear Panel Ports
Back I/O Ports 2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
Other Connectors 1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

* Supports in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
Windows 11 Compatibility
Windows 11 Supported
Features
Features Unique Feature:
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 14+2+1 Power Phase, 70A SPS
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer

BIOS Feature:
- 256Mb AMI UEFI Legal BIOS with GUI support

Software and UEFI:
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

OS:
- Microsoft Windows 11 64-bit

Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging

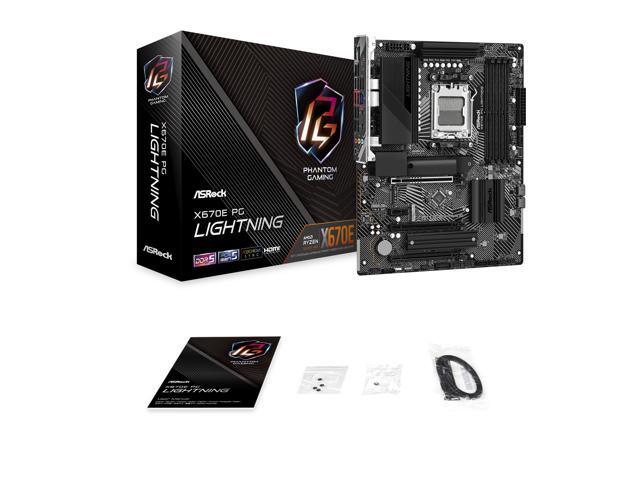

Package Contents Accessories:
- 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Additional Information
Date First Available September 27, 2022
