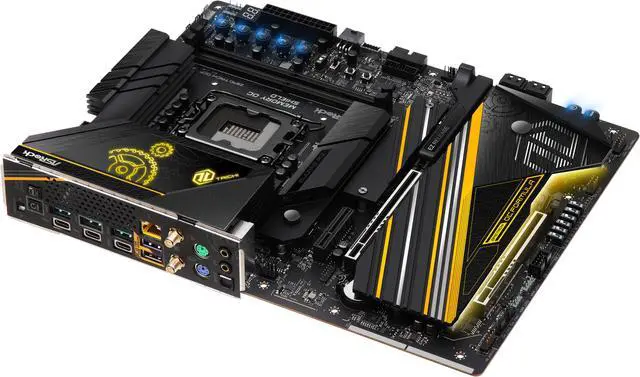

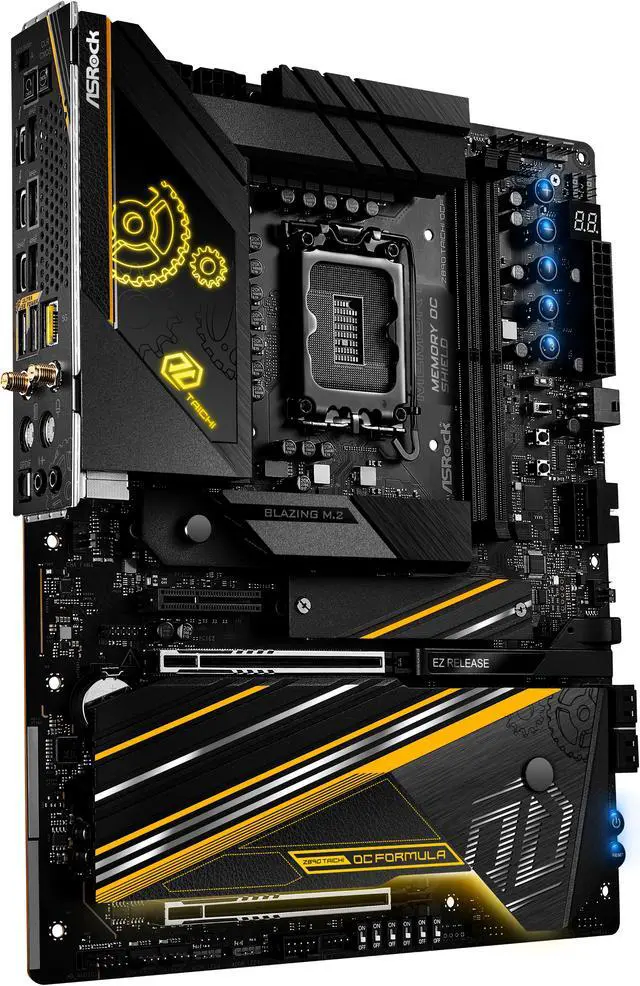

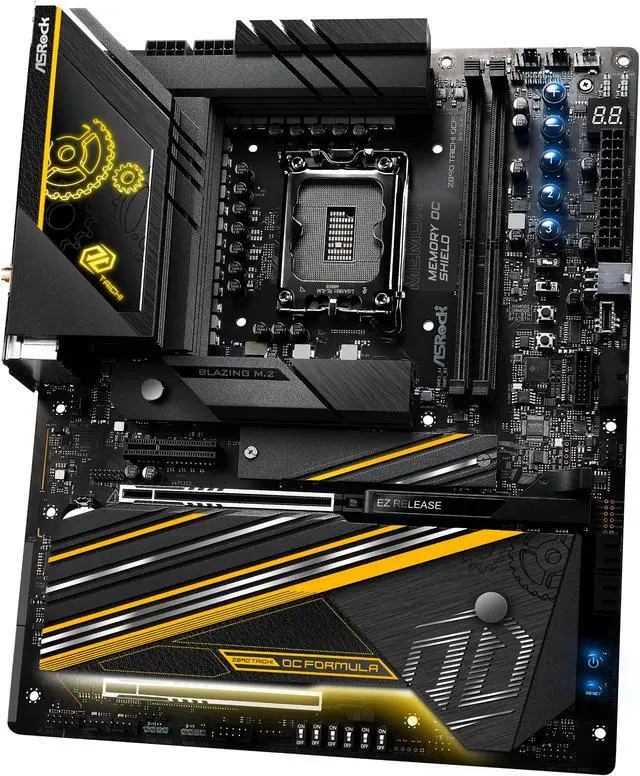

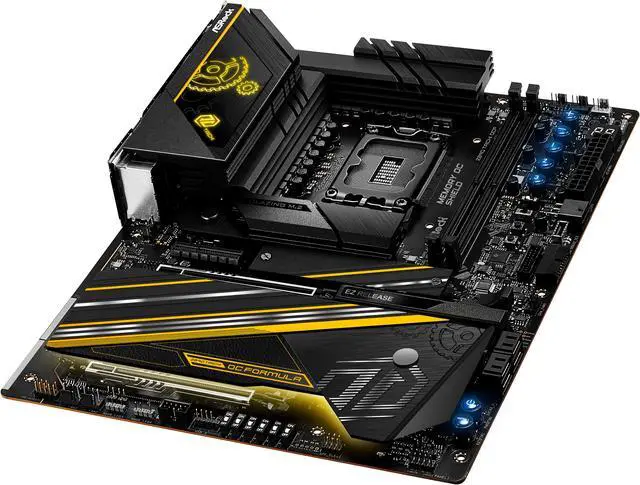

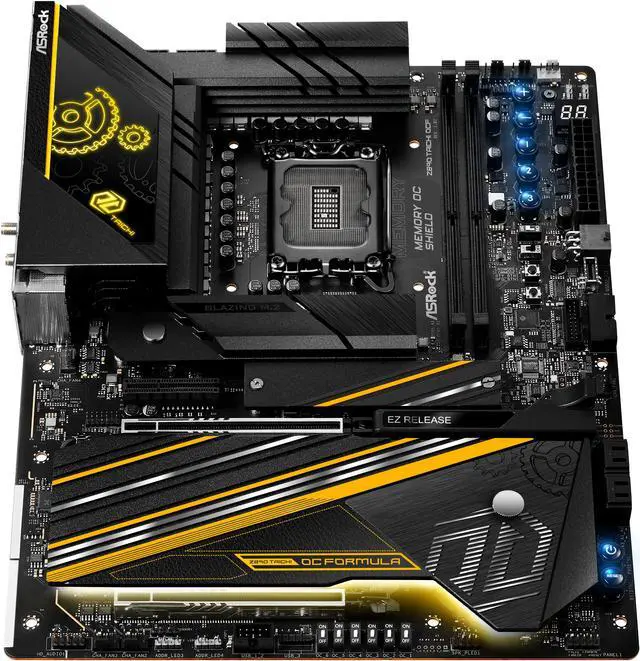

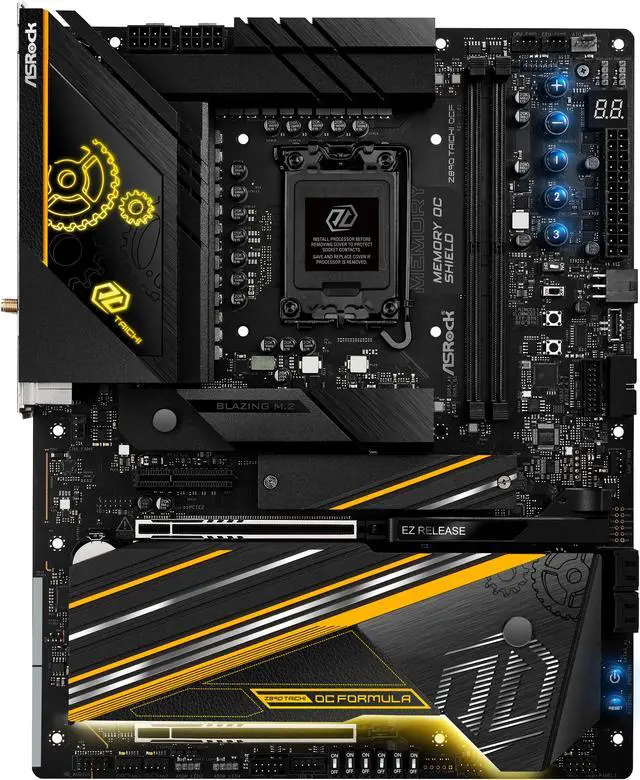

Z890 Taichi OCF
Built for Extreme Overclocking
Z890 Taichi OCF is the pinnacle of ASRock’s commitment to extreme overclocking. Engineered to meet the demands of professional overclockers, this motherboard delivers unparalleled precision, overclocking capability, and performance. As part of the Taichi family, it sets a new standard for those who push their systems to the limit.
A New Era of Taichi
ASRock's flagship motherboard lineup is undergoing a major overhaul, unifying water cooling, extreme overclocking, and all-around flagship models into a powerful Taichi family.
This expansion incorporates the highly acclaimed OCF series water-cooling motherboards and OC Formula series overclocking motherboards, resulting in the Taichi OCF for custom water cooling, Taichi OCF for extreme overclocking, and the all-around flagship Taichi/Taichi Lite.
This transformation refines product positioning, centralizing ASRock's flagship offerings under the Taichi brand to meet the diverse needs of high-end PC enthusiasts. This strategic combination enhances the brand's impact, delivering exponential synergy and reinforcing its status as a premier flagship motherboard brand.
Unleashing Extreme Performance
Designed for hardcore overclockers, this motherboard is engineered to push your system beyond its limits with LN2 cooling. Experience unprecedented performance and stability under extreme conditions, giving you the ultimate edge in breaking records and maximizing hardware potential.
OVERVIEW
22+1+2 Phase SPS Power Design
Extreme Memory Overclocking
Memory OC Shield
Overclocking Toolkit
Dual Thunderbolt™ 4 Type-C
Optimized 5 Gb/s Ethernet LAN
22+1+2+1+1 Power Phase, 110A SPS
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Extreme Memory Overclocking
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
Memory OC Shield

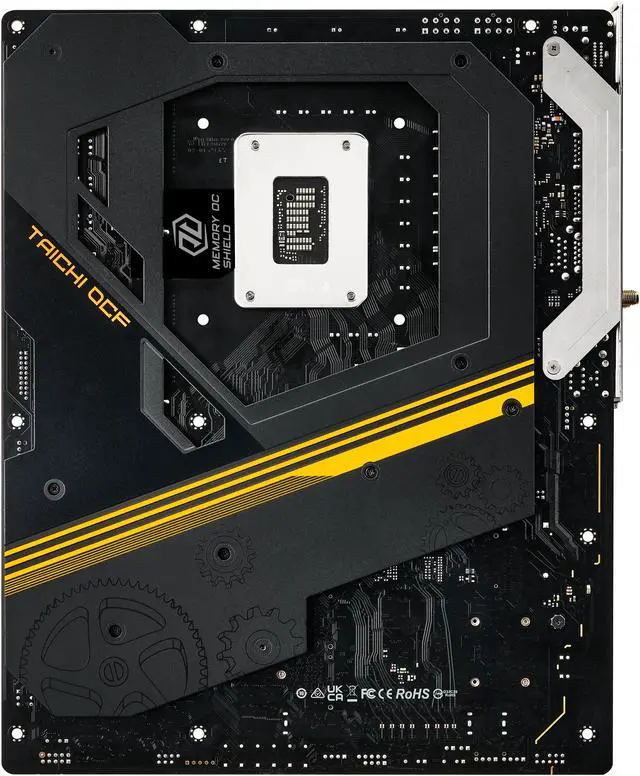

ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.
Overclocking Toolkit
- OC Buttons: Taichi OCF's OC Buttons, including +/- Rapid OC Buttons, OC Profile 1, 2, 3 Buttons, LN2 Mode Switch, Slow Mode Switch, Retry Button, and Safe Boot Button, offer hardware-level controls to enhance your overclocking experience and assist with extreme overclocking.
- V-Probe™: Allow users to detect the current voltage and OC settings via V-Probe™ onboard voltage measurement points.
- 6 x OC Profiles: You can customize six OC Switch functions via the BIOS. Users can control BIOS overclocking settings with physical buttons, making overclocking faster and more intuitive, greatly enhancing personalization.
Professional Overclocking
- CPU Heater Header: Equipped with a heater header for easy connection of ceramic heating pads within the CPU socket, it prevents CPU SoC Tile from freezing during LN2 extreme overclocking with up to 42W of heating power by duty, aiming to enhance overclocking results.(Accessory is not included.)
- ElmorLabs OC Panel Header: It supports the ElmorLabs OC Panel to enable precise temperature monitoring, voltage adjustments, and enhanced system control. (Accessory is not included.)
Dual Thunderbolt™ 4 Type-C
It enables lightning-fast data transfer up to 40Gbps and connects versatile devices with a single Thunderbolt™ 4 cable.
Premium PCB Solution
- Server-Grade Ultra Low-Loss PCB: The server grade ultra low-loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
- 10 Layer 2oz PCB: The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
Deluxe 6xM.2 Sockets
Supports up to 6xNVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard.
DIY Friendly Design
- Graphics Card EZ Release: ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly.
- M.2 Toolless (SSD & Heatsink): Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
- M.2 Bottom Heatsink: The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.
Ultra-Fast Networking
802.11be Wi-Fi 7: Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Optimized 5 Gb/s Ethernet LAN: ASRock's 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.
Dual USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Z890 Taichi OCF
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 22+1+2+1+1 Power Phase, 110A SPS for VCore
-
2 x DDR5 DIMMs
Supports Dual Channel, up to 12735+ (OC) - 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: 2 Thunderbolt™ 4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
-
4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
3 Hyper M.2 (PCIe Gen4 x4)
2 Hyper M.2 (PCIe Gen4 x4 & SATA3) -

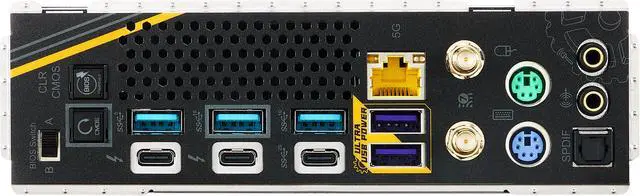

2 Thunderbolt™ 4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
4 USB 3.2 Gen2 Type-A (Rear)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
3 USB 2.0 (Front) - 5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
- Professional Overclocking Toolkit
