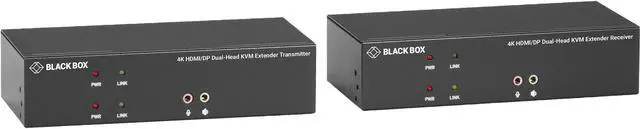

Black Box KVX Series KVXLCHDPF-200 KVM Extender over Fiber - 4K, Dual-Head, HDMI/DisplayPort, USB 2.0, Serial, Audio, Local Video
- DisplayPort or HDMI dual-head 4K transmission up to 30 km over singlemode cable
- Supports DisplayPort and HDMI video up to 3840 x 2160 at 30 Hz
- Transparent USB 2.0 extension supports HID devices, mass storage devices.
- Bidirectional audio via speaker/mic connection
- Supports RS-232 peripheral (serial) devices such as scanners or terminals.
- Local and remote units connect at distances of up to 10 km using SFP <1250 Mbps
- Supports dual 4K view video source transmission (one PC with two video output ports)
- Local video port loopback for monitoring on transmitter (TX) unit
+
+
Specs
Reviews
Learn more about the Black Box Corporation KVXLCHDPF-200
| Brand | Black Box |
|---|---|
| Series | KVX Series |
| Model | KVXLCHDPF-200 |
| Type | KVM Extender over Fiber |
|---|---|
| PC Connectors | Video Input: (1) HDMI female, (1) DisplayPort female Serial Control Port: (1) DB9 female Link Port: (1) SFP cage USB: (1) USB Type B female Audio: (1) Line in, (1) Line out; Local Video Output: (1) HDMI female, (1) DisplayPort female |
| Console Connectors | Video Output: (2) HDMI female Serial Control Port: (1) DB9 male Link Port: (1) SFP cage USB 2.0: (4) USB Type A female Audio: (1) Mic In, (1) Speaker Out |
| Video Resolution | 4K @ 30 Hz, 3840 x 2160 @ 30 Hz |
| LED Indicators | Power: Red Link: Green |
| Audio Features | 2-Way Analog Audio |
|---|---|
| Power Features | External DC 5V / 2A Power Supply |
| Features | DisplayPort or HDMI dual-head 4K transmission up to 30 km over singlemode cable Supports DisplayPort and HDMI video up to 3840 x 2160 at 30 Hz Transparent USB 2.0 extension supports HID devices, mass storage devices. Bidirectional audio via speaker/mic connection Supports RS-232 peripheral (serial) devices such as scanners or terminals. Local and remote units connect at distances of up to 10 km using SFP <1250 Mbps Supports dual 4K view video source transmission (one PC with two video output ports) Local video port loopback for monitoring on transmitter (TX) unit |
| Dimensions | 1.71" H x 7.09" W x 3.27" D (4.4 x 18 x 8.3 cm) |
|---|---|
| Weight | 0.85 lb. (0.386 kg) (no SFP) |
| Package Contents | (1) HDMI/DP Dual-Head KVM Fiber Extender Transmitter (1) HDMI/DP Dual-Head KVM Fiber Extender Receiver (2) Power Supplies (includes US, EU, UK, AU plug types) (1) HDMI cable (6-ft./1.8-m) (1) DisplayPort cable (6-ft./1.8-m) (1) 3.5mm audio cable (6-ft./1.8-m) (1) USB-B to USB-A cable (6-ft./1.8-m) |
|---|
| Date First Available | January 10, 2024 |
|---|
