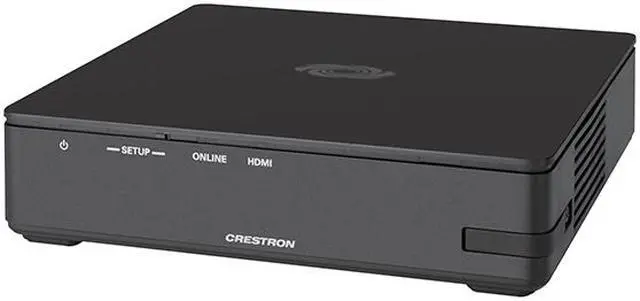

Crestron AM-3100-WF AirMedia Series 3 Receiver 100 with Wi-Fi Network Connectivity
+
+
Specs
Reviews
Learn more about the Crestron Electronics, Inc AM-3100-WF
| Brand | Crestron |
|---|---|
| Model | AM-3100-WF |
| Type | AirMedia Series 3 Receiver 100 with Wi-Fi Network Connectivity |
| Additional Features | Complete room solution enables secure wireless AirMedia presentation from laptops, smartphones, tablet devices, and AirMedia Connect Adapters Enables smart automation via intelligent display control, personal device control, occupancy detection, and integration into a broader connected ecosystem Enterprise-grade security and content encryption protects privacy and ensures compliance with IT policies XiO Cloud® service support for remote provisioning and management Integrates with Appspace® digital signage software platform for content display Supports content sharing of four simultaneous sources for multi-user collaboration with AirMedia Canvas. Wireless conferencing and presentation allows for collaboration with in-room and remote participants (feature enablement required, coming soon) Integrates with optional Kaptivo Whiteboard Device to display and share whiteboard content (coming soon) |
|---|---|
| Specification | Communications: Ethernet: 100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS5, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3af compliant Wi-Fi: Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5 GHz); Up to 100 ft (30 m) range at 80 Mbps, subject to site-specific conditions AirMedia: Via Ethernet: IPv4, mDNS, TLS, AES; Via wireless access point: IEEE 802.11/b/g/n/ac/ax, 2.4 GHz or 5 GHz USB Host: USB 2.0 for connecting a USB conferencing peripheral; USB 3.0 for connecting a USB conferencing peripheral USB Device: USB 3.0 for computer console (installer setup and firmware update) or conference system HDMI Output HDCP 2.2, EDID, CEC; Supports management of HDCP and EDID AirMedia: OS Support: Apple iOS, Android, Windows 8, Windows 10, macOS, Chrome OS Video Frame Rate: Up to 30 fps, audio supported NOTE: Audio is not supported on Android devices. Output Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60) NOTE: All video inputs will be scaled to the selected HDMI output resolution. Bitrate Peak: 0.25 to 8.5 Mbps, variable depending on content complexity Bitrate Average: 1.4 Mbps typical NOTES: The bitrate for Apple native mirroring may deviate from above depending on the OS version and content. The AirMedia Extension for the Google Chrome browser relies on web technologies for screen sharing that are built-in to the web browser. Performance variations with motion video (quality and frame rate) may occur based upon the encoding capabilities of the Chrome OS device and the nature of the content being displayed (i.e., high-motion video). Audio Format: Stereo |
| Power | Power over Ethernet: IEEE 802.3af Class 4 Powered Device Power Pack (sold separately): Input: 100-240VAC, 50/60 Hz; Output: 1.25A @ 24VDC; Model: PW-2412WU Power Consumption: 13.5 W (typical) |
|---|

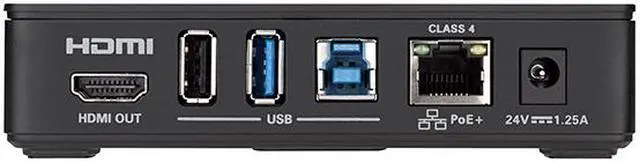

| Connections | Connectors: microSD: For future use HDMI OUTPUT: (1) HDMI Type A connector; HDMI digital video/audio output (DVI compatible6) USB: (2) USB Type A connectors; For future use (1) USB Type B connector; USB 3.0 device port for computer console LAN PoE+: (1) 8-pin RJ-45 connector; 100Base-TX/1000Base-T Ethernet port and PoE+ Class 4 24VDC 1.25A: (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2412WU power pack sold separately |
|---|---|
| Dimensions | 1.21" x 5.00" x 5.00" |
| Weight | 11.64 oz. |
| First Listed on Newegg | May 27, 2022 |
|---|
