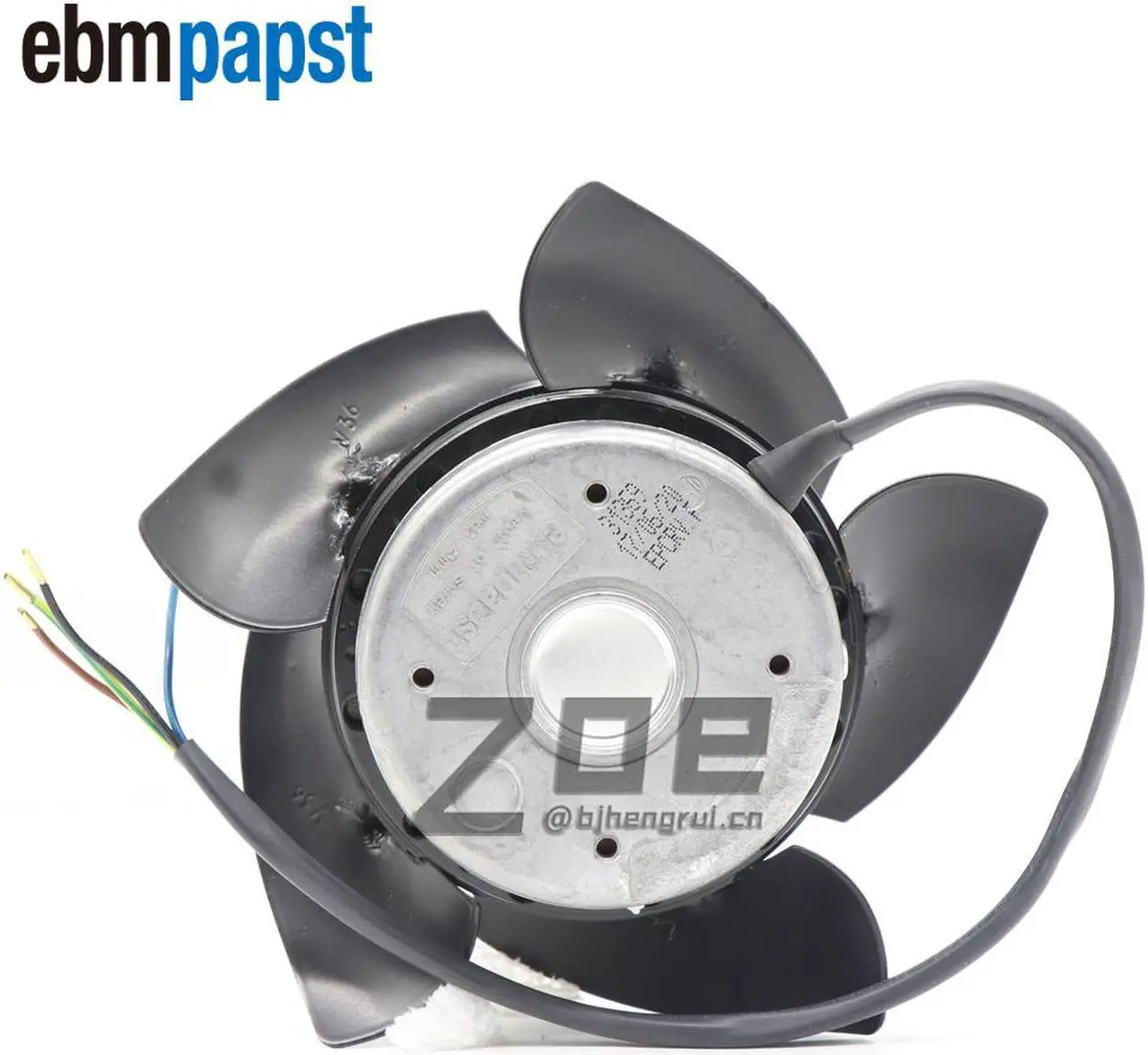

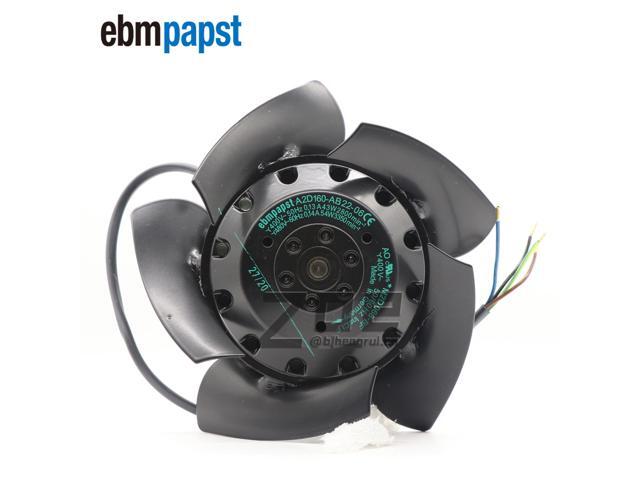

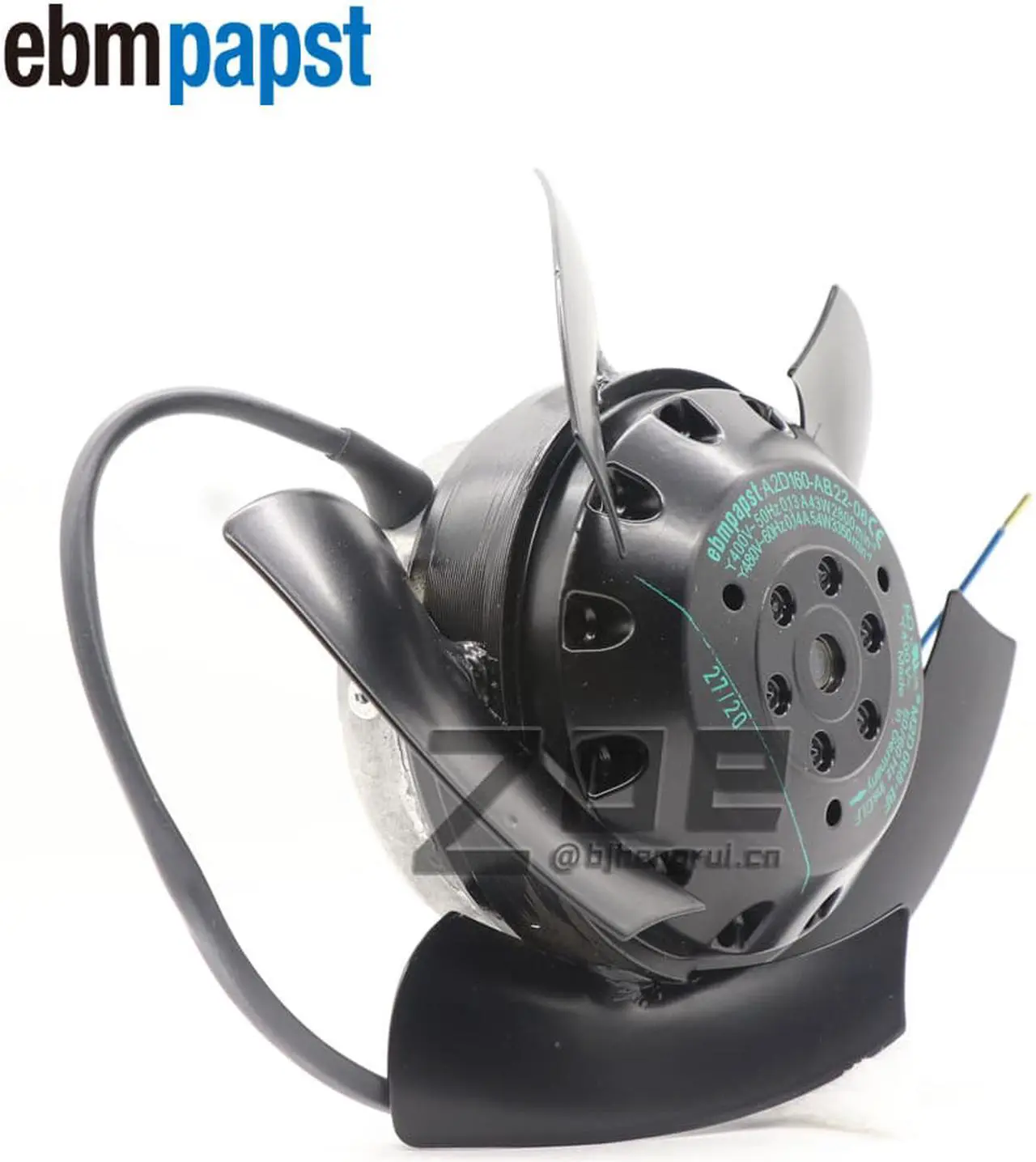

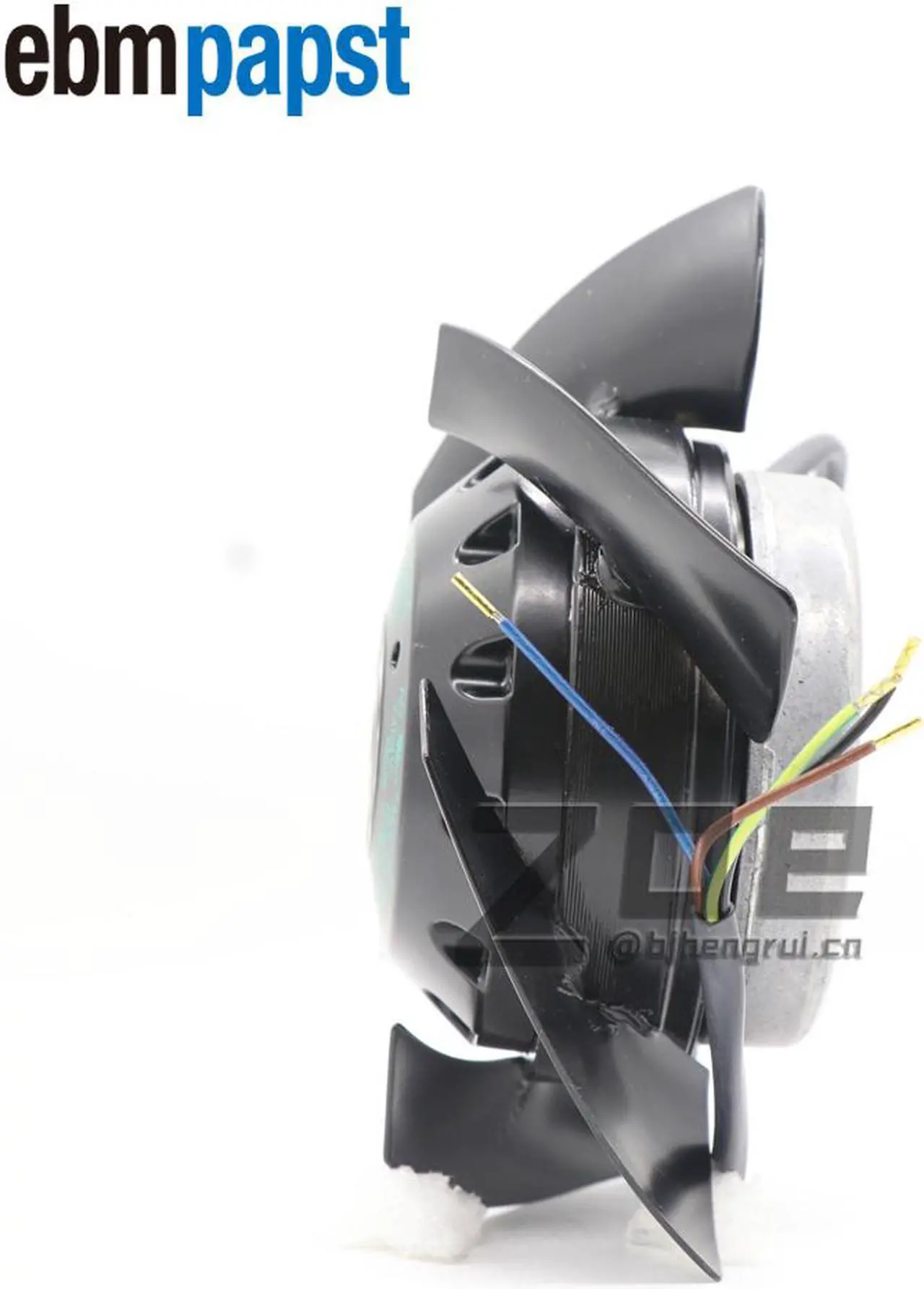

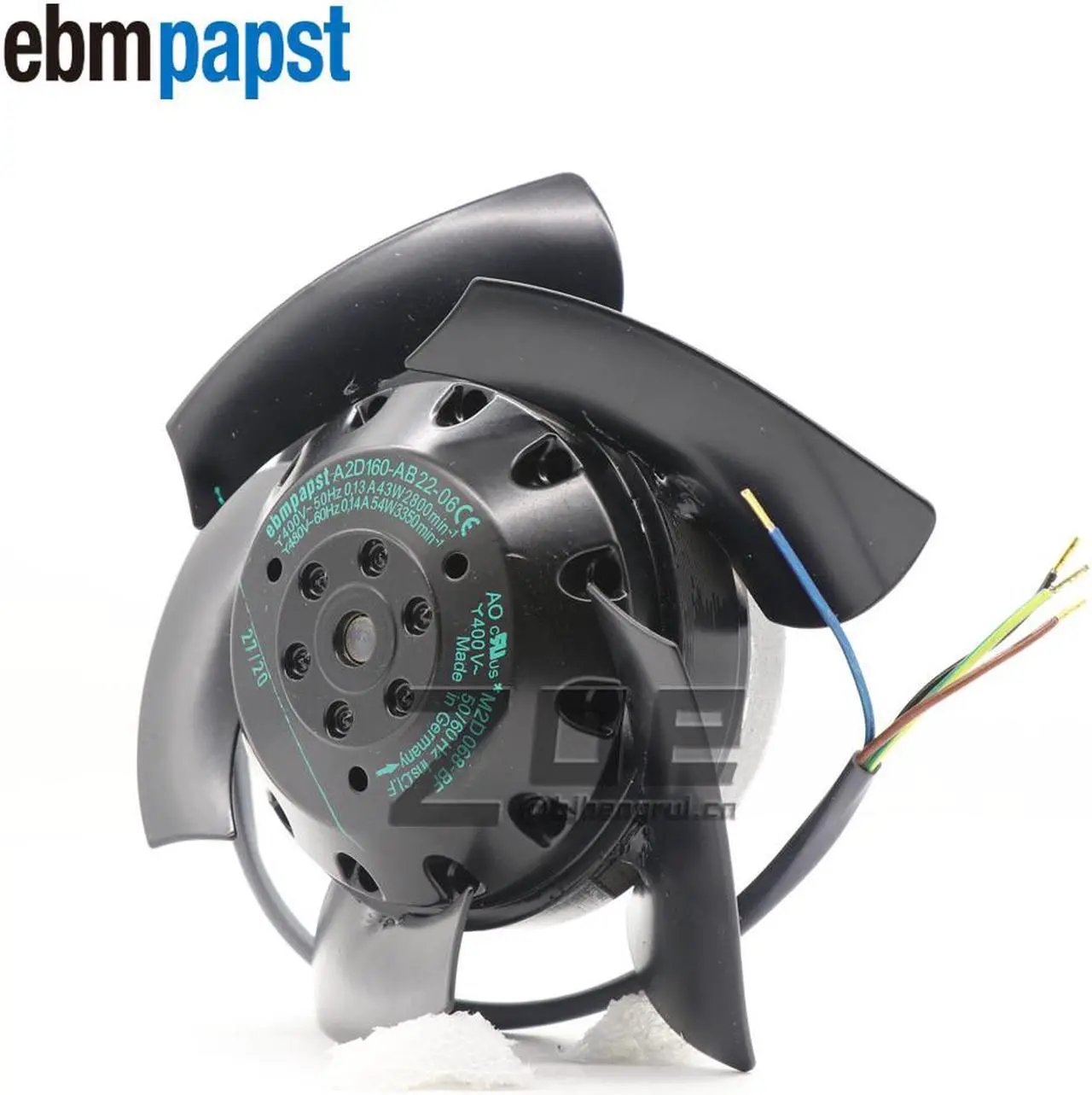

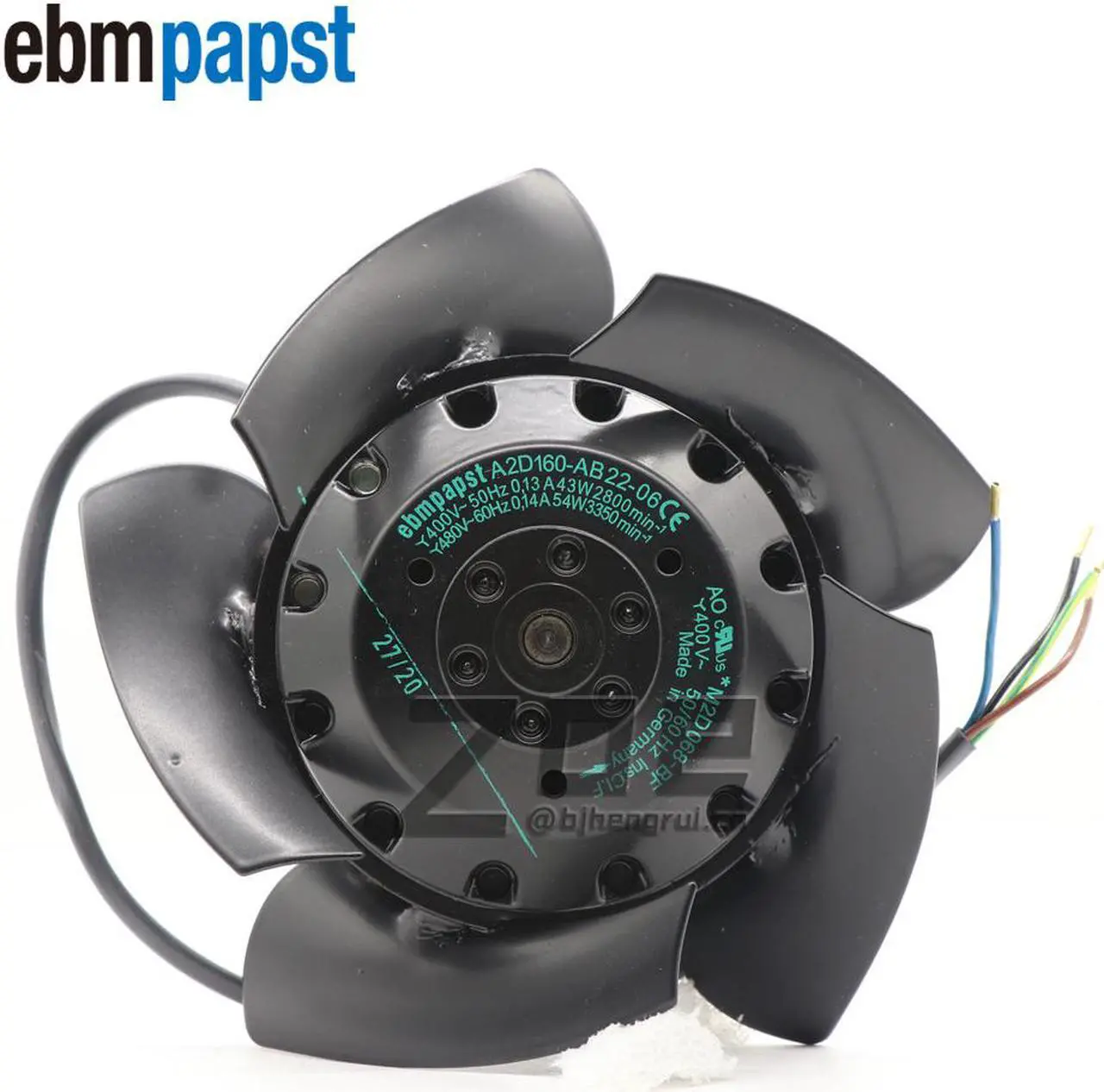

Ebmpapst A2D160-AB22-06 400V/480V 2800/3350min-1 43/54W Straight Blades Single-intake AC Axial Imppler Industrial Cooling Fans
- Condition: 100% new and good quality;
- Brand:ebmpapst ;Model: A2D160-AB22-06;
- 400VAC/480VAC; 50HZ/60HZ; 2800min-1/3350min-1;0.13/0.14A; 43/54W
- We are professional Fan supplier,All products are New original genuine. Please rest assured to purchase, About the product parameters , please check and understand them carefully ,if not please feel free to contact us, we are pleased with serve for you.
+
+
Overview
Specs
Reviews
Nominal data
Type A2D160-AB22-06
Motor M2D068-BF
Phase 3~ 3~
Nominal voltage VAC 400 480
Wiring Y Y
Frequency Hz 50 60
Method of obtaining data cs cs
Valid for approval/standard CE UL
Speed (rpm) min-1 2800 3350
Power consumption W 43 54
Current draw A 0.13 0.14
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 90 90
Technical description
Weight 1.1 kg
Size 160 mm
Motor size 68
Rotor surface: Painted black
Blade material: Sheet steel, painted black
Number of blades: 5
Airflow direction: V
Direction of rotation: Counterclockwise, viewed toward rotor
Degree of protection: IP44; installation- and position-dependent as per EN 60034-5
Insulation class "F"
Installation position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes: On rotor side
Motor bearing: Ball bearing
With cable: Lateral
Protection class: I (with customer connection of protective earth)
Conformity with standards: EN 60335-1, motor does not have factory-installed overheating protection; CE
Approval: UL 1004-1; CSA C 22.2 No. 100
PACKAGE: fan * 1 pcs
Type A2D160-AB22-06
Motor M2D068-BF
Phase 3~ 3~
Nominal voltage VAC 400 480
Wiring Y Y
Frequency Hz 50 60
Method of obtaining data cs cs
Valid for approval/standard CE UL
Speed (rpm) min-1 2800 3350
Power consumption W 43 54
Current draw A 0.13 0.14
Min. ambient temperature °C -25 -25
Max. ambient temperature °C 90 90
Technical description
Weight 1.1 kg
Size 160 mm
Motor size 68
Rotor surface: Painted black
Blade material: Sheet steel, painted black
Number of blades: 5
Airflow direction: V
Direction of rotation: Counterclockwise, viewed toward rotor
Degree of protection: IP44; installation- and position-dependent as per EN 60034-5
Insulation class "F"
Installation position: Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes: On rotor side
Motor bearing: Ball bearing
With cable: Lateral
Protection class: I (with customer connection of protective earth)
Conformity with standards: EN 60335-1, motor does not have factory-installed overheating protection; CE
Approval: UL 1004-1; CSA C 22.2 No. 100
PACKAGE: fan * 1 pcs
