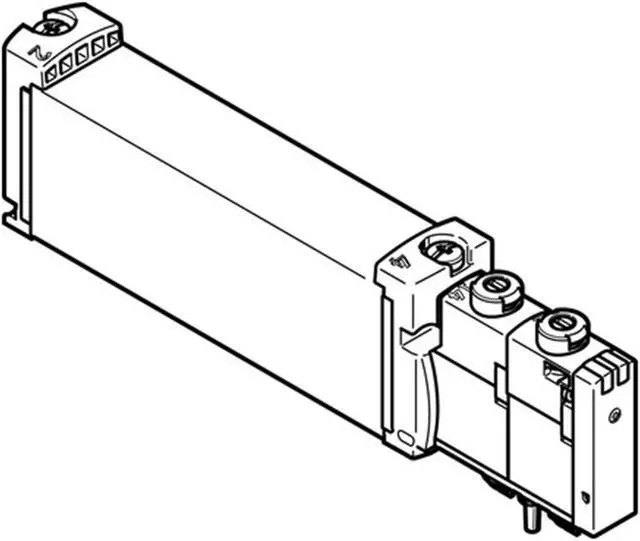

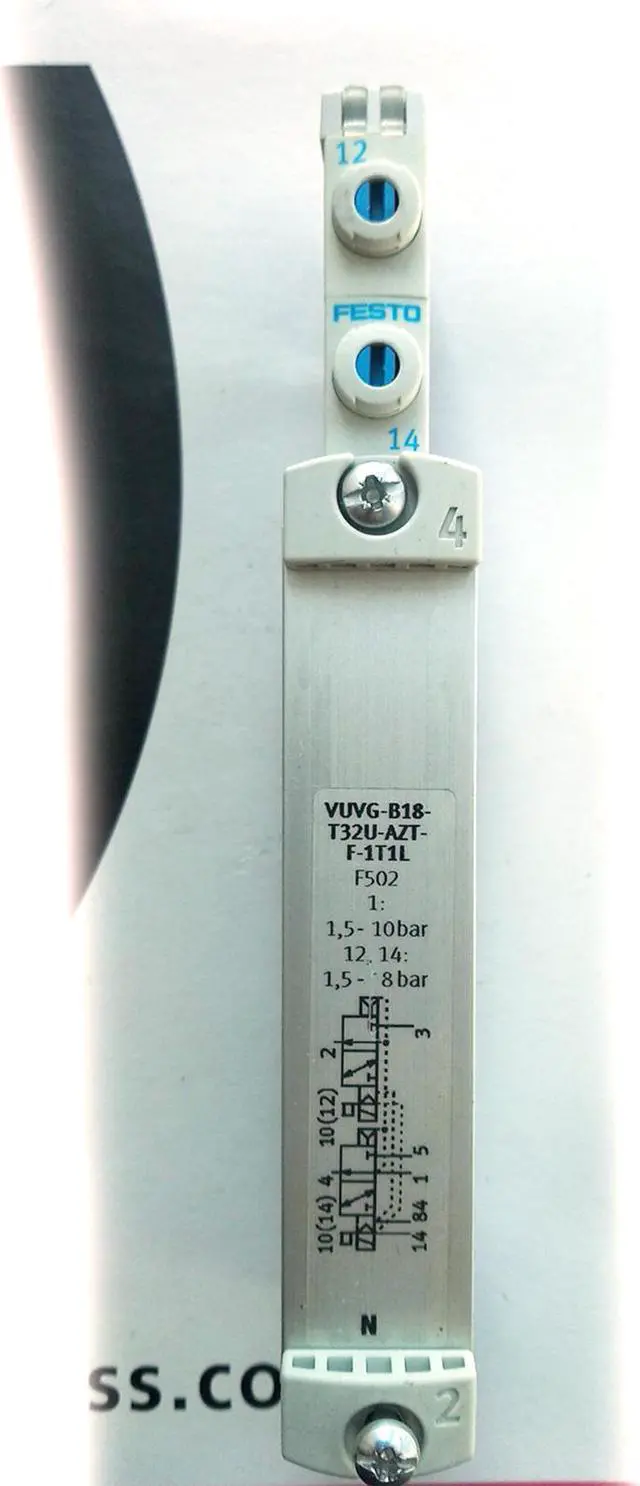

FESTO VUVG-B18-T32U-AZT-F-1T1L 8004886 Air Solenoid Valve New

Valve function
2x3/2, open, monostable
Lap
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
800 l/min
Pneumatic working port
Flange
Operating voltage
24V DC
Operating pressure
1.5 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
IP65 IP67
Signal status display
LED
Pilot pressure
1.5 bar ... 8 bar
Max. switching frequency
3 Hz
Switching time off
34 ms
On switching time
15 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
1600 µs
Max. negative test pulse on 1 signal
3000 µs
Coil characteristics
22 V DC: 1.0 W
Permissible voltage fluctuations
+/- 10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 60 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 60 °C
Product weight
145 g
