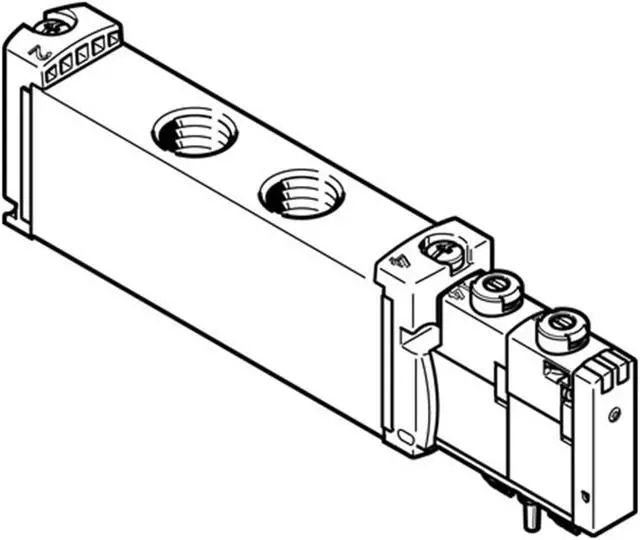

FESTO VUVG-S18-T32C-AZT-G14-1T1L 8004873 Air Solenoid Valve New

Valve function
2x3/2, closed, monostable
Lap
Overlap
Actuation type
Electrical
Valve size
18 mm
Standard nominal flow rate
900 l/min
Pneumatic working port
G1/4
Operating voltage
24V DC
Operating pressure
1.5 bar ... 10 bar
Design
Piston gate valve
Reset method
Pneumatic spring
Degree of protection
IP65 IP67
Type code
VUVG
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Type of control
Pilot-controlled
Pilot air supply port
External
Symbol
00992905
Signal status display
LED
Pilot pressure
1.5 bar ... 8 bar
Max. switching frequency
3 Hz
Switching time off
34 ms
On switching time
15 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
1600 µs
Max. negative test pulse on 1 signal
3000 µs
Coil characteristics
22 V DC: 1.0 W
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-5 °C ... 60 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 60 °C
Product weight
145 g
