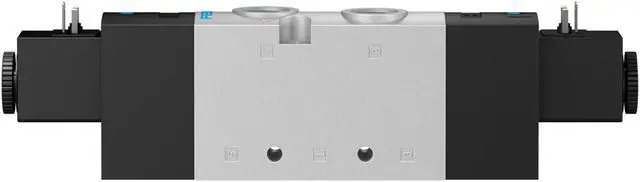

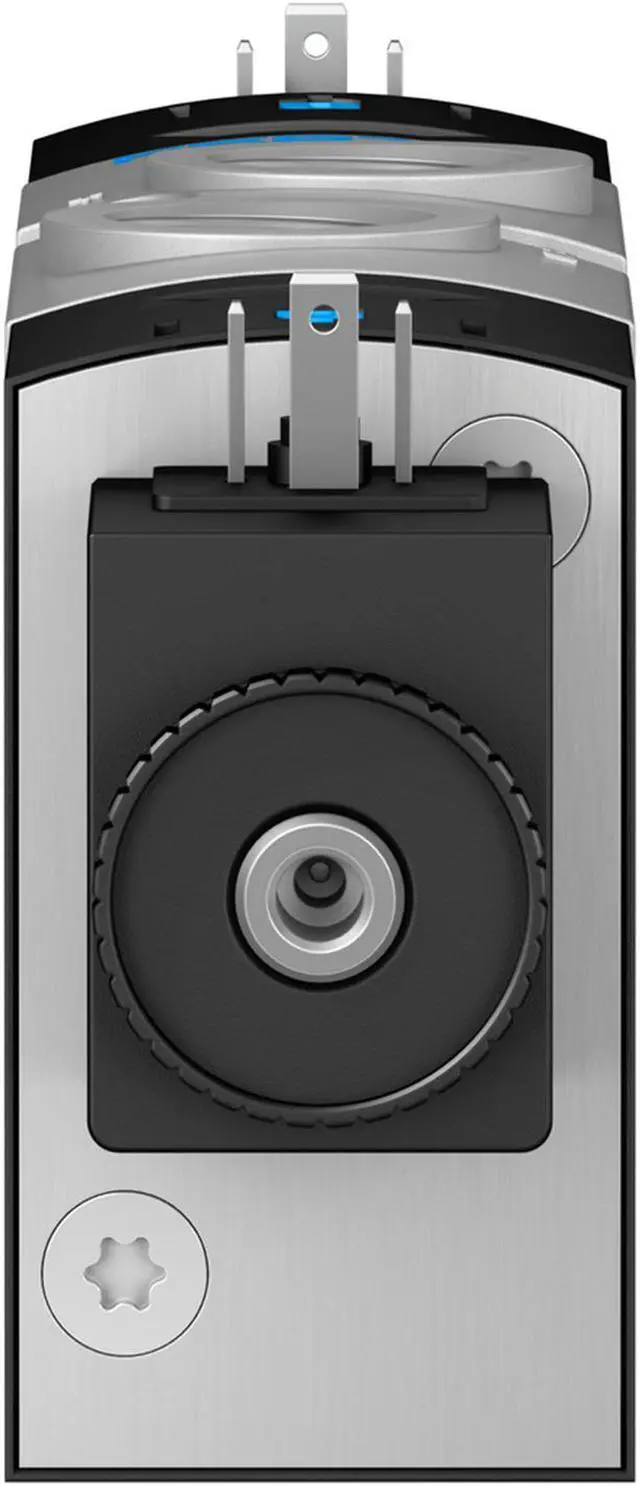

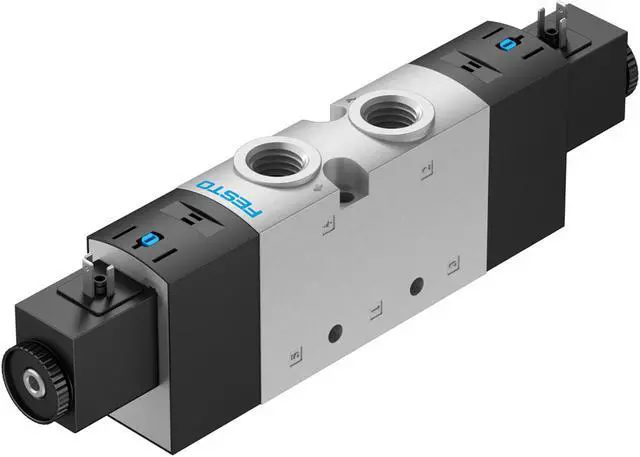

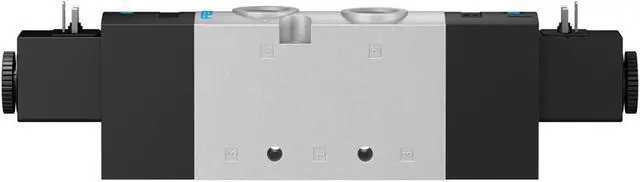

FESTO VUVS-L30-B52-D-G38-F8-1B2 Air Solenoid Valve 575613 New

Valve function
5/2, bistable
Material of screws
Steel, nickel-plated
Lap
Overlap
Actuation type
Electrical
Valve size
31 mm
Standard nominal flow rate
2300 l/min
Pneumatic working port
G3/8
Operating voltage
24V DC
Operating pressure
1.5 bar ... 10 bar
Design
Piston gate valve
Degree of protection
as per IEC 60529
With plug socket
IP65
Certification
c UL us - Recognized (OL)
Nominal width
9.4 mm
Type code
VUVS
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any Manual override
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
b-value
0.4
C value
9.9 l/sbar
Changeover time
13 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
2000 µs
Max. negative test pulse on 1 signal
3600 µs
Coil characteristics
24 V DC: 3.3 W
Permissible voltage fluctuations
+/- 10 %
