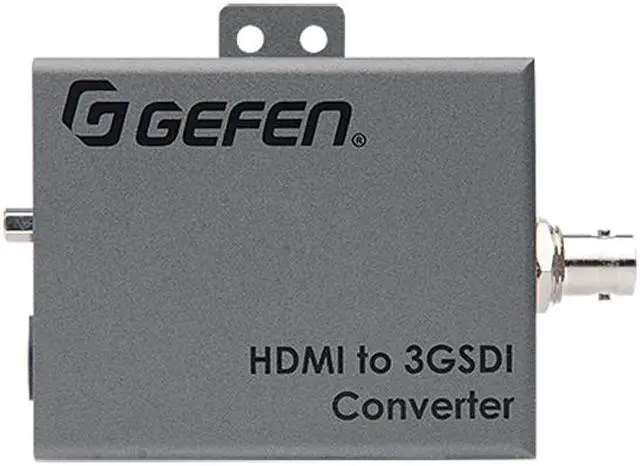

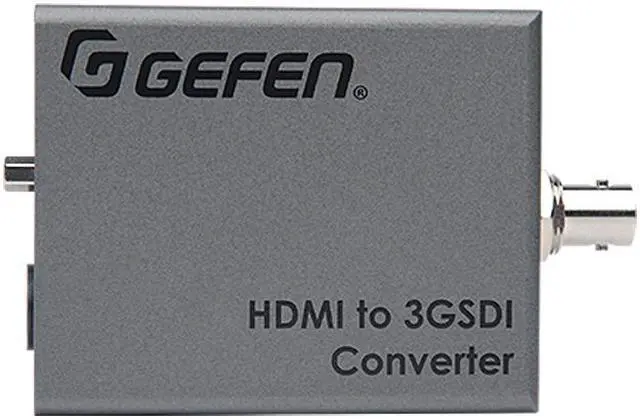

Gefen HDMI to 3GSDI Converter EXT-HD-3G-C

Name: Gefen HDMI to 3GSDI Converter EXT-HD-3G-C
Brand: Gefen
SKU: N82E16815804078
Price: 1351.34 ILS
Availability: InStock

Specs

Reviews

Learn more about the Gefen EXT-HD-3G-C

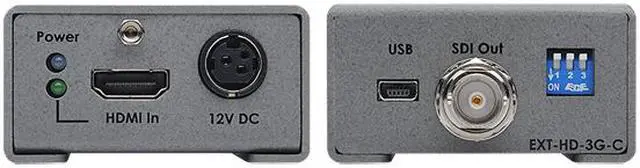

Connection
USB Port	(1) Mini-B

Indicater
LED Indicator	HDMI Indicator: (1) LED, green Power Indicator: (1) LED, blue

Power
Power Consumption	3W maximum
Power Supply	12V DC nominal (6V to 24V DC operating range)

Specification
Specification	Maximum Pixel Clock:150 MHz Maximum TMDS Clock: 225 MHz Video Input Connector: (1) HDMI Type A 19-pin, female, locking Video Output Connector: (1) SDI BNC-type, female Configuration Switches: (3) DIP-type Power Supply Connector: (1) 3-pin, locking Operating Temperature: +32 to +122 °F (0 to +50 °C) Operating Humidity: 5% to 90% RH, non-condensing Storage Temperature: -4 to +185 °F (-20 to +85 °C) Storage Humidity: 0% to 95% RH, non-condensing MTBF: 50000 hours

Feature
Feature	Converts HDMI to SDI Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD Output resolutions up to 1080p60 Supports HDMI 12 bit color and SDI 10-bit color Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr ) Supports 3G-SDI Levels A and B Up to LPCM 7.1 audio support Field configurable via DIP switch settings or Gefen Syner-G software Gefen Syner-G simplifies in-field firmware updates and advanced EDID management Mini USB port for use with Gefen Syner-G Wide power supply operating range (6V to 24V DC) Locking power supply connector 1/4-20 industry-standard camera gear attachment thread on bottom Surface-mountable using the included detachable bracket

Dimensions & Weight
Dimensions	2.9" x 1.2" x 2.3" (excluding connectors, W x H x D)
Weight	0.3 lbs (0.15 kg)
