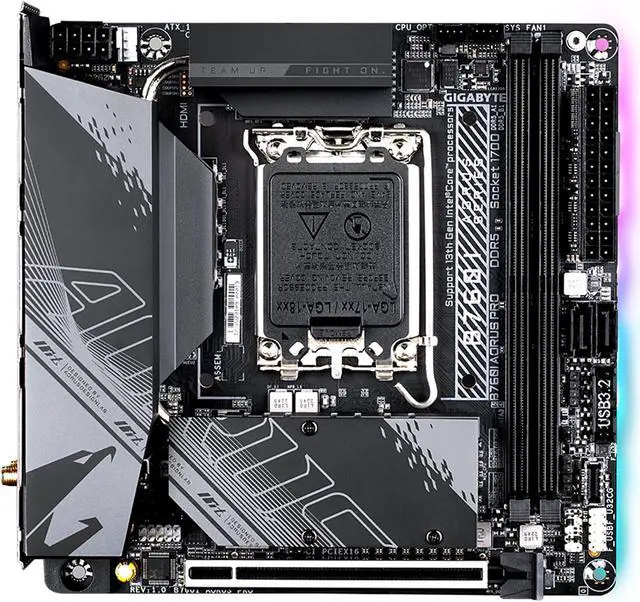

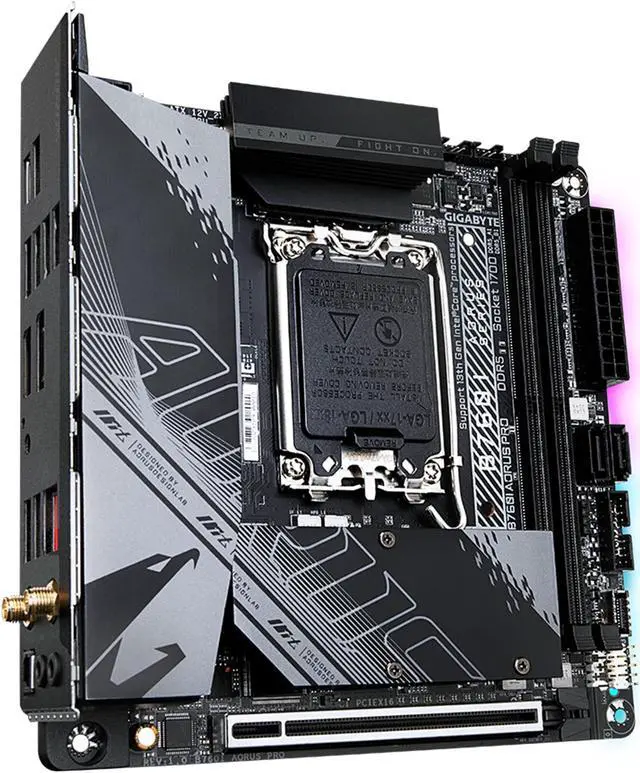

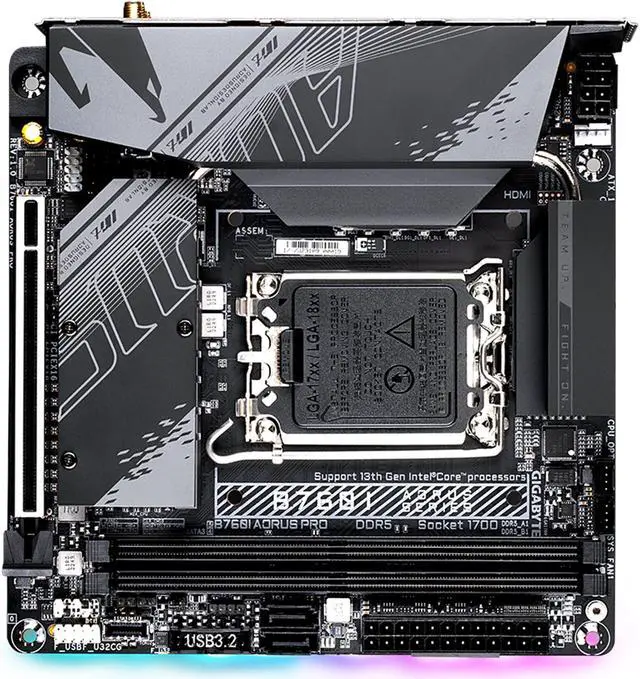

GIGABYTE B760I AORUS PRO LGA 1700 Intel B760 DDR5 SATA 6Gb/s Mini ITX Motherboard

(6) Write a Review

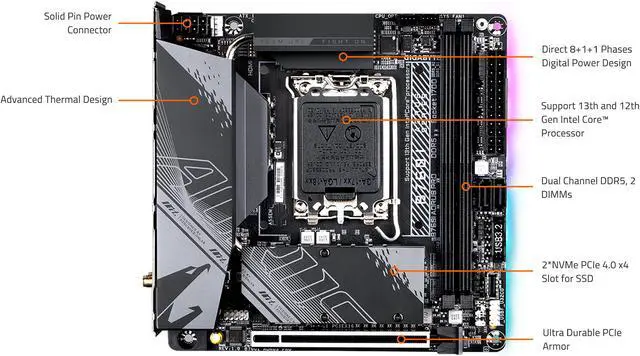

  • Intel Socket LGA 1700: Support 13th and 12th Gen Series Processors
  • Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 2*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design: Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
  • Fast Networks: Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: Front USB3.2 Gen 1 USB-C, Rear USB-C 10Gb/s, DP, HDMI
  • RGB FUSION: Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
+
+
Specs
Reviews (6)

Learn more about the GIGABYTE B760I AORUS PRO

Model
Brand GIGABYTE
Model B760I AORUS PRO
Supported CPU
CPU Socket Type LGA 1700
CPU Type Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors*

* Please refer to "CPU Support List" for more information.
Chipsets
Chipset Intel B760
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported 96GB
Channel Supported Dual Channel
Memory Feature 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16 CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Devices
Serial ATA (SATA) 2 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
SATA RAID RAID 0 and RAID 1 support for SATA storage devices
Onboard Audio
Audio Chipset Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 802.11 ax
Bluetooth BLUETOOTH 5.3

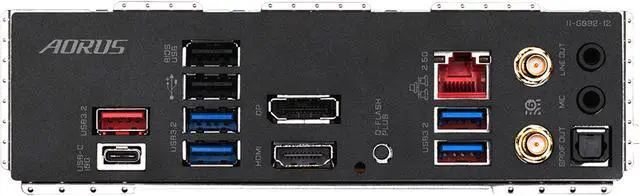

Rear Panel Ports
Back I/O Ports 1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header
Software Feature
Windows 11 Supported
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Additional Information
First Listed on Newegg April 08, 2024
