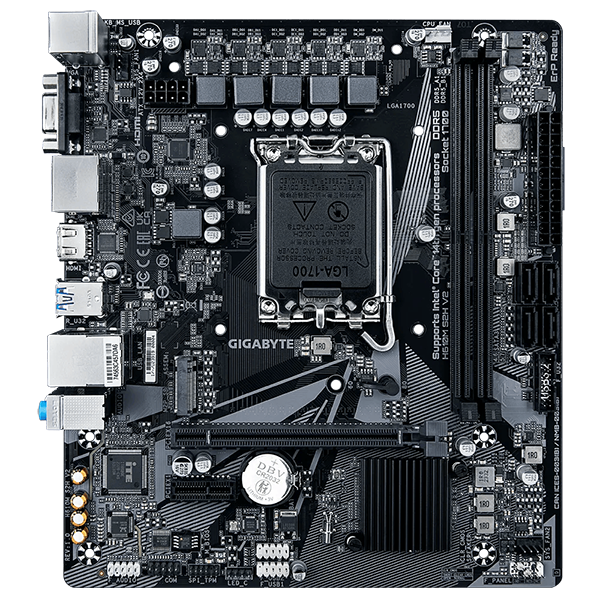

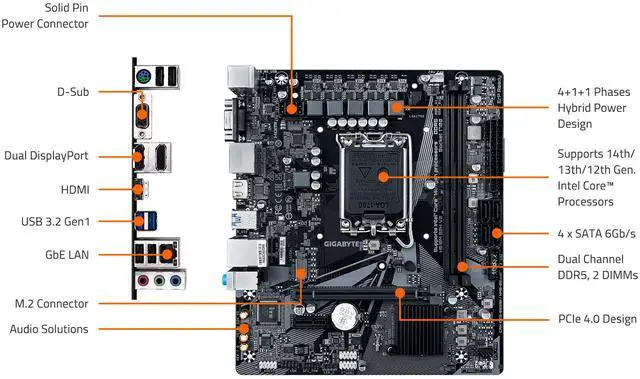

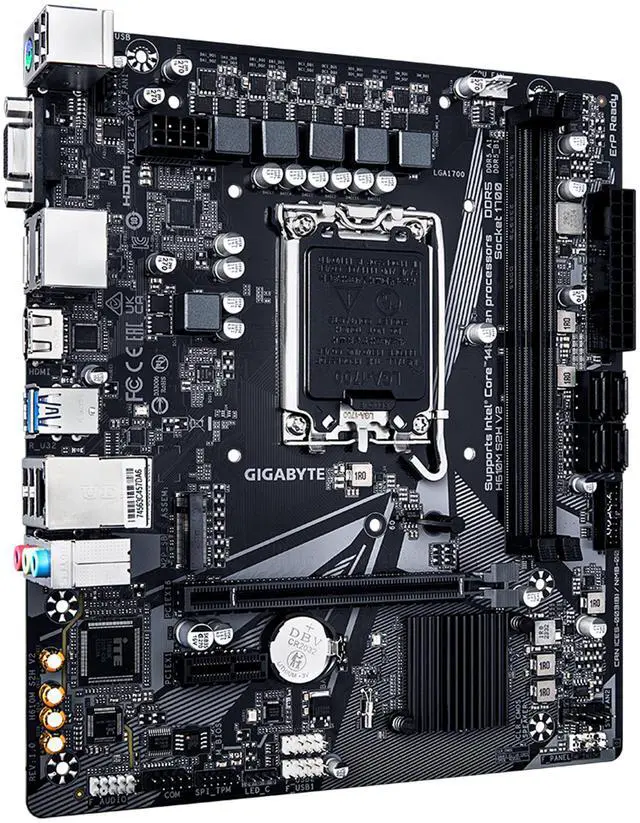

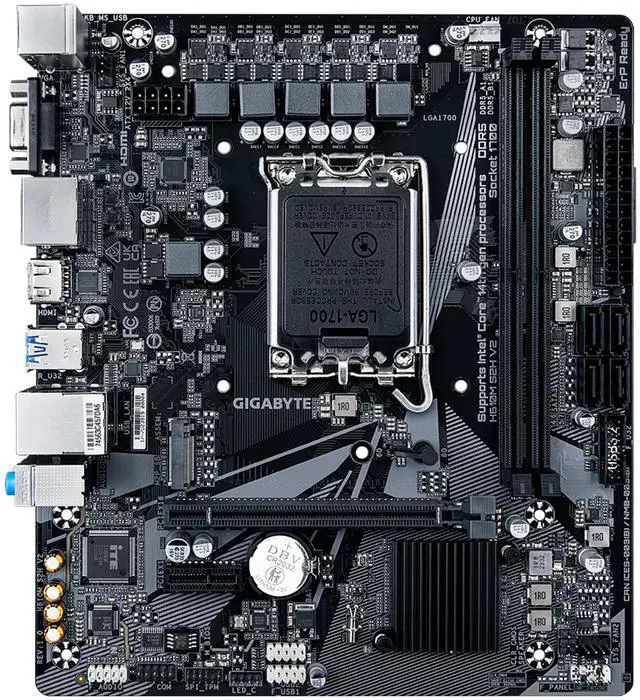

H610M S2H V2
POWER

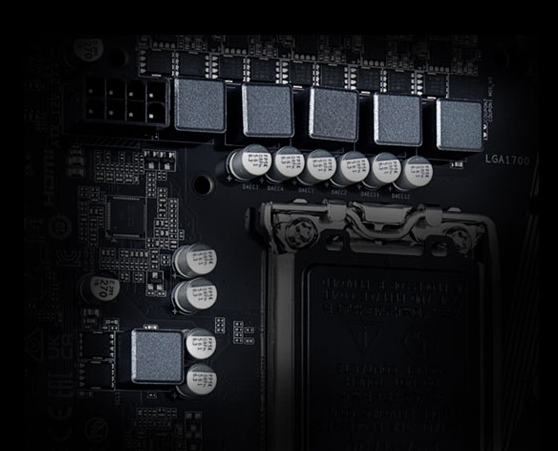

4+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 4+1+1 Phases Low RDS(on) MOSFETs.
- Solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.

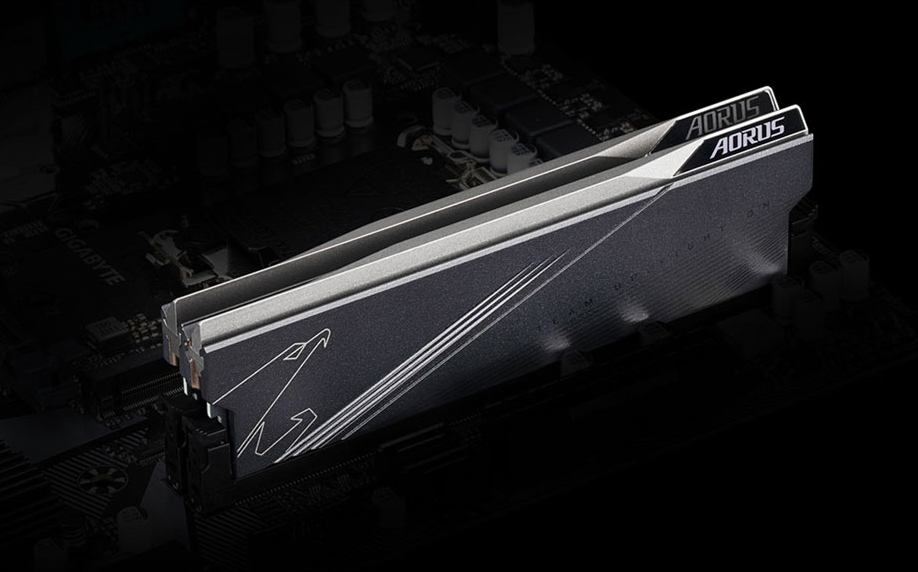

DDR5
Support for DDR5 XMP Up to 5600 and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600 and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
* XMP profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

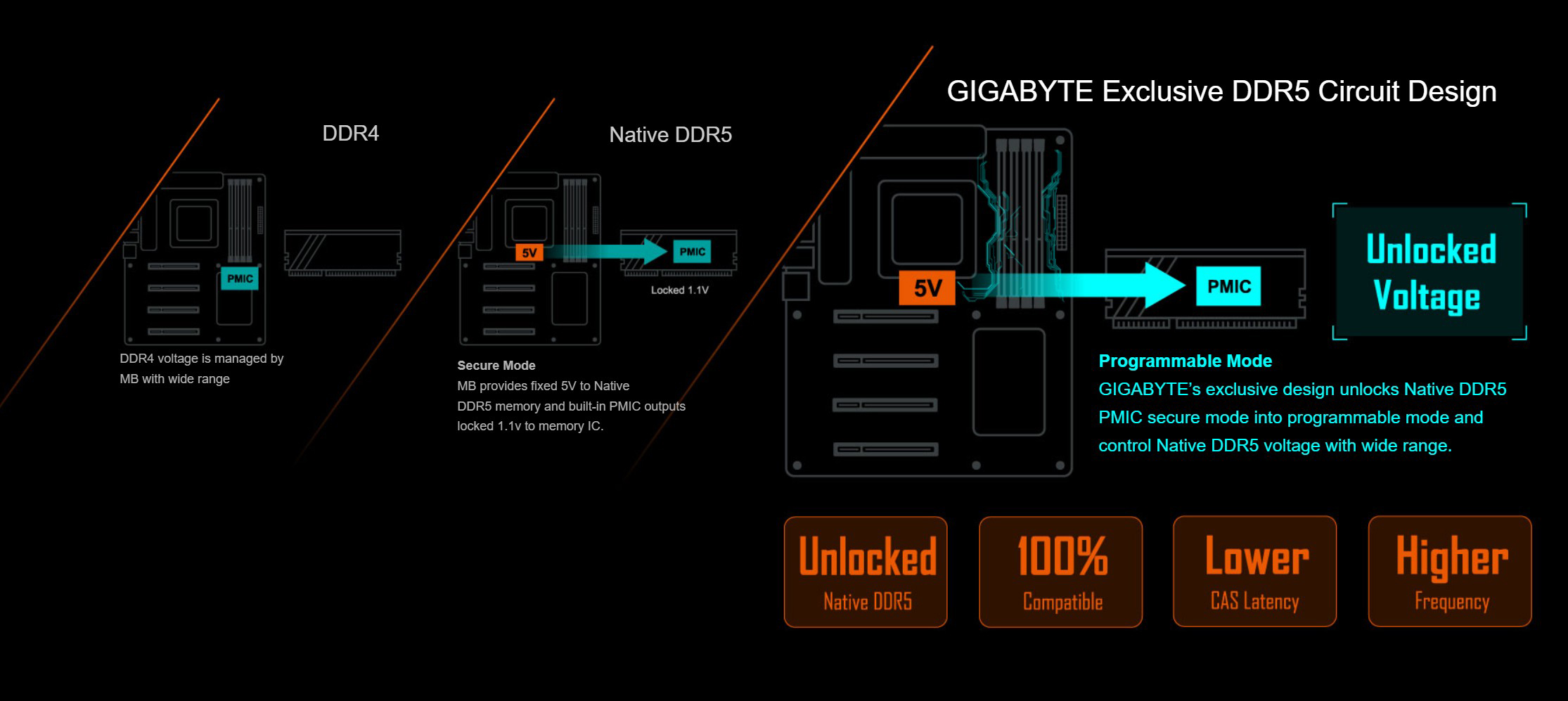

Unlock DDR5 Voltage
- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- Transforms Native DDR5 memory module to Overclocked DDR5 memory
- Increases DDR5 memory overclocking performance and capability
- Supports all PMIC vendors for maximum compatibility
* Memory overclocking capabiblity will vary based on users' hardware configuration

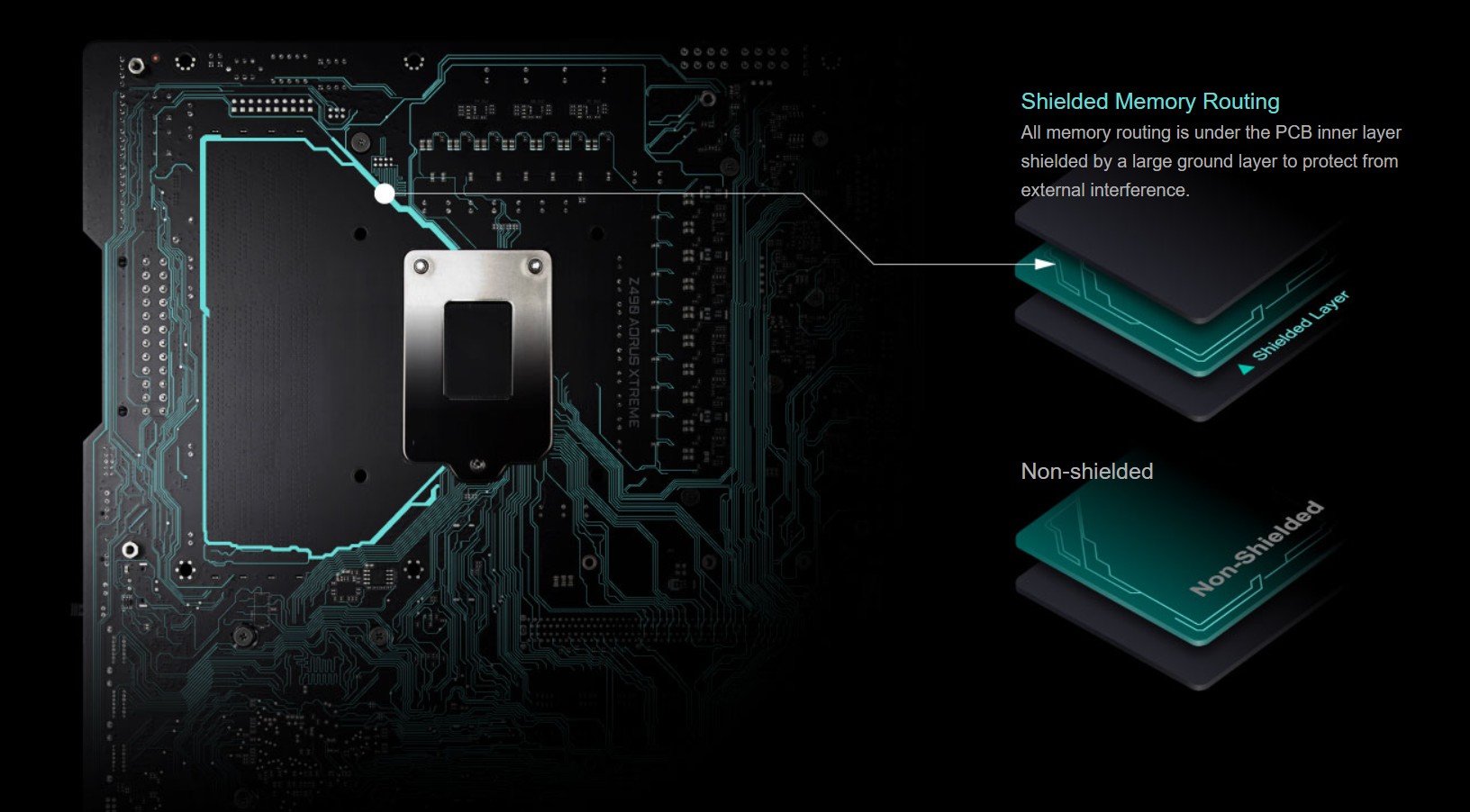

Shielded Memory Routing
XMP 3.0
DDR5 Memory Upgrade

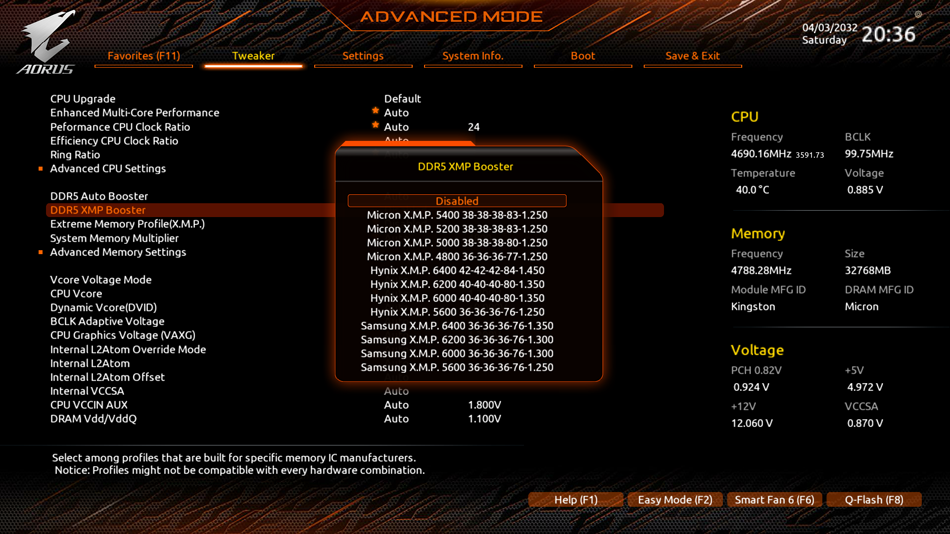

GIGABYTE BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential. This is a time saving feature to manually configure overclocked DDR5 memory kits.
- Instantly upgrade memory performance
- Overclock Native and XMP 3.0 DDR5 memory to higher frequency easily
- No need to input dozens of memory parameters such as clock, voltage and timings
- Built-in wide variety pre-tuned profiles database for different memory IC vendors
* DDR5 MEMORY UPGRADE involves DDR5 memory overclocking, overclocking capability depends on users’ hardware configuration

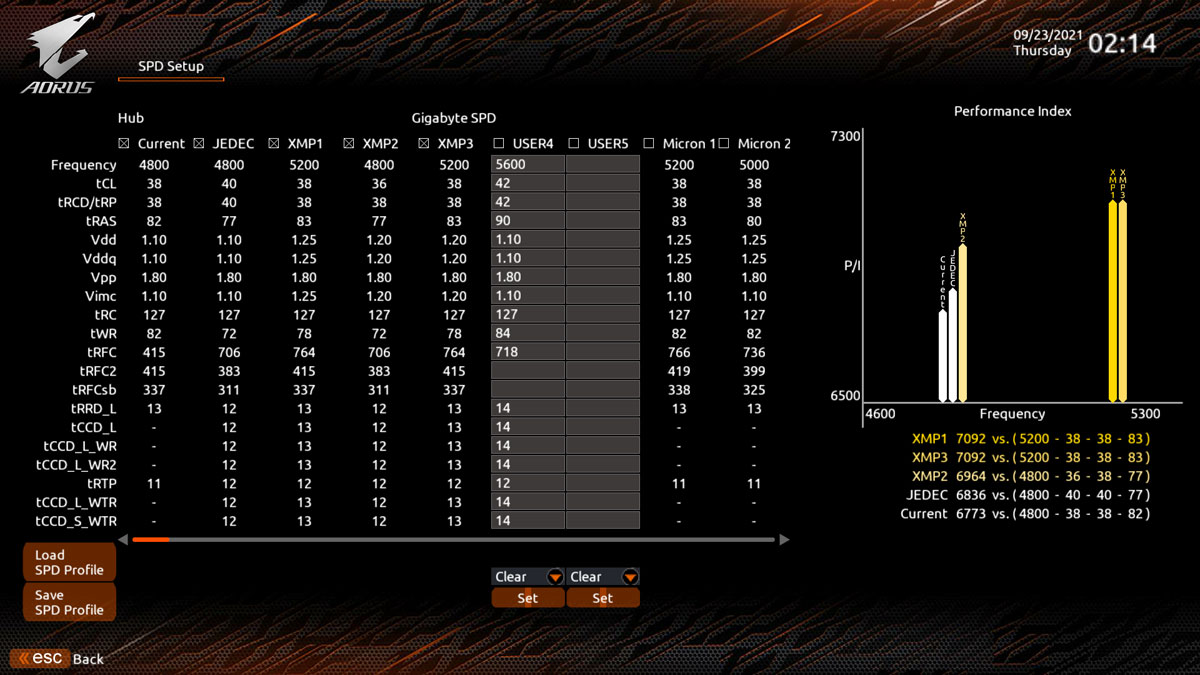

XMP 3.0 User Profile
Define and create your own SPD profile into Native and XMP 3.0 memory modules or apply the pre-tuned profiles to XMP 3.0 User Profile. Two user-defined profiles can be saved, loaded either locally or from/to an external storage device.
- Two empty SPD profiles can be defined by users and carry to next computer
- Transfer DDR5 XMP Booster profiles into XMP 3.0 User Profiles
- Quick memory performance simulation based on user input clock and timing parameters
- Profile save and load function to share your memory parameters online
SPD Re-defined or retrieve from database
Performance Simulation
Save/Load Profile
Overclocked Performance
Profile Clearance
PERFORMANCE

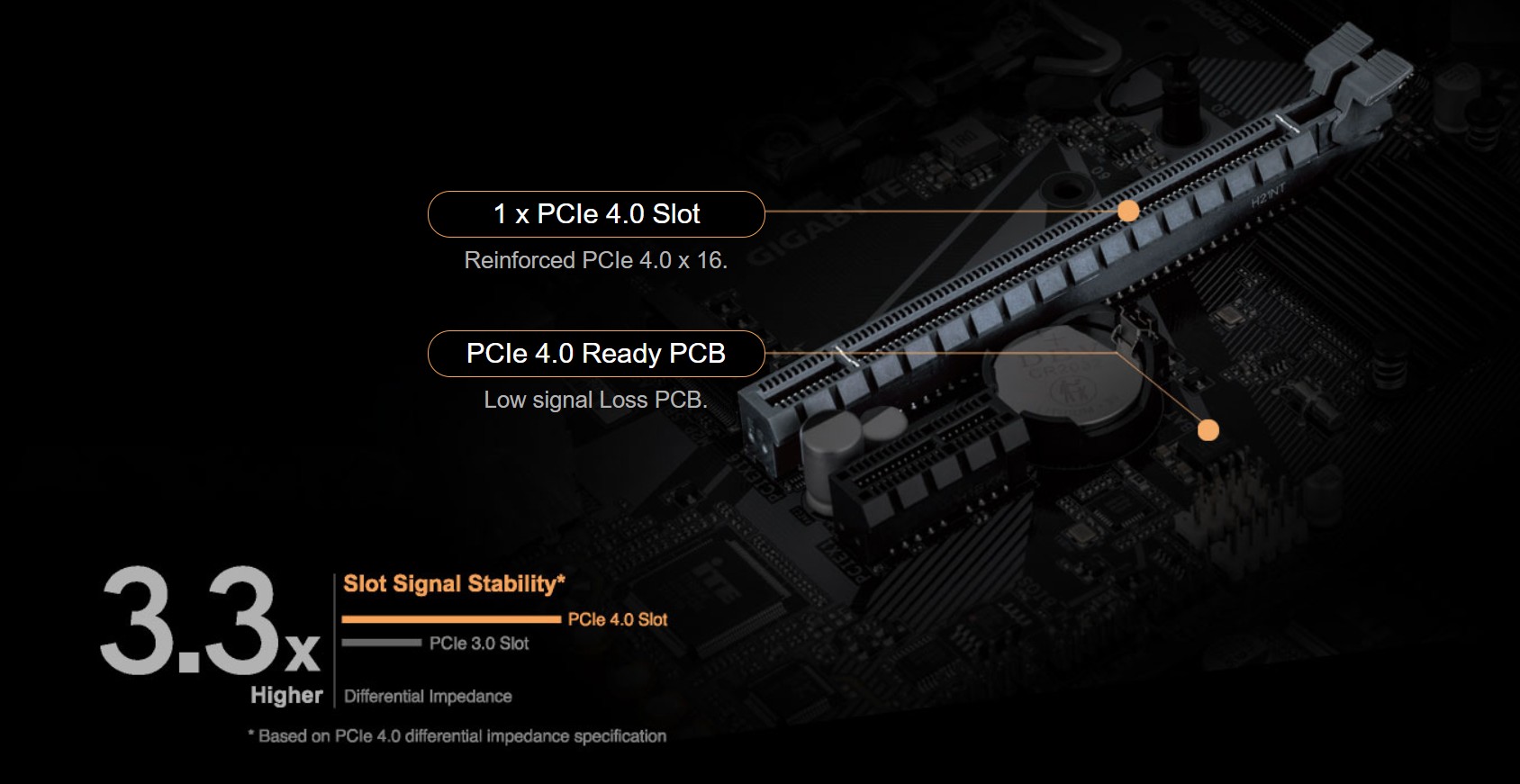

PCIe 4.0 Design
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Headers & Sensors
3 PWM/DC Fan Headers

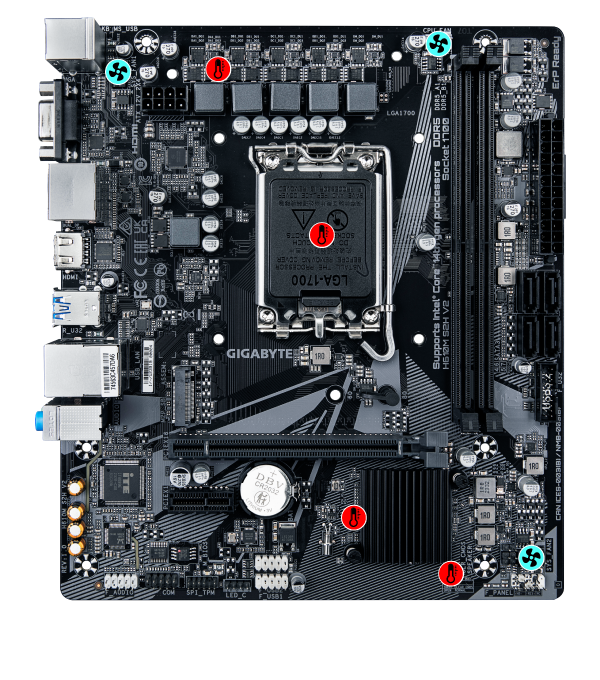

4 Internal Temperature Sensors
Cooling Features
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control
Up to 7 temperature/fan speed control points for precise fan curve
Dual Curve Mode
Slope/Stair dual mode for different user scenario
Fan Stop
Fan can stop completely below users' specified temperature point

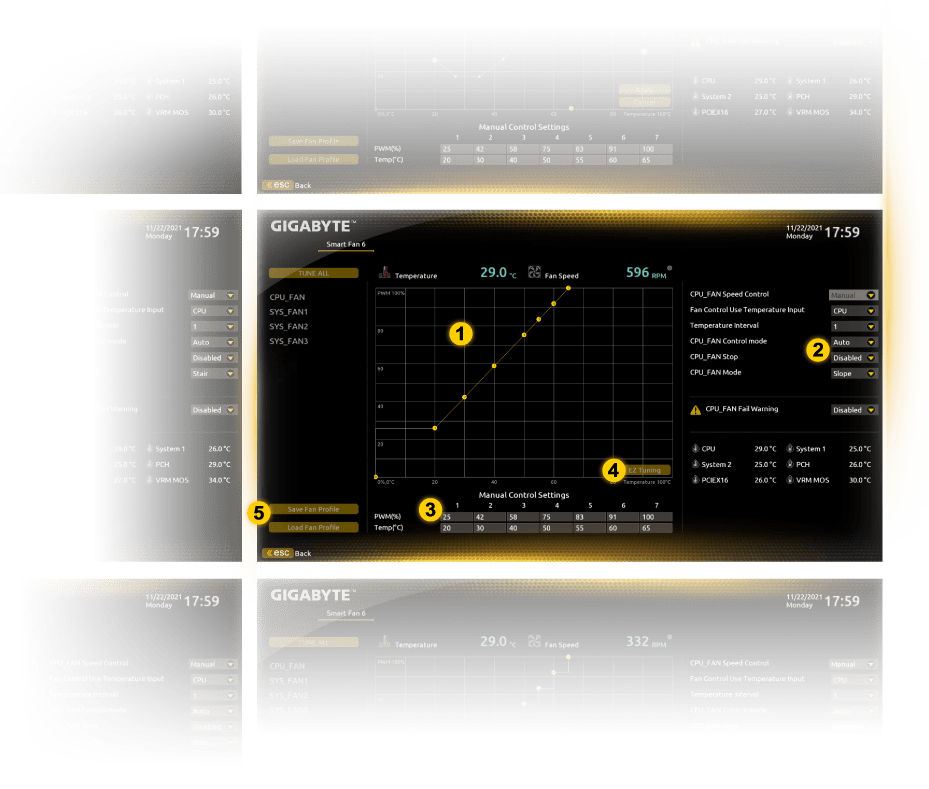

Smart Fan 6 BIOS UI
1 Improve fan curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
2 Slope/Stair dual graph mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
3 Manual Input
For advanced users, we provide fan speed manual input for more precise control.
4 EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
5 Fan curve profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS
Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
CONNECTIVITY
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

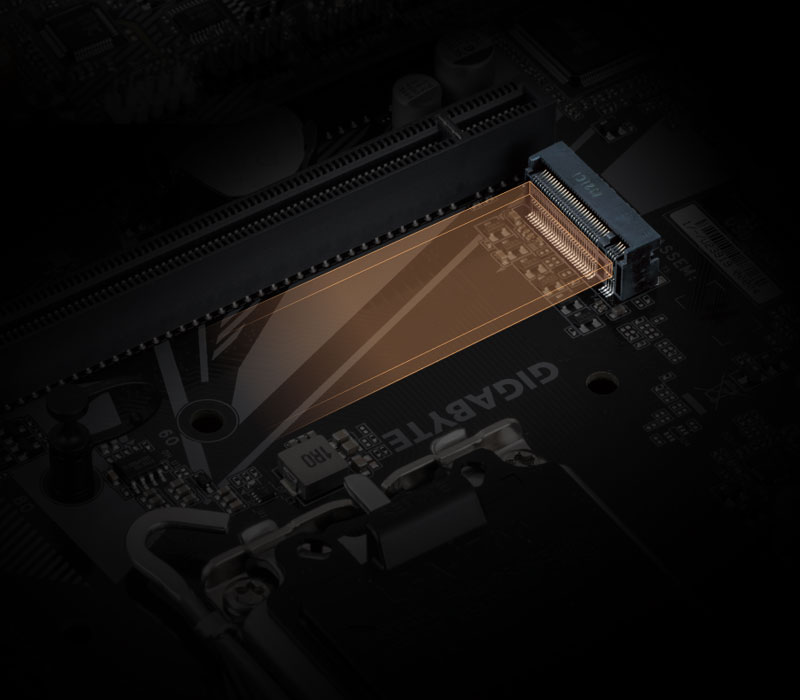

NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Hi-Fi Audio

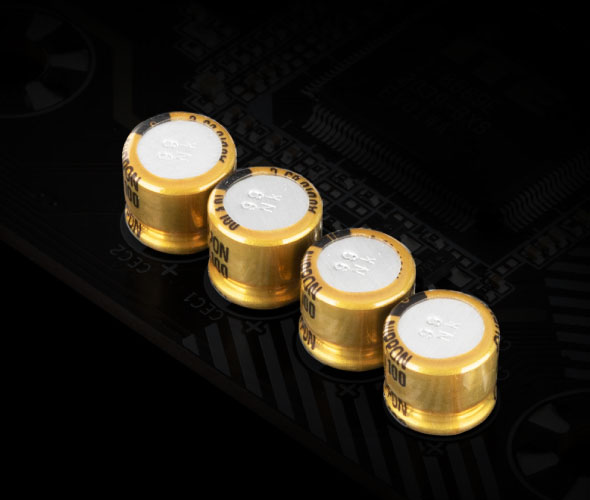

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
* Photo for reference only.

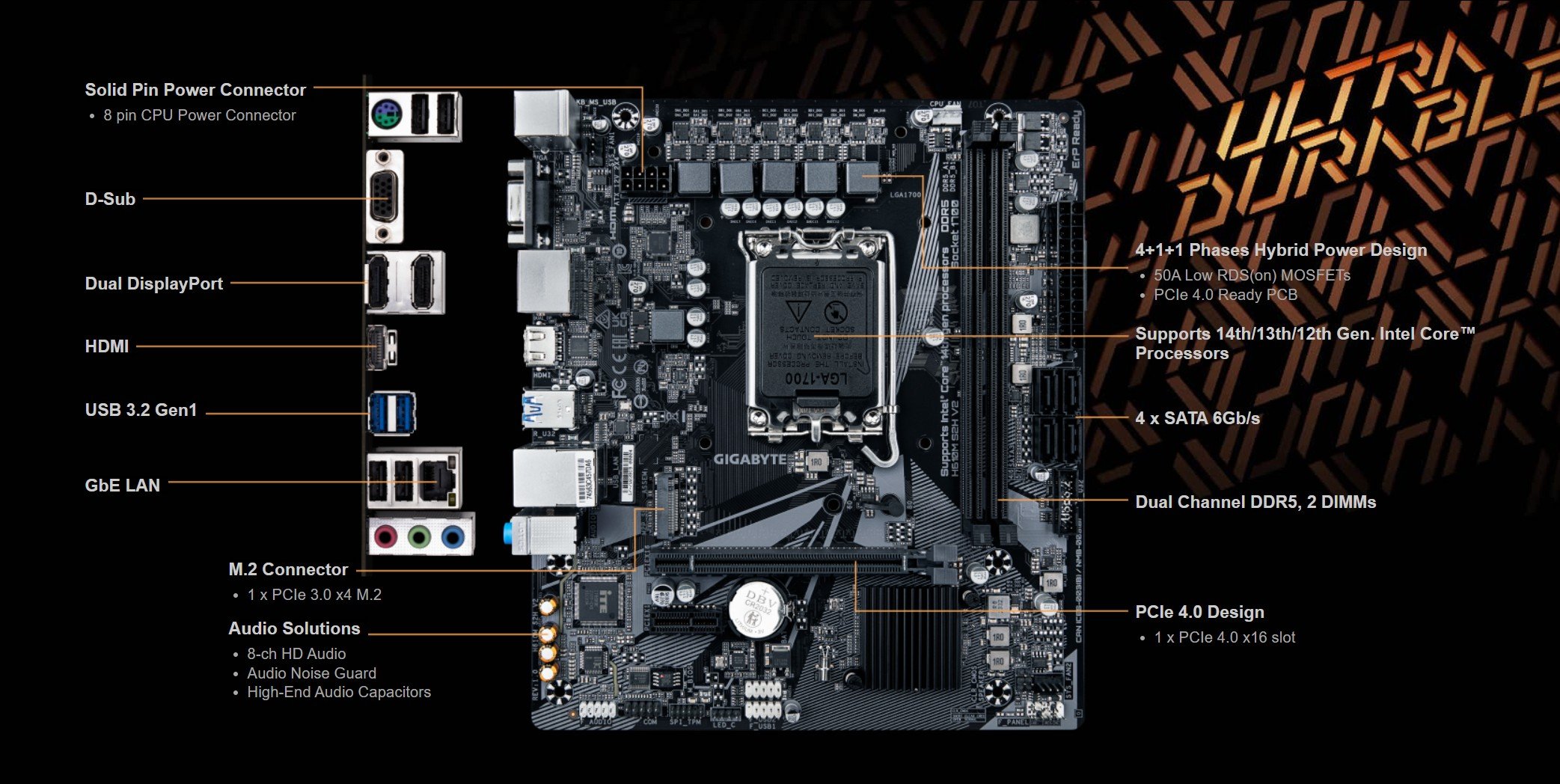

ULTRA DURABLE

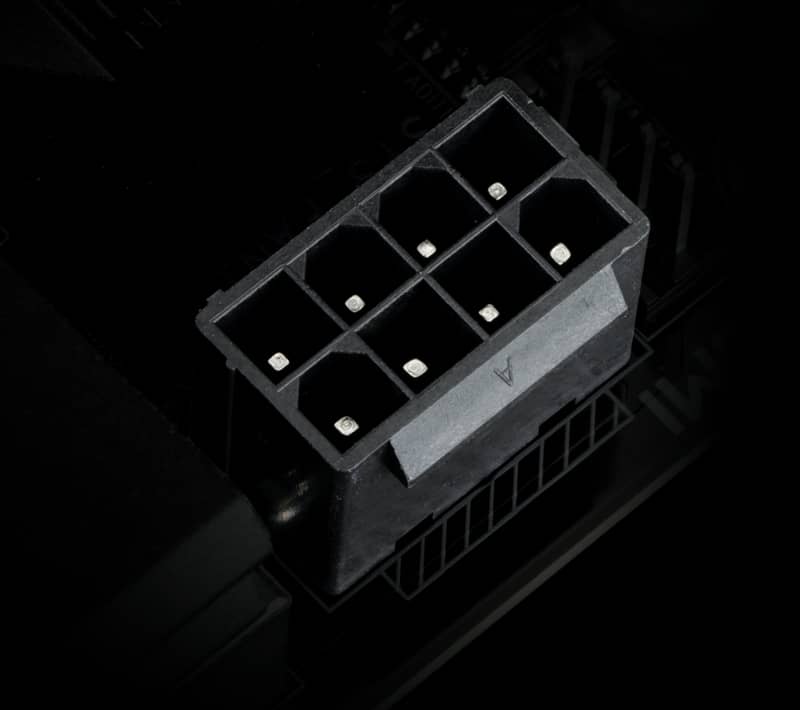

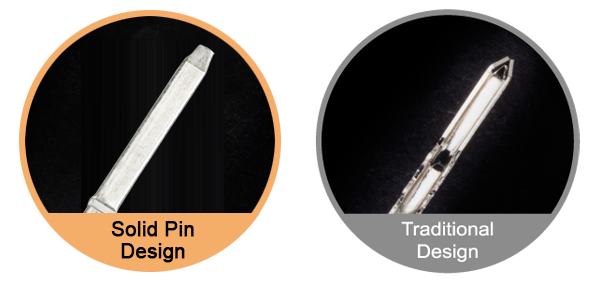

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power Connectors
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan

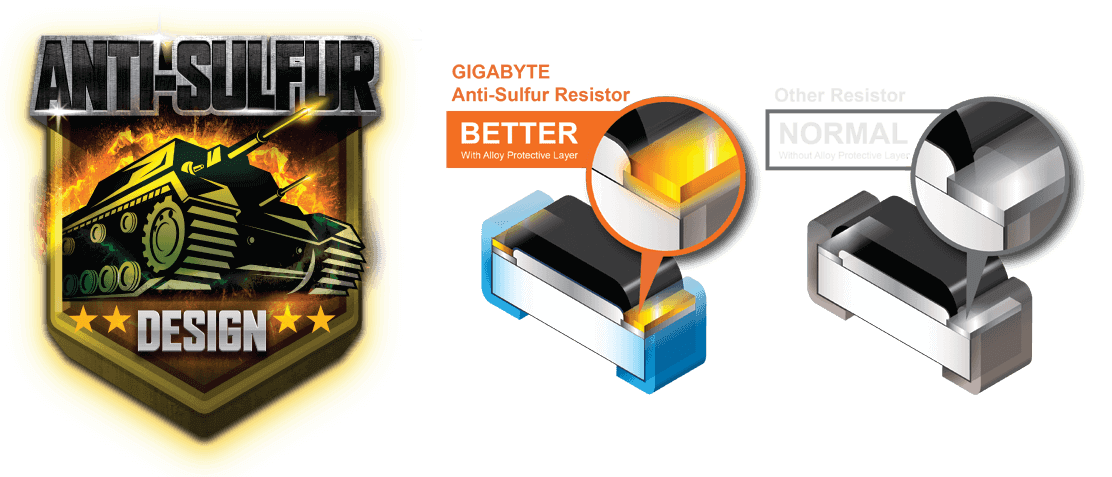

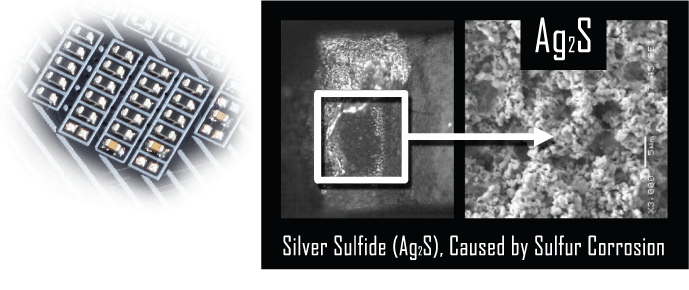

Anti-Sulfur
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
SOFTWARE

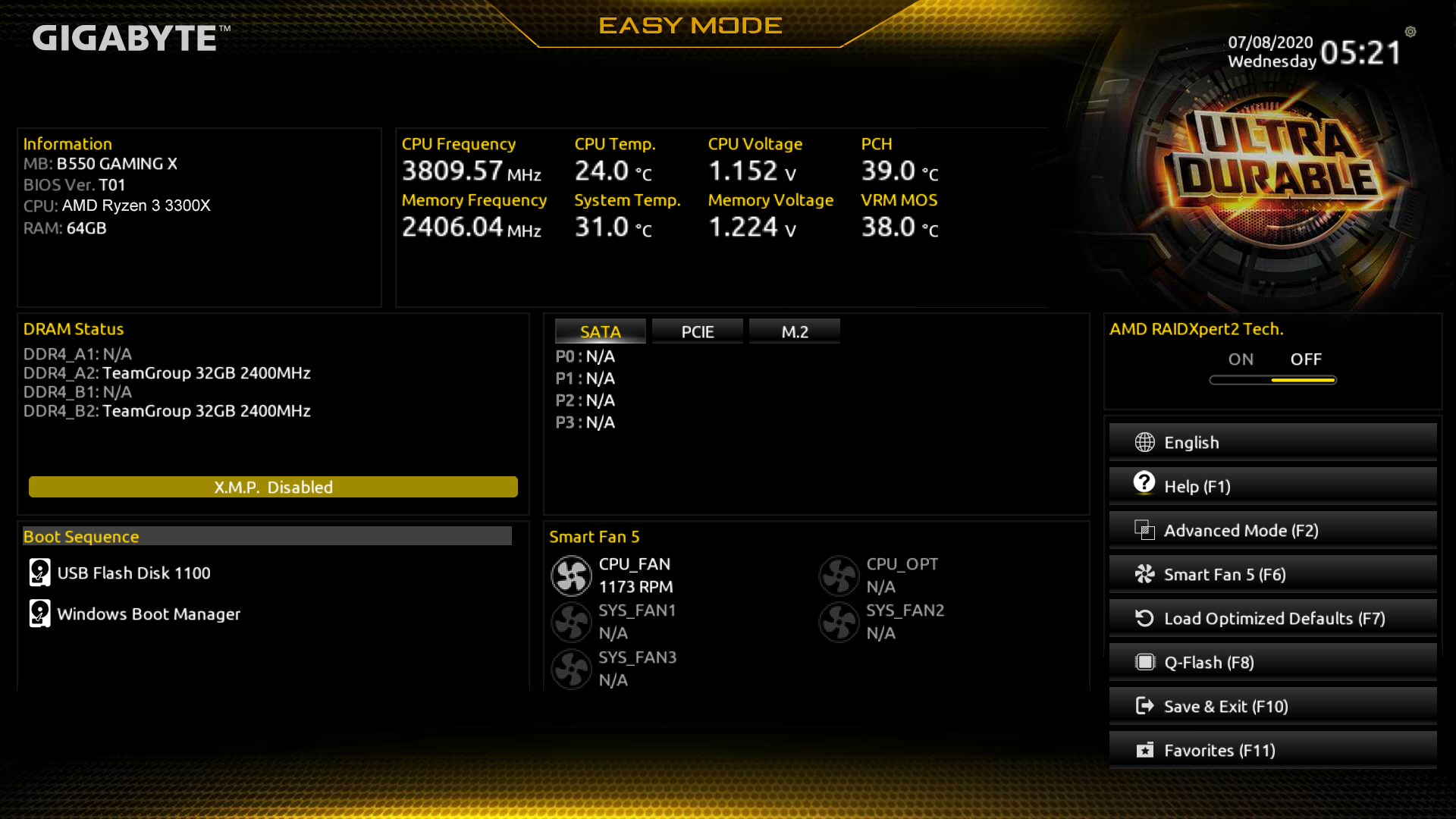

BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.

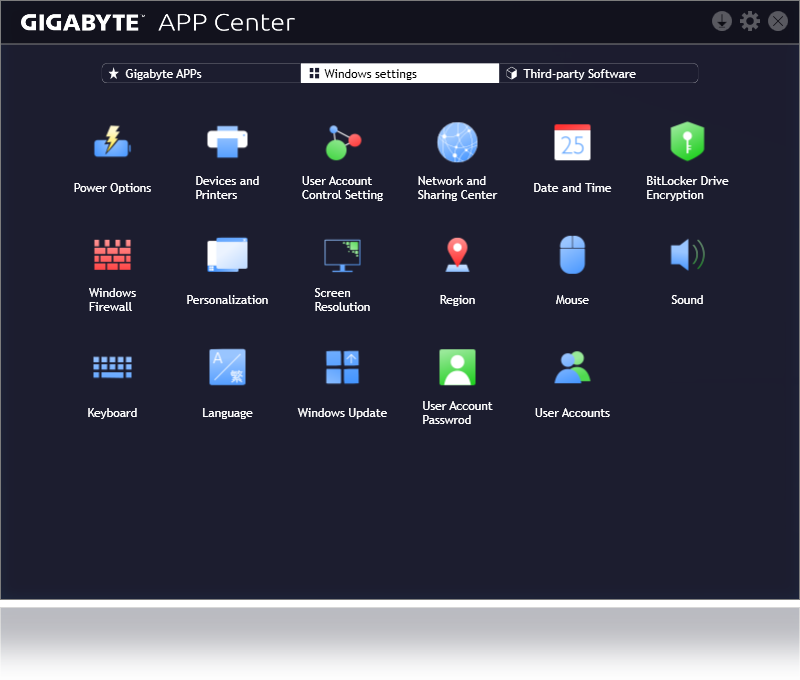

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
