₪3,199.00
VAT-Inclusive Price
Ships from China.
Most customers receive within 10-17 days.
Meet Your Seller

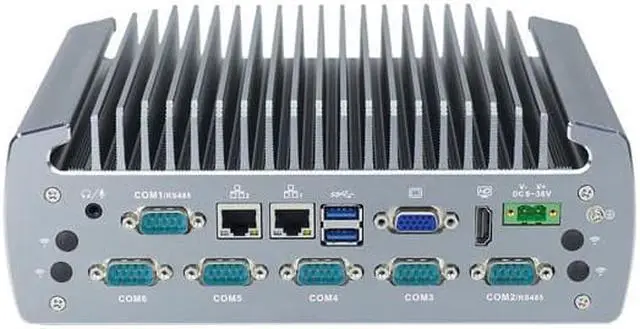

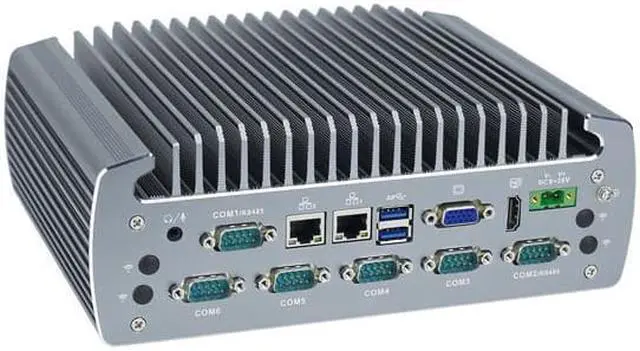

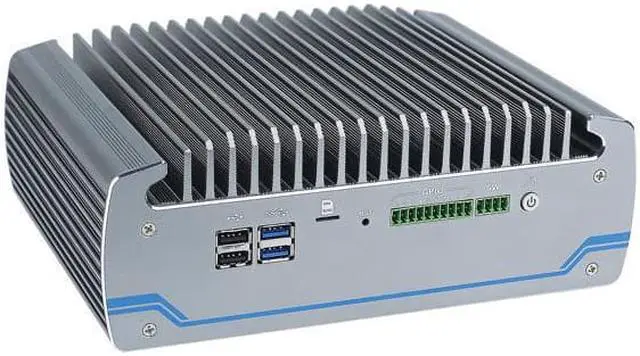

Fanless Industrial Computer, Mini PC, I5 6200U, HUNSN IX06, 4PIN Phoenix, 10PIN GPIO Phoenix, HDMI, VGA, 2 x LAN, 6 x COM, 2 x SIM Slot, 9 to 36V, Barebone, NO RAM, NO Storage, NO System
- Powered by intel core i5 6200u processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Fanless passive cooling design, silent solution thats ultra energy-efficient
- HUNSN IX06 designed with dc_in, 4 pin switching signal phoenix connector, 10 pin gpio phoenix connector 3.3v/5v, rst, sim slot, 4 x usb3.0, 2 x usb2.0, hdmi, vga, 2 x lan, 6 x com (com1/2 for rs232/rs422/485), audio, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, IPC type with mounting earsSize at 230 x 175 x 84mm, 2.8kgs, 12v 5a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful industrial comptuer
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN IX06
Material: Aluminum
CPU: Intel® Core i5-6200U Processor 3M Cache, up to 2.80 GHz
BIOS: AMI EFI
Memory: 1 x SO DIMM DDR4-2133, MAX. 32GB RAM
Storage: 1 x M.2 2280 SATA/ PCIE X4 SSD, 1 x 2.5 inch SATA SSD/HDD support RAID0/1
Network: 2 x Intel I211-AT
Expansion 1: 1 x M.2 for 3G/4G, with sim slot, 1 x Mini PCIE for WiFi/4G, with sim slot
Expansion 2: 10 x COM, 1 x LPT, 1 x PCIE X1 Optional
WiFi: 802.11ac 2.4Ghz and 5Ghz
Bluetooth: 4.0/4.2
I/0 Port: DC_IN, 4 PIN Switching Signal Phoenix Connector, 10 PIN GPIO Phoenix Connector 3.3V/5V,RST, SIM Slot, 4 x USB3.0, 2 x USB2.0, HDMI, VGA, 2 x LAN, 6 x COM (COM1/2 for RS232/RS422/485), Audio
Input Voltage: DC 936V wide voltage Input, support positive pole and negative electrode connect reversely protection
Power Supply: DC100-240V AC/50-60Hz, DC 12V5A
Operating Temperature: 0°C~50°C Commercial HDD, -20°C~60°C Industrial SSD, surface air flow
Working Humidity: 5%~95% (non-condensing)
Size: 230 x 175 x 84mm
Weight: 2.8kgs
Consumption: 15W
Cooling system: Fanless
Packing List: HUNSN IX06 industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card
Warranty: 3 years
System Support: Windows 10/11, Linux Ubuntu
Model Number: HUNSN IX06
Material: Aluminum
CPU: Intel® Core i5-6200U Processor 3M Cache, up to 2.80 GHz
BIOS: AMI EFI
Memory: 1 x SO DIMM DDR4-2133, MAX. 32GB RAM
Storage: 1 x M.2 2280 SATA/ PCIE X4 SSD, 1 x 2.5 inch SATA SSD/HDD support RAID0/1
Network: 2 x Intel I211-AT
Expansion 1: 1 x M.2 for 3G/4G, with sim slot, 1 x Mini PCIE for WiFi/4G, with sim slot
Expansion 2: 10 x COM, 1 x LPT, 1 x PCIE X1 Optional
WiFi: 802.11ac 2.4Ghz and 5Ghz
Bluetooth: 4.0/4.2
I/0 Port: DC_IN, 4 PIN Switching Signal Phoenix Connector, 10 PIN GPIO Phoenix Connector 3.3V/5V,RST, SIM Slot, 4 x USB3.0, 2 x USB2.0, HDMI, VGA, 2 x LAN, 6 x COM (COM1/2 for RS232/RS422/485), Audio
Input Voltage: DC 936V wide voltage Input, support positive pole and negative electrode connect reversely protection
Power Supply: DC100-240V AC/50-60Hz, DC 12V5A
Operating Temperature: 0°C~50°C Commercial HDD, -20°C~60°C Industrial SSD, surface air flow
Working Humidity: 5%~95% (non-condensing)
Size: 230 x 175 x 84mm
Weight: 2.8kgs
Consumption: 15W
Cooling system: Fanless
Packing List: HUNSN IX06 industrial pc, bracket, power supply, power cord, WiFi antennas, warranty card
Warranty: 3 years
System Support: Windows 10/11, Linux Ubuntu
