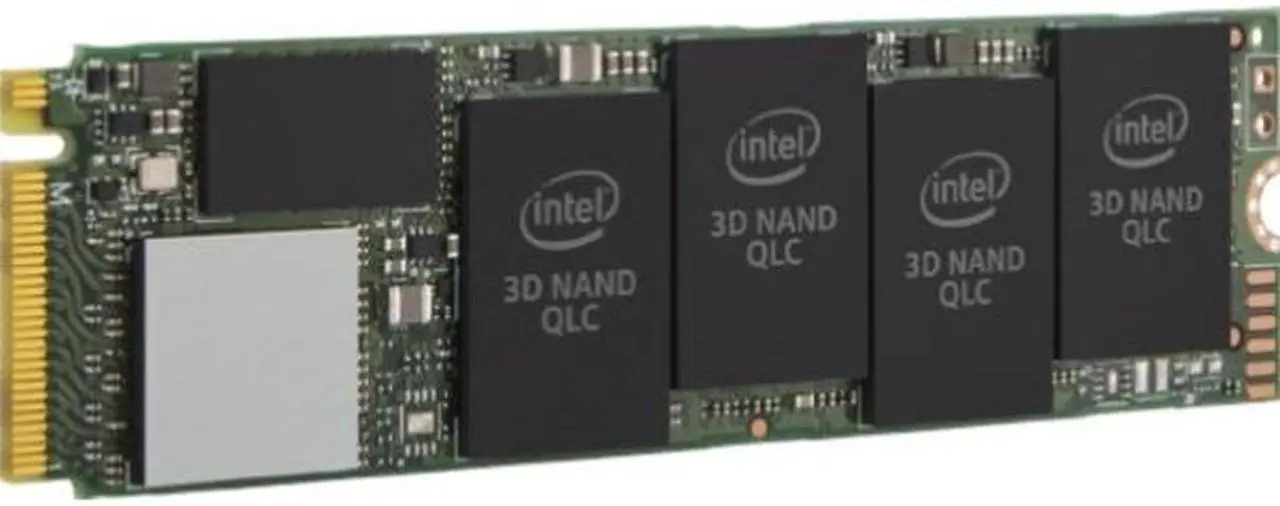

Intel 660p Series M.2 2280 512GB PCIe 3.0 x4, NVMe 3D2 QLC Internal Solid State Drive (SSD) SSDPEKNW512G8X1

Ships from United States.
Most customers receive within 3-31 days.
  • M.2 2280
  • 512GB
  • PCIe 3.0 x4, NVMe

Learn more about the Intel SSDPEKNW512G8X1

Brand Intel
Series 660p Series
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Form Factor M.2 2280
Capacity 512GB
Memory Components 3D2 QLC
Interface PCIe 3.0 x4, NVMe
Max Sequential Read Up to 1500 MBps
Max Sequential Write Up to 1000 MBps
4KB Random Read Up to 90,000 IOPS
4KB Random Write Up to 220,000 IOPS
MTBF 1,600,000 hours
Features Endurance Rating (Lifetime Writes): 100 TBW

Empowered by Intel's innovative Intel's 3D NAND QLC technology, this SSD offers higher capacities at a lower cost than TLC-based storages.

With PCIe, the new Intel SSD 660p skips SATA and its limitations. The future of storage is built on PCIe, NVMe and QLC technologies, so choose the Intel SSD 660p, ideal for Laptops and Desktops running everyday computing applications.

Compared to TLC's capacity, Intel 3D NAND QLC technology stores more bits per cell, allowing for higher capacity, faster read performance and lower power consumption per drive.

This technology makes the most of small spaces by expanding capacities up to 2TB of storage on small M.2 form factor.
Power Consumption (Idle) 40 mW
Power Consumption (Active) 100 mW
Operating Temperature 0°C ~ +70°C
Storage Temperature -55°C ~ +95°C
Operating Humidity 5-95%
Max Shock Resistance 1000G
Max Vibration Resistance Operating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Dimensions & Weight
Height 2.38mm
Width 22.00mm
Depth 80.00mm
Weight < 10.00g
Additional Information
Date First Available January 22, 2021
