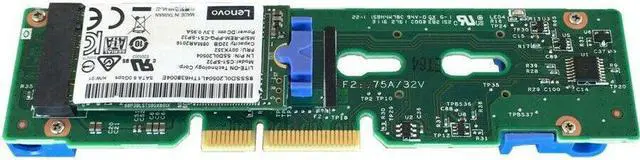

Lenovo 7Y37A01093 Thinksystem M.2 Mirroring Enablement Kit - Storage Controller - M.2 - SATA 6Gb/S - 600 Mbps
- 7Y37A01093
- Black
+
+
Overview
Specs
Reviews
Product Information

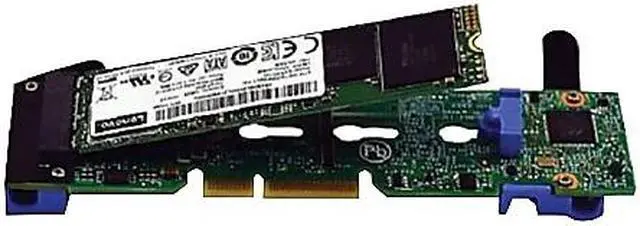

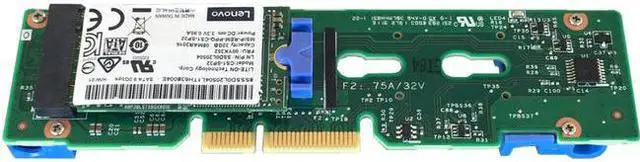

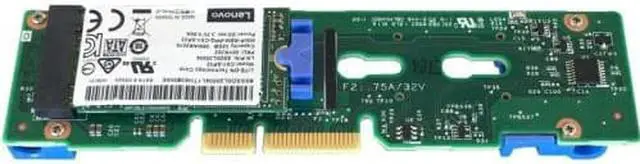

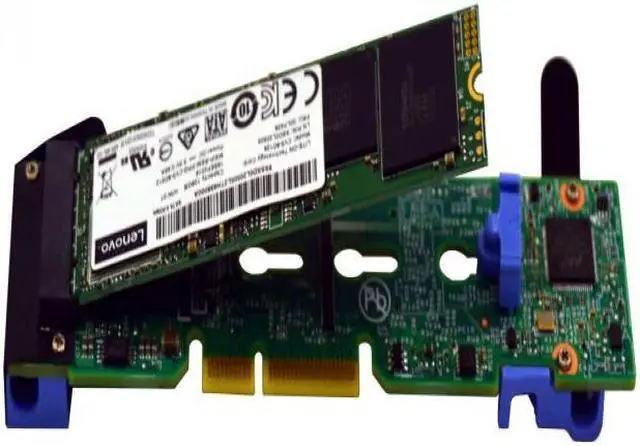

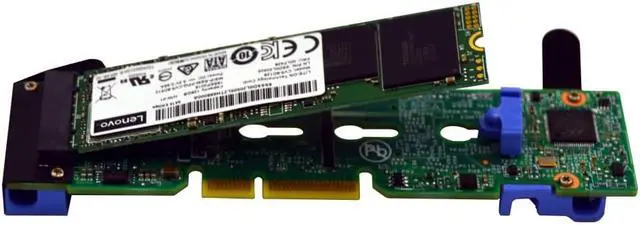

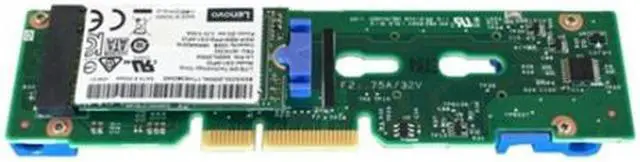

Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter, which is installed in a dedicated slot on the system board of the ThinkSystem server. A Dual M.2 Adapter supports one or two M.2 drives.
NOTE: The Lenovo Dual M.2 Adapter does NOT come with an M.2 drive.
Features
- PCIe 2.0 x2 host interface (connects to the PCH)
- Based on the Marvell 88SE9230 6 Gbps SATA controller
- Supports one or two 6 Gbps SATA M.2 drives**
- Supports 3 different physical sizes of M.2 drives: 42mm (2242), 60mm (2260) and 80mm (2280)*
- RAID functionality provided by the M.2 adapter
- RAID 1 by default; also supports RAID 0 and JBOD
- UEFI-based settings to enable/disable RAID mode and to review inventory
- Supports Secure Boot
- Adapter and drive firmware update using Lenovo firmware tools
- Management via I2C interface
Compatibility:
- Lenovo ThinkSystem Rack Servers
- ST550
- SR530
- SR550
- SR570
- SR590
- SR630
- SR650
- SR850
- SR860
- SR950
- SD530
- SN550
- SN850
