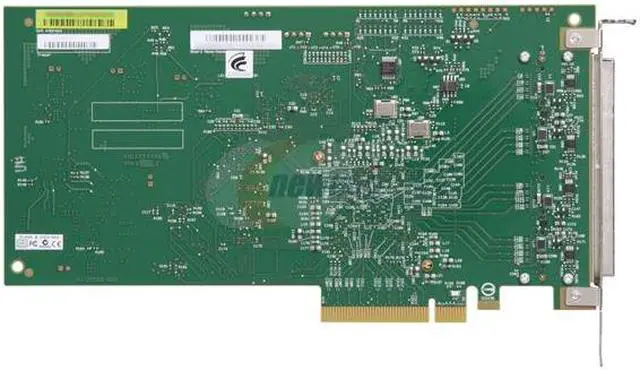

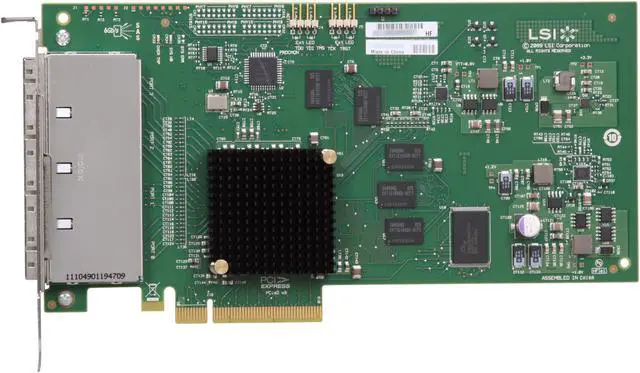

The LSI SAS 9200-16e host bus adapter enables large-scale storage arrays through sixteen high-speed 6Gb/s ports, supporting up to 1024 SATA and SAS physical devices. The LSI SAS 9200-16e HBA doubles the performance of previous generation SATA+SAS HBAs and are great for driving cost-effective and reliable scalability in today’s data centers.
The LSI SAS 9200-16e host bus adapter enables large-scale storage arrays through sixteen high-speed 6Gb/s ports, supporting up to 1024 SATA and SAS physical devices. The LSI SAS 9200-16e HBA doubles the performance of previous generation SATA+SAS HBAs and are great for driving cost-effective and reliable scalability in today’s data centers.
SAS 6Gb/s CompliantThe LSI SAS 9200-16e features hot-pluggable, SATA-compatible SAS (Serial Attached SCSI) ports to provide 6Gb/s data transfer rates for optimum performance, efficiency, convenience and flexibility.
PCI Express 2.0 x8 InterfaceThe LSI SAS 9200-16e features the PCI Express 2.0 x8 interface which provides sufficient throughput and full-duplex operation for enhanced performance.
Learn more about the LSI LSI00189
Model
Brand
LSI
Model
LSI00189
Details
Type
SATA / SAS
External Connectors

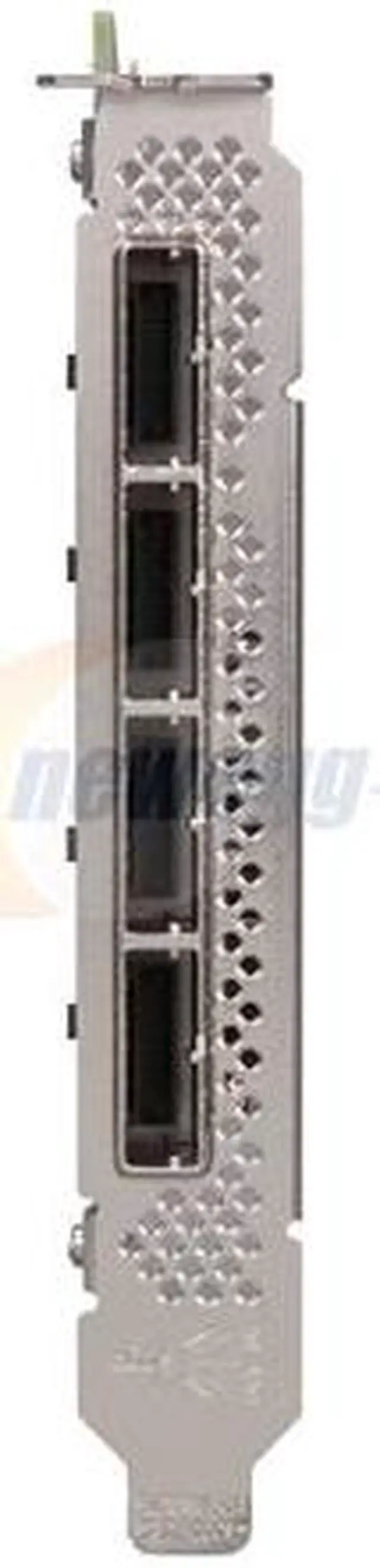

4 x SFF-8088 mini-SAS
Interface
PCI-Express 2.0 x8
Transfer Rate
Up to 6Gb/s
Features
Features
Fusion-MPT architecture can achieve more than 290,000 I/Os per second PowerPC 440 @533MHz RoHS compliant
