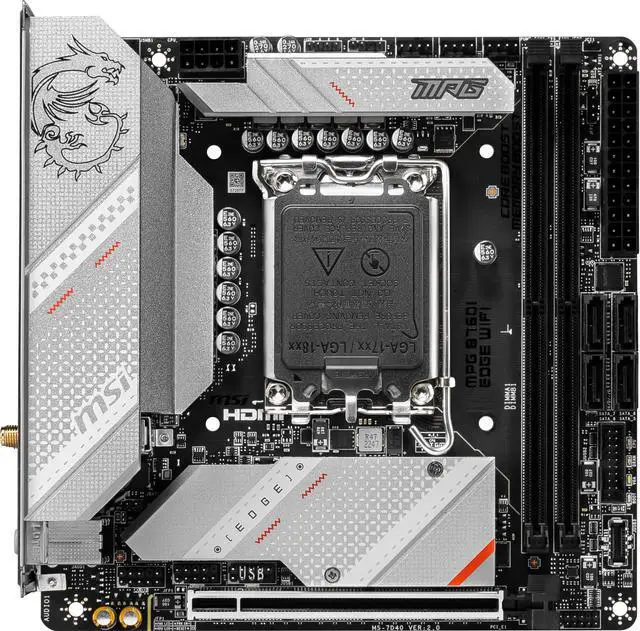

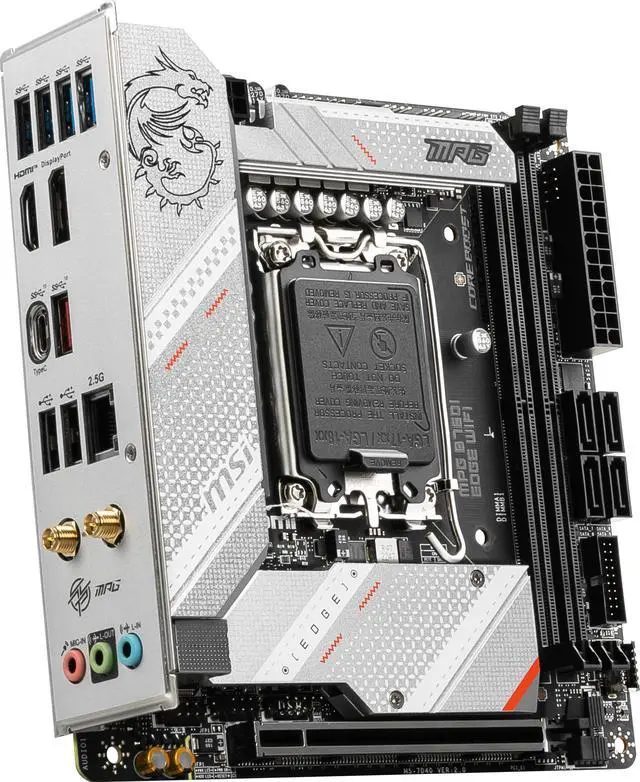

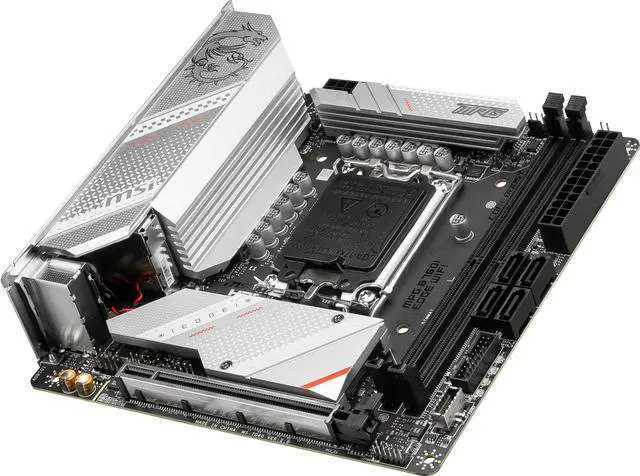

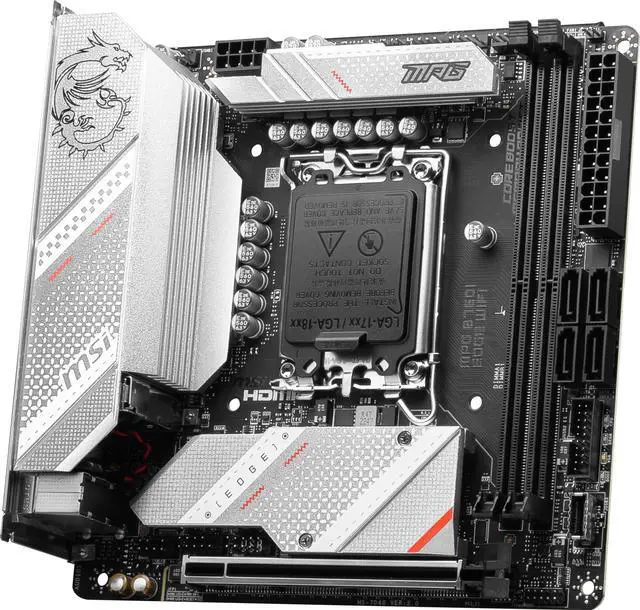

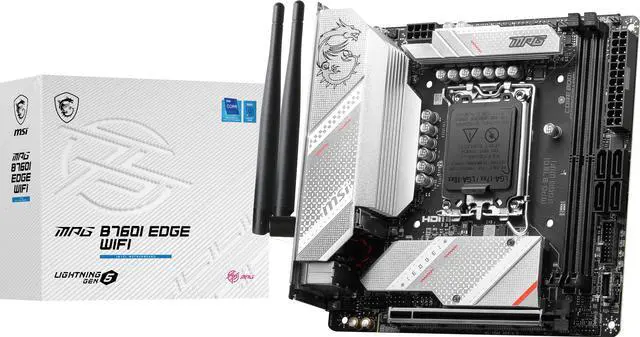

MSI MPG B760I EDGE WIFI LGA 1700 DDR5 Mini ITX Motherboard SATA 6Gb/s, 2.5Gbps LAN,Wi-Fi 6E

(139)(33) Write a Review
  • MAG B760 TOMAHAWK WIFI
  • MAG B760M MORTAR WIFI II
  • MPG B760I EDGE WIFI
  • MPG B760M EDGE TI WIFI
  • PRO B760M-A WIFI DDR4
  • PRO B760-P WIFI DDR4
  • PRO B760-P WIFI
  • PRO B760M-P DDR4
  • B760 GAMING PLUS WIFI
  • B760M PROJECT ZERO
  • PRO B760-VC WIFI IV DDR5
  • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
  • Supports Intel Core 14th, 13th, 12th Gen, Intel Pentium Gold, Celeron Processor for LGA 1700 socket
  • Duo M.2 Connectors: Onboard Duo M.2 connectors with dual PCIe 4.0 solution, strengthened by M.2 Shield Frozr.
  • Direct 8+1+1 phases with 90A SPS: Extreme direct power solution with 8+1+1 phases and 90A Smart Power Stage unleash the maximum CPU performance.
  • Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
  • Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
  • Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
  • 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
+
+
Specs
Reviews (139)

Learn more about the MSI MPG B760I EDGE WIFI

Model
Brand MSI
Model MPG B760I EDGE WIFI
Supported CPU
CPU Socket Type LGA 1700
CPU Type Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipsets
Chipset Intel B760
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 7200+ MHz
- 1DPC 2R Max speed up to 6600+ MHz
Maximum Memory Supported 96GB
Channel Supported Dual Channel
Memory Feature Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express 5.0 x16
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 1 x Key M (CPU PCIe) + 1 x Key M (PCIe/SATA) + 1 x Key E (WiFi/BT)

2 x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 8 Channels
Onboard LAN
Wireless LAN Intel AX211
Rear Panel Ports

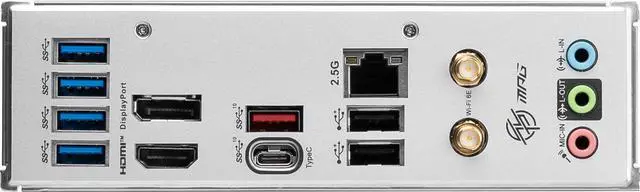

Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x USB 3.2 Gen 1 Type-A / 1 x USB 3.2 Gen 1 Type-C / 2 x USB 2.0/1.1 / 4 x USB 3.0
Physical Spec
Form Factor Mini ITX
Additional Information
First Listed on Newegg April 24, 2023
