Built-in HDBaseT provides simplified installations with a single cable for video, audio, and control signals
Whisper quiet operation for minimal distraction
Powerful 20W speakers provide volume needed for most large classrooms and conference rooms
4K Ready - Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip
Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education and corporate
MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network
+
+
Overview
Specs
Reviews

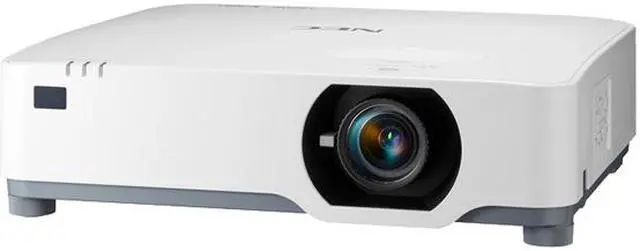

The NEC P525UL Entry Installation Series, LCD, laser projector combines advanced features at a budget conscious price making it ideal for higher education classrooms and corporate conference rooms. With 5200 center lumens, WXGA resolution and improved color fidelity the P Series delivers impressive images in demanding applications. Installation flexibility is achieved with lens shift, HDBaseT, a broad 1.6x zoom lens and tilt free capability. The 20,000 hour laser life and NEC's sealed optical engine creates a maintenance free projection solution.
20W Audio Powerful 20-watt speaker provides volume needed for large rooms.
Auto Power On Powers on the projector as soon as it is plugged into a power outlet.
Built-in Wall Color Correction Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Cornerstone Correction Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Direct Power Off Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dust-Resistant Design Sealed optical block minimizes the effects of dust, helping to ensure the delivery of crisp, distortion-free images.
Landscape/Portrait Capable Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode Ability to install a projector in its side to create a 10:16 portrait image.
Quick Startup and Quick Power-Off Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
Tilt-Free Installation Allows the projector to be rotated freely (360 deg. ) in order to point up or down depending on the installation requirements.
Variable Audio Out Adjusts the volume of an external speaker system using the projector's remote control.
Wired Network Connection Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
Advanced AccuBlend Ensures detailed images when non-native resolution sources are connected to the projector.
AutoSense Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Carbon Savings Meter Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
Crestron Roomview Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Dual HDMI inputs (with HDCP) Ensure quick switching between presentations and allows
Learn more about the NEC Display Solutions NP-P525UL
Model
Brand
NEC Display Solutions
Model
NP-P525UL
Details
Cabinet Color
White
Type
LCD
Display
Brightness
5200 lm
Native Resolution
WUXGA 1920 x 1200
Maximum Resolution
4K 30Hz (3840x2160)
Aspect Ratio
16:10
Contrast Ratio
500,000:1 with Light Adjust
Display Size
25" to 300"
Horizontal Refresh Rate
15 to 100KHz (RGB: 24kHz or over)
Vertical Refresh Rate
50-120 Hz
Lens
Lens
Zoom: 1.6 Focus: Manual F number, fnumber: F=1.5-2.1 / f=17.2-27.6mm
Throw Ratio
1.23-2.0:1
Throw Distance
2.6 - 44.3 ft. / 0.8 - 13.5m
Projection Methods
Front
Keystone Correction
+/- 30° horizontal, +/- 30° vertical
Lamps & Accessories
Lamp
Laser/Phosphor
Lamp Life
20,000 hours
Connectivity
USB
Yes
Convenience
Features
4K Ready
Manual keystone correction
Wireless LAN
USB Viewer
Auto power on
ECO Mode technology
Variable audio out
Carbon savings meter
Virtual Remote
Picture-in-Picture
Built-in wall color correction
Advanced AccuBlend
AutoSense
Compatibility
Signal Compatibility/Connectivity:
Supported Video Standards: NTSC3.58/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM
SD/HD Video Signal Compatibility: 4K, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility: VGA, SVGA, XGA, WXGA, Quad-VGA, SXGA, SXGA+, WXGA+, WXGA++, WSXGA+, WUXGA
